SPECIFICATIONS
Stock Number: GPMA1154


Parts Layout
ElectriFly supplies everything needed to complete assembly in as little as ten hours — including a generous hardware package, two props, prop adapters, machined aluminum prop hubs and photo-illustrated instructions. Two spare bubble observation canopies are also provided.



included cradle

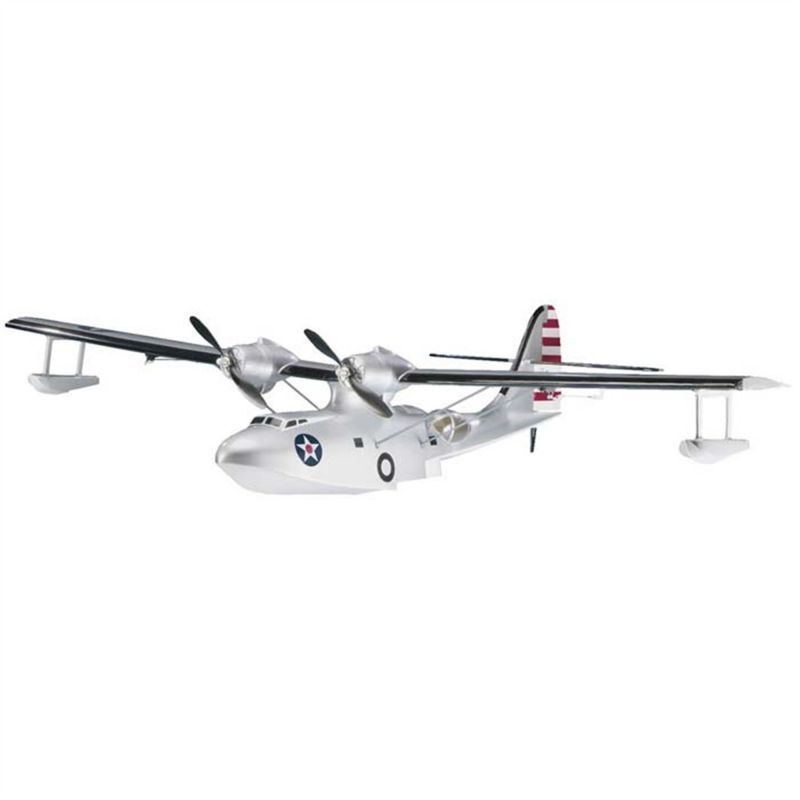

In addition to the prebuilt main structures of high-quality fiberglass and wood — factory-finished in an attractive scale trim scheme — the PBY Catalina ARF includes this handy cradle that's ideal for shoreside model maintenance.



battery hatch
This easy-access hatch on the top of the PBY Catalina ARF fuselage provides quick access to the battery compartment for pack installation or removal. A LiPo flight battery offers the high voltage and low weight needed for exceptional flight performance.



spacer motor
The PBY Catalina packs a lot of performance into its small size. Twin outrunner brushless motors provide a great power-to-weight ratio for effortless water takeoffs.



hardware
ElectriFly includes a generous package of lightweight, easy-to-install hardware engineered for precise control response. This ARF also comes with two props, prop adapters, machined aluminum prop hubs, and two spare bubble observation canopies.



spacer Servos
The PBY Catalina ARF can be ready-to-fly after as little as ten hours of simple assembly. Servos install easily and connect to the control surfaces with the provided, high-quality hardware. The wing can be removed for transporting the model to your flying site.



Hull, floats & water rudder
The hand-crafted fiberglass hull, molded ABS tip floats, and removable water rudder provide excellent handling on the water during taxiing, takeoff, and landing. A rubber plug in the fuselage allows easy water drainage if needed (a spare plug is also included).



spacer



Wingspan: 53.5 in (1360 mm)
Wing Area: 395 in² (25.5 dm²)
Weight: 3-3.25 lb (1.36-1.47 kg)
Wing Loading: 18-19 oz/ft² (55-58 g/dm²)
Length: 34.25 in (870 mm)
Requires: 4+ channel radio w/4 micro servos, two 950kV brushless outrunner motors, two 25A brushless ESCs, 11.1V 2100-3200mAh LiPo battery

SKU GPMA1154
Barcode # GPMA1154
Brand GREAT PLANES
Shipping Weight 4.0000kg
