Description

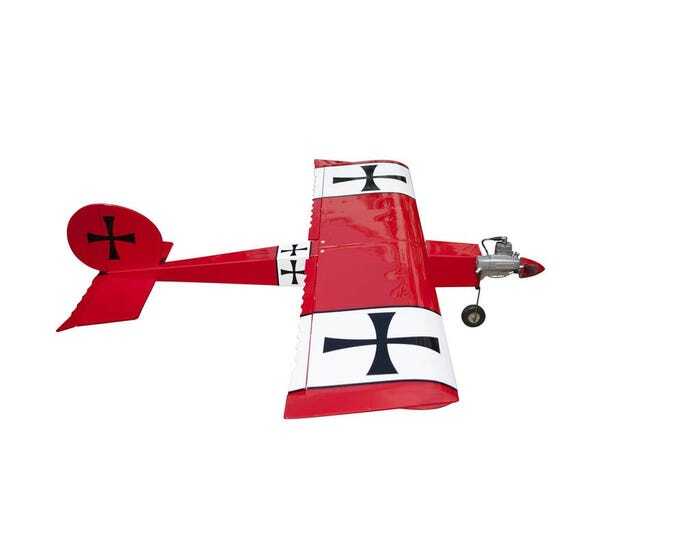

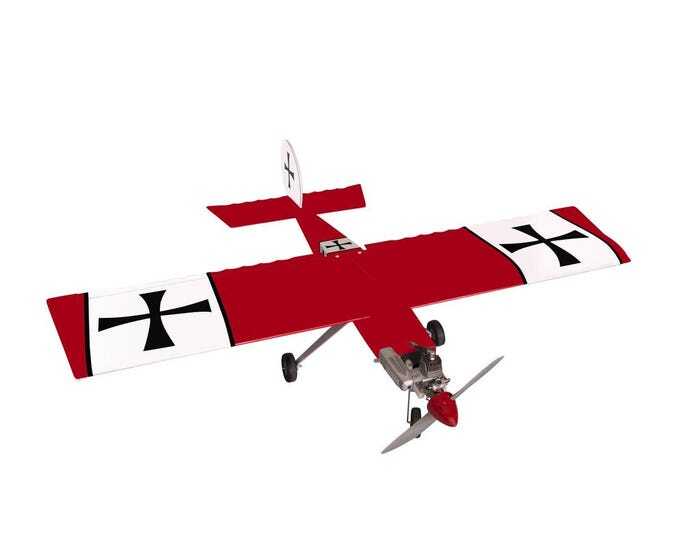

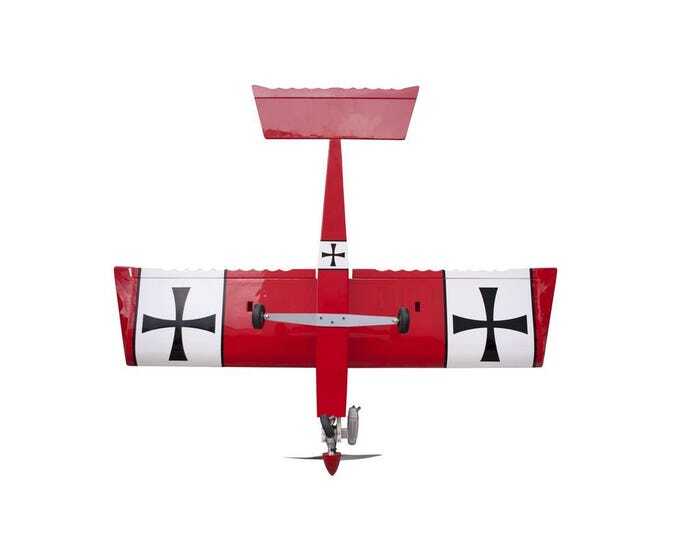

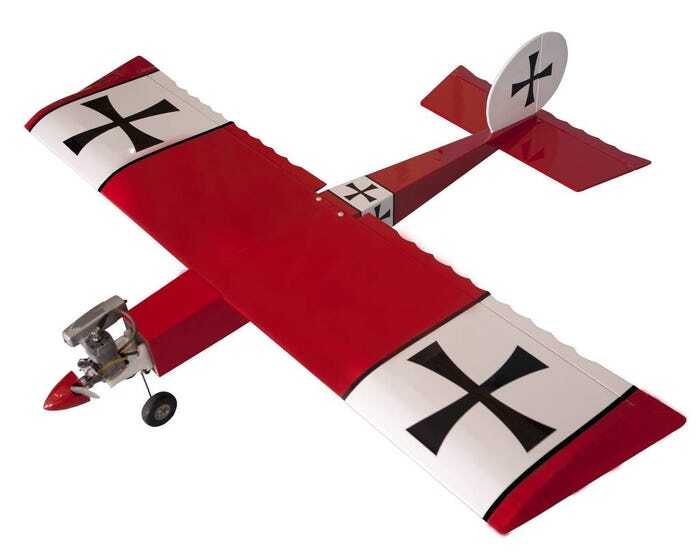

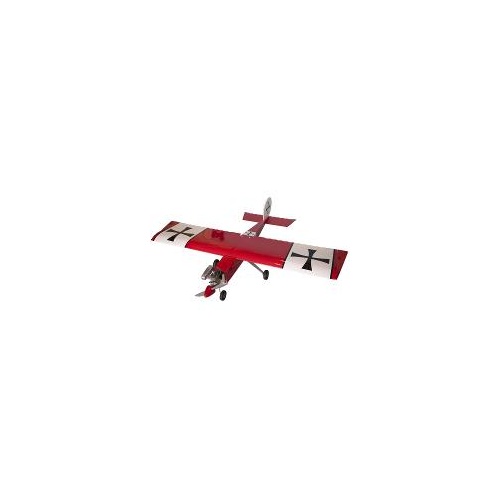

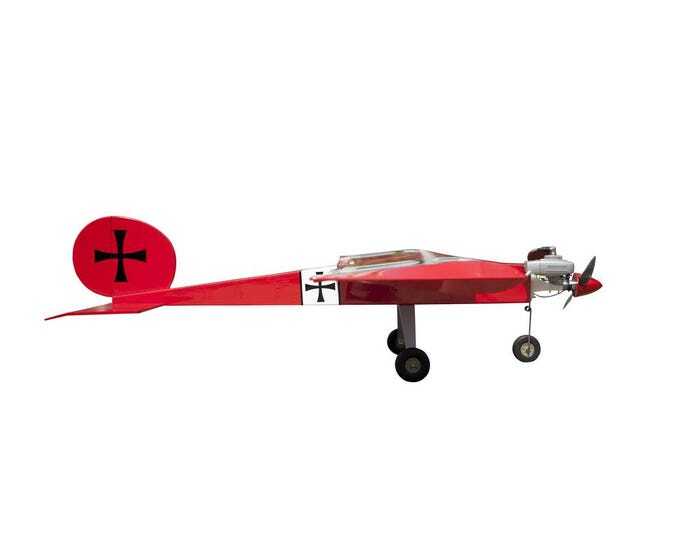

The CLASSIC UGLY STICK 71 inches was designed with the sports trainer flyer in mind. It is a High-wing aeroplane which is easy to fly and quick to assemble. The airframe is conventionally built using balsa, plywood and veneer to make it stronger than the average ARTF , yet the design allows the aeroplane to be kept light. You will find that most of the work has been done for you already. The pushrods are pre-made to the correct lengths, the motor mount has been fitted and the hinges are pre-installed and pinned for security. Flying the CLASSIC UGLY STICK 71 inches is simply a joy. This instruction manual is designed to help you build a great flying aeroplane. Please read this manual throughly before starting assembly of your CLASSIC UGLY STICK 71 inches

Overview

The "Ugly Stick" is a valued design and has been enjoyed by many in the RC airplane hobby for decades! The design scales well from small "Park Flyers" to "Giant" scale airplanes.The Seagull Classic Ugly Stick 1800 mm model delivers strong sport performance using gasoline engine power or glow engine, and electric power conversion. It has a strong balsa and plywood construction airframe, however, it is not a heavy plane. It is a great sport aerobat airplane and is covered in genuine oracover with pre-cut decals.

Features

  • Covered and Trimmed in Genuine Oracover with Precut Decals
  • High quality balsa and balsa plywood, these make light weight construction
  • Improved counterbalanced rudder for more dynamic flight
  • Great sport aerobat airplane
  • Delivers strong sport performance using gasoline engine power or Glow engine and Electric Power conversion
  • Its strong balsa/ply airframe
  • A motor mount, battery mount and all other necessary hardware is included, so you can fly eletric right from the start
  • All Necessary Hardware and Accessories Included






Product Information

The "Ugly Stick" is a valued design and has been enjoyed by many in the RC airplane hobby for decades! The design scales well from small "Park Flyers" to "Giant" scale airplanes.The Seagull Classic Ugly Stick 1800 mm model delivers strong sport performance using gasoline engine power or glow engine, and electric power conversion. It has a strong balsa and plywood construction airframe, however, it is not a heavy plane. It is a great sport aerobat airplane and is covered in genuine oracover with pre-cut decals.

All the necessary hardware and accessories are included as well as an electric conversion with a motor mount and battery mount. This plane is suitable for nitro engines .60 to.75 or for gasoline/petrol 10cc to 15cc.

Specs

Experience level
Intermediate and advanced pilots
Wingspan
180 cm / 70.9 in
Wing area
66.7 sq.dm / 1033.2 sq.in
Overall length
146.8 cm / 57.8 in
Flying weight
3.5 kg / 7.7 lbs
Power system
Nitro 2-stroke .61-.75 or 4-stroke .82-.91 or gasoline 10-15 cc, or electric
EP conversion
Included
Radio
4 channels
Servos
5
CG (Centre of Gravity)
100 mm backwards from the leading edge of the wing at the wing root
Color scheme
Red
Assembly time (approx.)
10 to 15 hours

Specifications

CLASSIC UGLY STICK 10-15cc gasoline engine. Wingspan …………………………… 70.9 in (180 cm) Wing area …………………………… 1033.2 sq.in (66.7 sq.dm) Approximate flying weight …….. 7.7 lbs (3.5kg) Length ………………………………… 57.8 in (146.8cm) Recommended engine size …….. 10cc-15cc. ELECTRIC CONVERSION INCLUDED. Radio system required 4 channels with 5 servos. Flying skill level intermediate/advanced. ITEM CODE: SEA255

KEY FEATURE

* Covered and Trimmed in Genuine Oracover with Pre-cut Decals. * High quality balsa and balsa plywood, these make light weight construction. * Improved counter-balanced rudder for more dynamic flight * Great sport aerobat airplane * Delivers strong sport performance using gasoline engine power or Glow engine and Electric Power conversion. * Its strong balsa/ply airframe * A motor mount, battery mount and all other necessary hardware is included, so you can fly eletric right from the start. * All Necessary Hardware and Accessories Included

SKU SEA-255R
Barcode # 2000000003160
Brand Seagull Models
Shipping Weight 5.0000kg
Shipping Width 1.220m
Shipping Height 0.250m
Shipping Length 0.450m
Shipping Cubic 0.137250000m3
