Overview

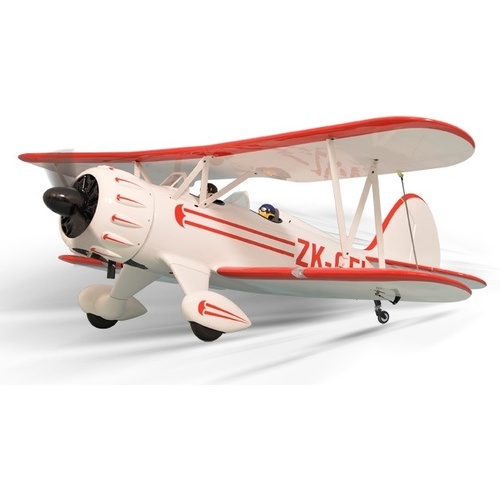

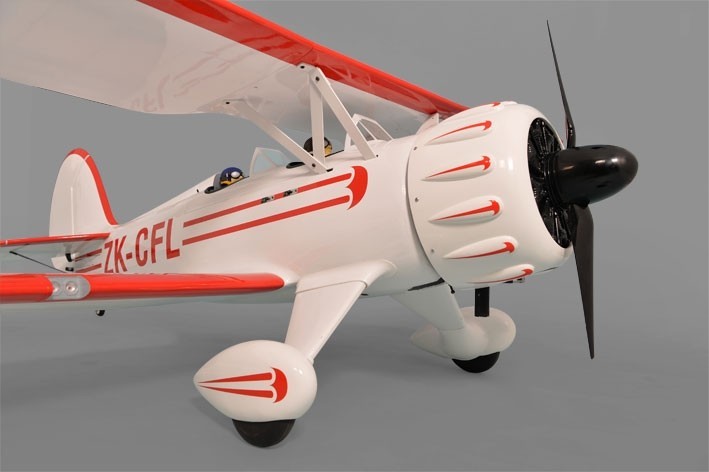

When you put a WACO in the air, you launch a piece of aviation history. These biplanes have taken aviators into the skies since the thirties and their as stable, as reliable, and as attractive today as they were in the golden age of aviation. This Phoenix Model version is every bit as fun to fly as the original and it’s available as an easy-to-build ARF.

Features

  • Superb flying characteristics, plus an accurate scale outline
  • Scale Pilot figure (included)
  • Heavy Duty Aluminum Landing gear (included)

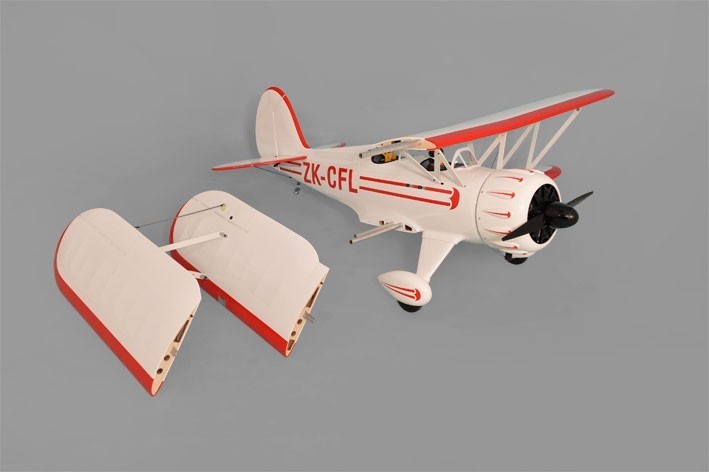

  • Two pieces Wing: Making assembly and transport super convenient
  • Designed for compatibility with both GP and EP flight
  • High quality hardware package included
  • Covered in genuine ORACOVER®
  • Detailed instrument panels
  • Removable hatch for easy set up radio
  • Top quality balsa/light plywood construction
  • Product Information

    What's in the box?

    • Waco 50-61cc Gas EP ARF

    • Prebuilt Wing

    • Tail and Fuselage sections

    • Landing Gear

    • Wheels

    • Spinner

    • Decals

    • Hardware

    • Product Manual

    What you need

    • 8+ channel radio
    • Servos: Five high torque (2-aileron, 2-elevator, 1-rudder) and One standard servo for throttle if using gasoline engine
    • Building and field equipment

    Electric Power

    • Brushless Motor
    • Electronic Speed Control
    • LiPo Battery: Two 6S Battery
    • Charger: Compatible with selected battery
    • Propeller: To match selected motor

    Gasoline Power

    • Engine: 50-61cc two stroke
    • Receiver Battery: Two 6.0V, at least 2400mAh
    • Propeller: To match selected engine
    • Specs
      Wingspan
      2300mm (90.5 in)
      Length
      1873mm (73.7 in)
      Flying weight
      12.5 kg-13.5 kg
      Wing area
      162.5 dm2
      Wing loading
      76.9g/dm2
      Wing type
      Naca airfoils
      Spinner size
      95mm scale type (included)
      Radio
      8 channel minimum (not included)
      Servo
      6 standard with hi-torque servo2 aileron; 2 elevator; 1 rudder; 1 throttle (not included)
      Recommended receiver battery
      6.0V 2400/2600mAh NiMH (2) (not included)
      Servo mount
      21mm x 42 mm
      Propeller
      suit with your engine
      Engine
      50- 61 CC gas engine (two stroke) (not included)
      Motor
      brushless outrunner 2600-3000 W, 190 KV (not included)
      Experience level
      Intermediate
      Plane type
      Bipe plane
      RECOMMENDED MOTOR AND BATTERY SET UP
      Motor
      Rimfire 50cc (not included)
      Propeller
      22x8 to 26x10 (not included)
      Lipo cell
      12S LiPo (not included)
      Esc
      120 Amp (not included)

SKU PHN-PH173
Brand Phoenix Model
Shipping Weight 12.0000kg
