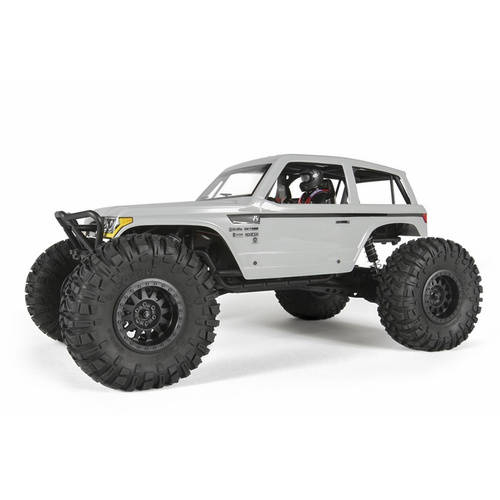

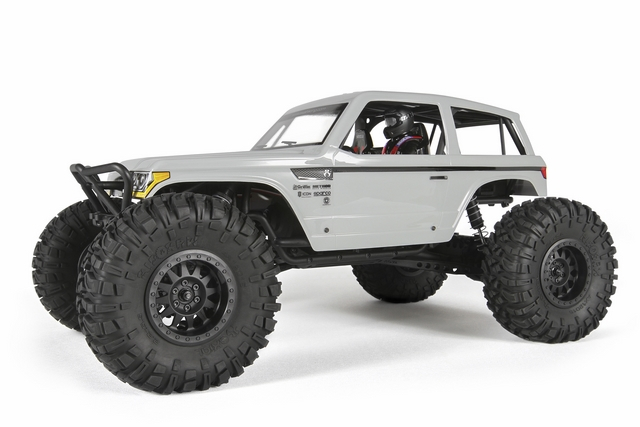

AX90045 AXIAL 1/10 EP 4WD WRAITH SPAWN RTR

The Axial WraithTM Spawn is packed with performance features. This full bodied version Wraith retains many of the components that made this vehicle famous. The virtually bulletproof AR60 OCP axles are ready take the Spawn through its paces whether blasting through the wide open desert or hammering its way through the toughest rock trails. The RipsawTM  2.2 tires are a proven true grip standard, wrapped around industry proven Method IFDTM beadlock wheels. Whether you are rock racing or just backyard bashing, the WraithTM Spawn is ready for action.

AXIAL WRAITH ROCK RACER The WraithTM Spawn is ready for rock spitting, dirt slinging, action. It's designed to tackle the rocks with ease and blast across open desert at full attack speed. The bottom line, the Wraith is tough as nails and prepared for any terrain.

FULL TUBE FRAME COMPOSITE CHASSIS The WraithTM Spawn 1/10th Scale Electric 4WD Rock Racer features a realistic full tube-frame chassis design that is manufactured with high strength composite materials. The Wraith IS BUILT TO GO FAST and is not just a low speed rock crawler.

NOTICE: The Wraith Spawn includes a number of features that are either waterproof or water resistant. Do not run your product in water or snow or submerge it in water without fully waterproof gear. More information about waterproofing can be found on the Axial Website

FEATURES

2.2 RIPSAWTM TIRES The Axial 2.2 RipsawTM tire offers both a realistic and aggressive tread design for the ultimate scale appearance and performance.

METHOD IFDTM BEADLOCK WHEELS Officially licensed Method 12 spoke beadlock wheels dressed in an aggressive all black style are easy to assemble and they work with most 2.2 tires.

The hub design allows this wheel to mount to any Wraith, AX10 Ridgecrest or SCX10.

Our IFD(Interchangeable Face Design) wheel system makes it easy to dress it up with a new look. Three piece beadlock design utilizes new 2x11mm pins for added strength.

Updated plastic hub adapter to eliminate slop and capture the new 2x11mm pin.

Adjustable breather holes for fine tuning tire performance.

Compatible with most 2.2 tires  Easy six screw disassembly

WB8 HD WILDBOAR DRIVESHAFTS

The WB8 HD front and rear driveshafts features an updated design with a larger diameter cross pin (2x11mm) along with an M4 Screw Shaft (2mm hex drive) for added strength.

A center splined slider floats between each end and features added material which reduces flex and fatigue.

3-piece driveshaft with strengthened slider-floater tube.

Increased surface at the connection between the ball joints and output shaft tubes.

2x11mm cross pin adds 25% more surface area providing more strength for the ball joint.

Captured cross pin design eliminates older set screw design for more durability and easy maintenance.

RECEIVER BOX, WATERPROOF

The waterproof receiver box utilizes three different silicone seals: one for the antenna, one for the servo wires (includes three slots for three channels), and one acts as a gasket for the receiver box cover. No more stress when running in mud, water, or snow!

DUAL SLIPPER CLUTCH

Our dual slipper design uses a pad on each side of the spur gear for added surface area. This allows for more precise tuning and holding power. The spur gear features strong, 32 pitch gearing for high torque applications.

REALISTIC SCALE DETAILS

The Wraith Spawn includes a realistic driver figure complete with a race suit and three interchangeable helmets. A motocross, open skull-face or motorsport version of the helmet are included. Choose your favorite style! And, the Spawn body is compatible with Wraith, AX10 and SCX10 chassis.

AXIAL AR60 OCP-AXLE (OFF-CENTER PUMPKIN DESIGN)

True 4-wheel drive locked differentials are included for improved traction and an offset pumpkin provides more ground clearance and a better driveshaft angle. Additionally, the rear axle has been shaved of any unnecessary items and steering linkages that normally stick down have been removed for as much ground clearance as possible. The AR60 OCP-Axle is constructed from high strength composite material which has a low flex rate but is not as brittle as standard glass filled nylon. The AR60 OCP-Axle tubes are reinforced and beefed up with a boxed-in axle truss to distribute stress over a larger area. The combination of our axles and a true 4-link suspension gives you optimal performance for any terrain with the look of a real 1:1 vehicle. A locked differential provides the most positive wheel traction in all off-road environments and conditions and requires less maintenance over oil-filled or silicone based differentials. These are easily serviced by removing four screws to gain access for rebuilding and performance tuning as well.

4-LINK SUSPENSION

The suspension geometry utilizes a 4-Link design which is optimized to reduce axle steer and to have the proper amount of anti-squat and roll characteristics. The 4-Link system also aids against suspension wrap-up in high power applications.

TUNED, OIL FILLED SHOCKS

Finding the right spring rate can be tough. Axial made it easy for you by including what we found to be the right balance of high speed and harsh terrain handling. The softer spring rate keeps the Wraith on course and ready for your next obstacle!

THE MOST VERSATILE PLATFORM

The Axial Wraith changes the game with its impressive 1:1 scale looks, high-speed monster truck "bashability," and technical "crawl" capabilities. The Wraith is the most versatile vehicle satisfying the needs of a wide range of enthusiasts.

20T MOTOR

Tear up the terrain, be it flat out desert, rocky roads or crawling! Easy operation: no tuning, no fuel, no loud exhaust noise. Just plug'n'go! Our design allows for optional 550 size motors to fit as well.

AE-5 ESC, WATERPROOF

The Axial AE-5 ESC is 3S LiPo capable yet easily switched “in the field” between LiPO and NiMh battery types with a simple jumper no more complex procedures.
Jumper 1 provides a simple plug and play choice between LiPo or NiMh.
 Jumper 2 switches Drag Brake settings.
Waterproof design with waterproof On/Off switch / standard plug / laser etched heat sink.

3-CHANNEL 2.4GHz RECEIVER

The AR-3 2.4 GHz receiver uses no crystals so you'll experience worry free driving with no frequency conflicts. This lightweight, compact, and bind button equipped receiver with LED indicator makes setup easy!

2.4GHz RADIO FOR WORRY-FREE DRIVING

The AX-3 2.4GHz transmitter is a two channel, pistol grip radio with servo reversing switches for steering and throttle, trim dials for fine tuning steering and throttle centers. The battery indicator light also lets you know when your transmitter batteries run low.
METAL GEAR TACTIC SERVO, 151 oz-in, WATER RESISTANT The included Tactic TSX45 metal gear servo is rated at 151 oz-in of torque for massive turning power and dual ball bearings provide smooth and precise movement for the metal gear train.

PROTECTIVE TRANSMISSION COVER

Helps keep dirt and debris out of your pinion and spur gear for a quiet and efficient drive train.



SKU AX90045
