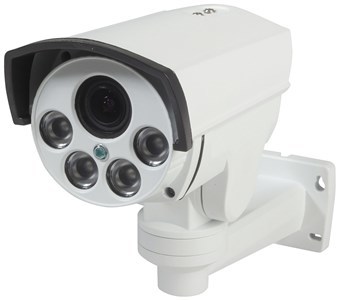

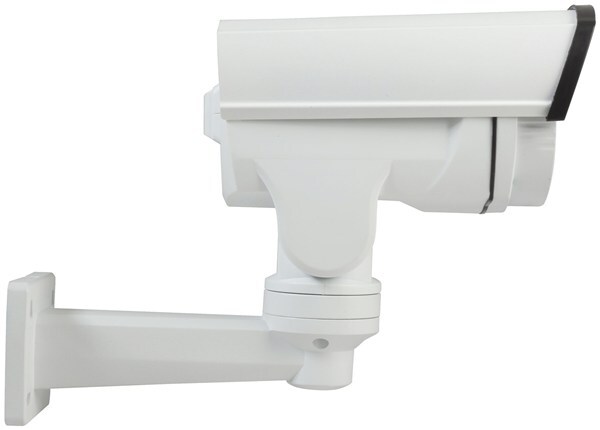

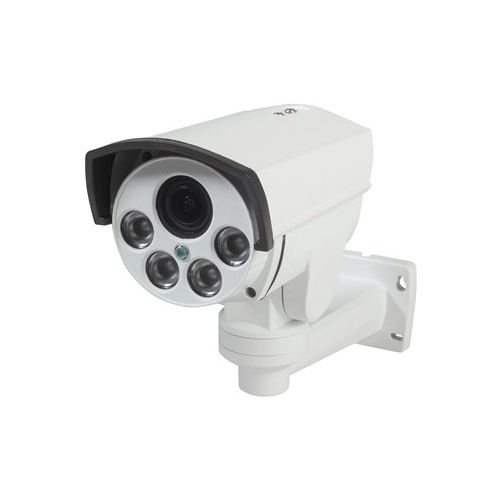

This Pan-Tilt-Zoom bullet camera utilises a Sony® CMOS sensor which delivers 1080p high quality resolution video. Allows you to control the Pan-Tilt-Zoom camera directly from the DVR or associated smartphone app using our 1080p DVRs. This unit communicates by RS-485 which connects directly to the DVR with the included cable to control the 270° total panning and 65° tilt angle. Other functions include Up-The-Coax (UTC)

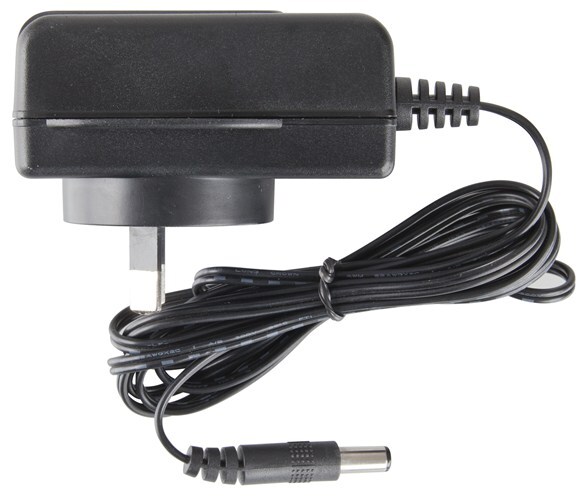

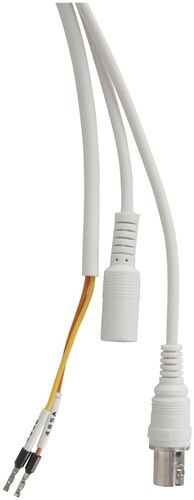

and 4 high powered infrared array LEDs that give up to a 50m night vision range. Includes a 18m video, power & RS-485 cable, mains power adaptor and mounting hardware.

Specifications:
Camera Type: AHD/TVI/CVI/CVBS (Analogue)
Image Sensor: 1/2.9” CMOS Sony® IMX323
Resolution: 1080p (1920 x 1080)
Megapixels: 2.0
Frame Rate: 25fps
Lens: 2.8-12mm
Lens Angle: 32°-104°
Pan Angle: -135° – 135° (270°)
Tilt Angle: -5° – 60° (65°)
Zoom: 4 x Digital
Infrared: 4 x IR Array LEDs
Infrared Range: Up to 50m
Min Illumination: 0.01 Lux (IR On)
IP Rating: IP66
PTZ Connection: RS-485
Power: 12VDC, 1.5A
Power Consumption: 125mA
Dimensions: 245(L) x 170(H) x 97(W)mm (Including Bracket)
SKU AM-QC8676
Model # QC8676
Barcode # 9319236713501
