10A Panel Mount Thermal Circuit Breaker (CBE)
More info
IEC 934 TYPE R/TO

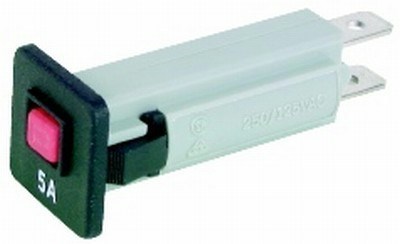

These attractive looking units feature a black 19mm square facade with a centrally mounted bright red `trip' button.
- When tripped, the red button extends.
- To reset simply push button back in (once fault has been cleared).
- Slow response time ideal for inductive/reactive loads.
Specifications:
Hold Current: 100% load indefinately
Trip current:
...within 1 hour @ 135% load
...within 1 min. @ 200% load
Input: 32VDC, 125VAC & 250VAC
Dielectric Strength: 1500VAC 1 Minute
Contact Endurance: >500 cycles @ 150% of contact rating.
Contact Rating: 10A
Contact Resistannce: 0.015ohms
These attractive looking units feature a black 19mm square facade with a centrally mounted bright red `trip' button.
- When tripped, the red button extends.
- To reset simply push button back in (once fault has been cleared).
- Slow response time ideal for inductive/reactive loads.
Specifications:
Hold Current: 100% load indefinately
Trip current:
...within 1 hour @ 135% load
...within 1 min. @ 200% load
Input: 32VDC, 125VAC & 250VAC
Dielectric Strength: 1500VAC 1 Minute
Contact Endurance: >500 cycles @ 150% of contact rating.
Contact Rating: 10A
Contact Resistannce: 0.015ohms
(AM-SF2300)
| SKU | AM-SF2300 |
| Model # | SF2300 |
| Barcode # | 9319236837320 |
