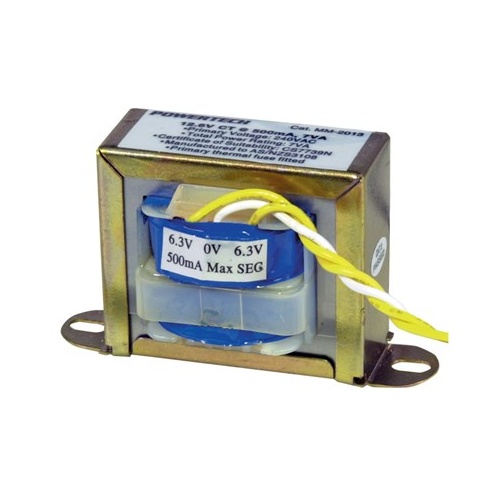

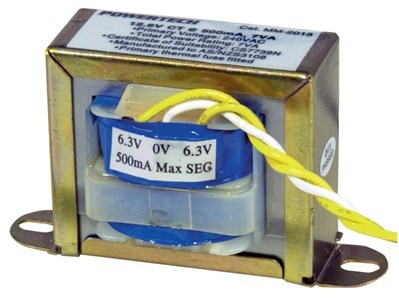

12.6V CT, 7VA 500mA Centre Tapped - Type 2853 Transformer
More info
Specifications
12.6 CT, 7VA, 500mA Centre Tapped
Type: 2853

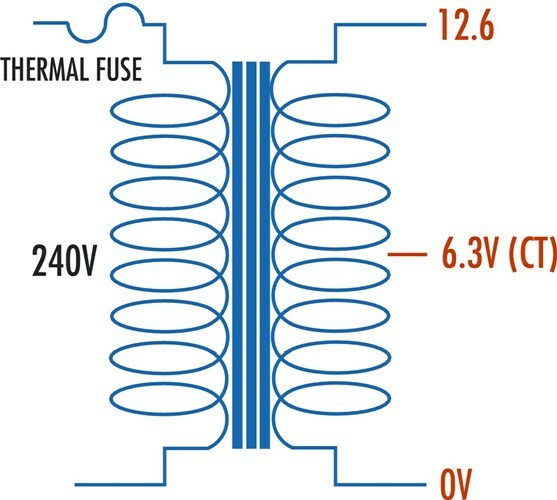

Secondary winding(s): Centre tapped
Primary voltage: 240VAC
Total VA rating: 7VA
Secondary voltages: 12,6V, 6.3V(CT)
Secondary current (max): 500mA
Magnetising current:: 40mA
Temp rise above ambient at rated power: 40°C
Regulation: 10%
Weight: 310g
Primary connection 200mm Fly Leads
Secondary connection 200mm Fly Leads
Conforms to AS/NZ 3108 & AS/NZ 61558.2.6 TBA

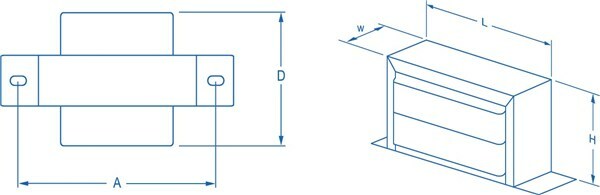

Dimensions(mm) A61 D38 L51 W20 H43
Energy Authority Certificate of Suitability No. CS:7739N
12.6 CT, 7VA, 500mA Centre Tapped
Type: 2853
Secondary winding(s): Centre tapped
Primary voltage: 240VAC
Total VA rating: 7VA
Secondary voltages: 12,6V, 6.3V(CT)
Secondary current (max): 500mA
Magnetising current:: 40mA
Temp rise above ambient at rated power: 40°C
Regulation: 10%
Weight: 310g
Primary connection 200mm Fly Leads
Secondary connection 200mm Fly Leads
Conforms to AS/NZ 3108 & AS/NZ 61558.2.6 TBA
Dimensions(mm) A61 D38 L51 W20 H43
Energy Authority Certificate of Suitability No. CS:7739N
(AM-MM2013)
| SKU | AM-MM2013 |
| Model # | MM2013 |
| Barcode # | 9319236023860 |
