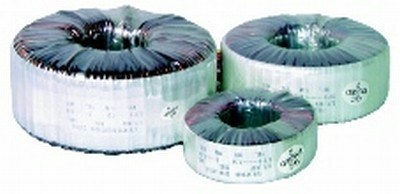

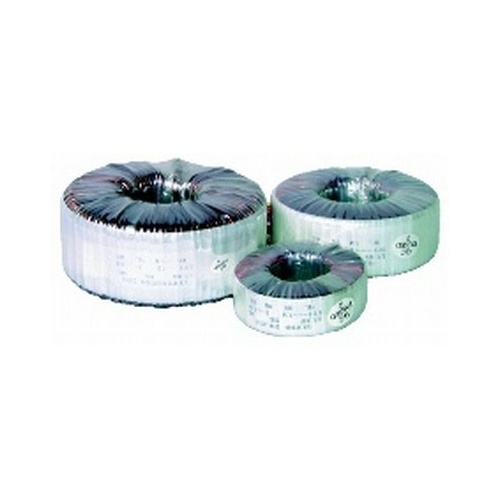

WHY A TOROID?
- Smaller size and weight to meet modern slimline requirements
- Low electrically induced noise demanded by compact equipment
- High efficiency enabling conservative rating whilst maintaining size advantages
- Simple, quick, single bolt mounting
The Toroidal transformers is now accepted as the standard in the industry, quality mode to ISO 9000 overtaking the obsolete laminated type. Industry has been quick to recognise the advantage toroidals offer in size, weight, and lower radiated field.
Current ratins on toroidal transformers. Can be used in 2 ways:-
A) Both secondary windings in series - double volts
B) Both secondary windings in parallel - higher amps. The windings need to be connected in pahse.



20VA LOW PROFILE
The height is only 30mm, which means they will fit into a 44mm rack case.
- Size 0/D 74, I/D 21 x 30mm

Secondary Series Secondary Parallel
Cat. MT-2082 9+9 Volts 1.11 amps 2.22 amps
Cat. MT-2084 12+12 Volts 0.833 amps 1.66 amps
Cat. MT-2086 15+15 Volts 0.666 amps 1.333 amps



160VA TOROIDS
- Size 110 O/D x 50 I/D x 40(H)mm

Secondary Series Secondary Parallel
Cat. MT-2112 12+12 Volts 6.66 amps 13.33 amps
Cat. MT-2113 18+18 Volts 4.44 amps 8.88 amps
Cat. MT-2114 25+25 Volts 3.2 amps 6.4 amps


300VA TOROIDS
- Size 125 O/D x 54 I/D x 55(H)mm

Secondary Series Secondary Parallel
Cat. MT-2130 12+12 Volts 12.5 amps 25.0 amps
Cat. MT-2132 18+18 Volts 8.33 amps 16.6 amps
Cat. MT-2140 40+40 Volts 3.75 amps 7.5 amps
Cat. MT-2144 50+50 Volts 3.0 amps 6.0 amps

500VA TOROIDS
- Size 126 O/D x 27 I/D x 63(H)mm

Secondary Series
Cat. MT-2146 50+5 Volts 5 amps
SKU AM-MT2084
Model # MT2084
Barcode # 9319236040140
