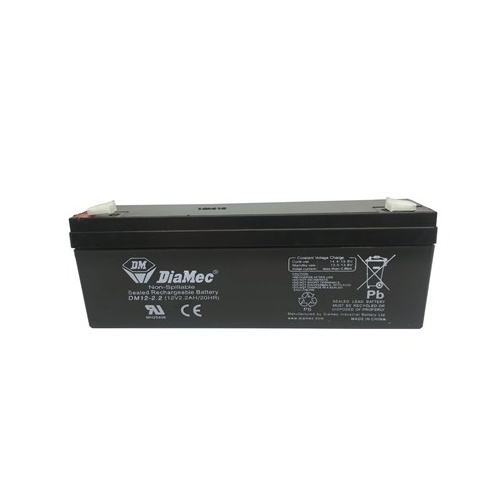

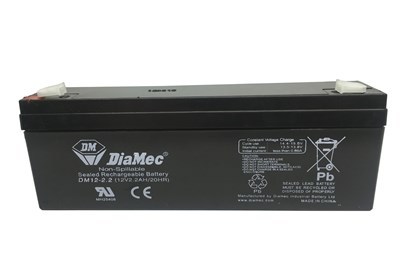

12V 2.2Ah SLA Battery
More info
Size: 178L x 34D x 66H
Charge current: 220 mA for 10-14 hours
Discharge current: 20 hour rate 110mA
Capacity:
• 20 Hr rate (110mA) 2.2 Ah
• 10 Hr rate (190mA): 1.9 Ah
• 5 Hr rate (350mA): 1.75 Ah
• 1 Hr rate (1320mA): 1.32 Ah
• Internal Resistance: (Fully Charged @ 20°C) 50 m Ohm
• Max Discharge Current: (5 sec.) 40Ah
Constant Voltage Charge:
• Initial charging current: >0.66A @ 14.4
• 15V @ 20°C.- Temp. coefficient: -30mV/°C
• Standby: 13.5 - 13.8V @ 20°C.
• Temp. coefficient: -20mV/°C
Charge current: 220 mA for 10-14 hours
Discharge current: 20 hour rate 110mA
Capacity:
• 20 Hr rate (110mA) 2.2 Ah
• 10 Hr rate (190mA): 1.9 Ah
• 5 Hr rate (350mA): 1.75 Ah
• 1 Hr rate (1320mA): 1.32 Ah
• Internal Resistance: (Fully Charged @ 20°C) 50 m Ohm
• Max Discharge Current: (5 sec.) 40Ah
Constant Voltage Charge:
• Initial charging current: >0.66A @ 14.4
• 15V @ 20°C.- Temp. coefficient: -30mV/°C
• Standby: 13.5 - 13.8V @ 20°C.
• Temp. coefficient: -20mV/°C
(AM-SB2482)
| SKU | AM-SB2482 |
| Model # | SB2482 |
| Barcode # | 9319236861011 |
