Versatile 4PDT relay suitable for switching loads up to 5A. Designed to suit the SY-4004 DIN rail mounting cradle. Can also be installed with direct connection using mini spade lugs.

Specifications:
• Rated coil voltage: 12VDC
• Coil current: 67mA
• Coil resistance: 180 ohms

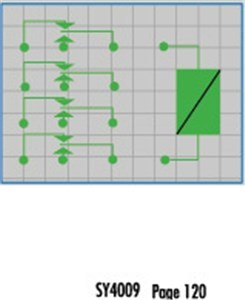

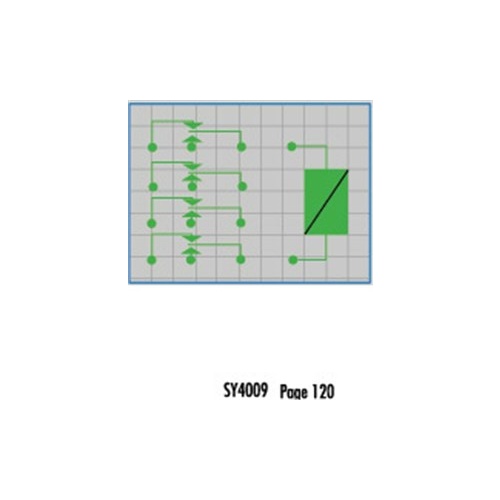

• Contact configuration: 4PDT
• Contact rating DC: 30VDC 5A
• Contact rating AC: 240VAC 5A (resistive load)
• Operate time: 25ms max
• Size: 27 x 20 x 35(H)mm

SKU AM-SY4009
Model # SY4009
Barcode # 9319236007396
