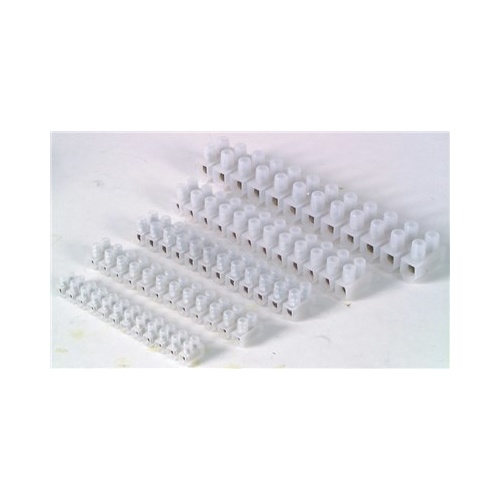

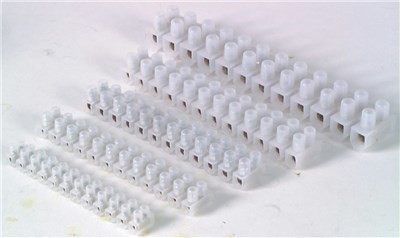

15 Amp 12-way Screw Terminal Strip

15 Amp 12-way Screw Terminal Strip

Improved models for 2009. Still 12 way & capable of being divided with a sharp knife, however, the screw retention is much sturdier. Each terminal block has a mounting hole on a fixed pitch.

Specifications:

• Material: Polyamide 66 (Nylon), UL94V-2 flame retardant
• Temperature: -35°C ~ 110°C
• Voltage: 250 - 450V
• Colour: Natural

Current Cable dia. Length Pitch Cat No.
6A 3.3mm 114.5mm 10mm HM-3194
10A 4.2mm 128.8mm 11mm HM-3196
15A 4.5mm 136.8mm 12mm HM-3200
30A 5.6mm 164.5mm 15mm HM-3198
60A 6.6mm 193mm 16.3mm HM-3204

Datasheet

(AM-HM3200)

SKU	AM-HM3200
Model #	HM3200
Barcode #	9319236013885
Shipping Weight	0.0500kg
