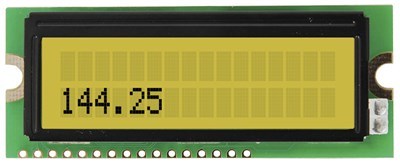

16 x 2 Alphanumeric Backlit LCD with SIL Connection
More info
This compact LCD module has 96 inbuilt ASCII characters as well as 92 special letters and 8 custom characters, which can be displayed on a 16 character by 2 line screen. The module will hold the current input on the display using its own built in memory, making it easy to drive. Connections via single in line solder pads with an independent backlight.
Specifications:
• Module size: 66 x 26 x 12mm
• Viewing area: 51 x 14.8mm
• Number of characters: 16 x 2 lines
• Supply voltage: 5VDC
• Power supply current: 2mA Duty:1/16
• Weight:22g
Specifications:
• Module size: 66 x 26 x 12mm
• Viewing area: 51 x 14.8mm
• Number of characters: 16 x 2 lines
• Supply voltage: 5VDC
• Power supply current: 2mA Duty:1/16
• Weight:22g
(AM-QP5512)
| SKU | AM-QP5512 |
| Model # | QP5512 |
| Barcode # | 9319236956915 |
