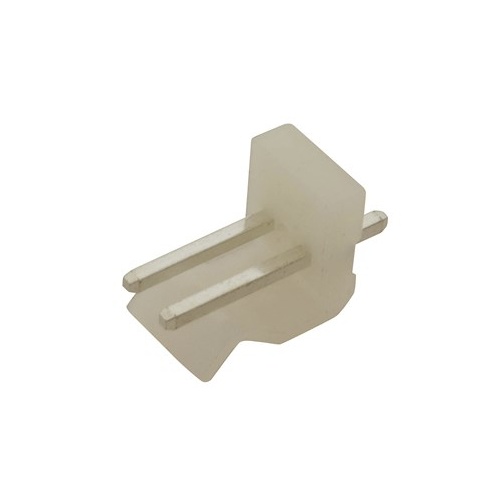

The contacts are rated at 250V @ 7A AC/DC which makes them an ideal power connector to a PCB. They are end to end stackable and commonly seen as the output connector on Switchmode power supplies.

- Technical Information
- Voltage: 250V
- Current: 7.0A
- Contact Resistance: 20 m Ohm max
- Dielectric Withstanding Voltage: 1500V
- Insulation Resistance: 500k Ohm min
- Contact Insertion Force: 2.28kg
- Contact Retention to Housing: 4.56kg
- Wire Pull- Out force: 2.85kg
- Mating Force: 0.86kg
- Unmating Force: 150g
- Durability: 25 cycles
- Housing: Nylon, UL 94V- 2
- Temperature: - 40 to 105°C
SKU AM-HM3442
Model # HM3442
Barcode # 9319236863107
