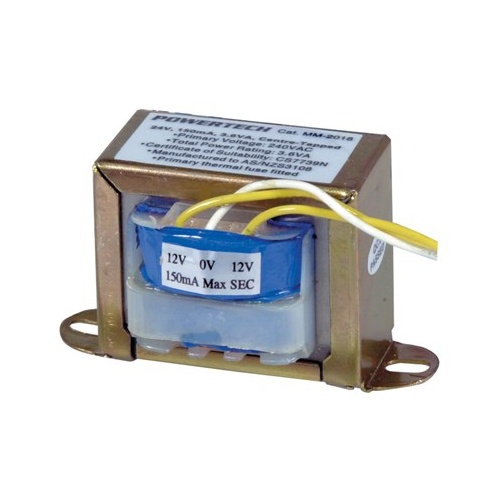

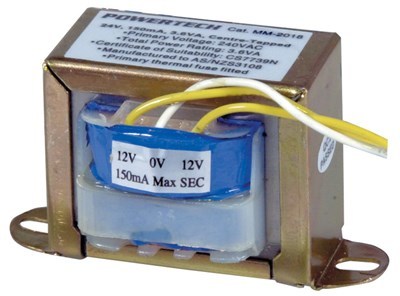

24V, 3.6VA 150mA Centre Tapped - Type 2854 Transformer
More info
Specifications
24V, 3.6VA 150mA Centre Tapped - Type 2854 Transformer
Type: 2844

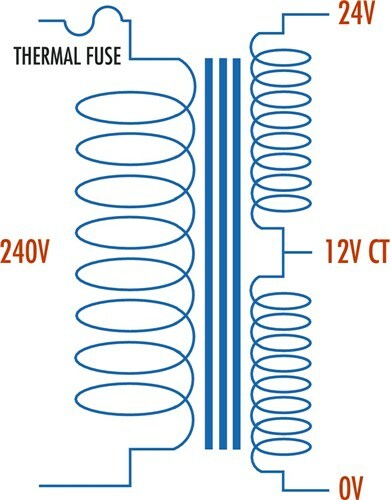

Secondary winding(s): Centre Tapped
Primary voltage: 240VAC
Total VA rating: 3.6VA
Secondary voltages: 24V, 12V (CT)
Secondary current (max): 150mA
Magnetising current:: 40mA
Temp rise above ambient at rated power: 65°C
Regulation: 12%
Weight: 230g
Primary connection 200mm fly Leads
Secondary connection 200mm fly Leads
Conforms to AS/NZ 3108 & AS/NZ 61558.2.6 TBA

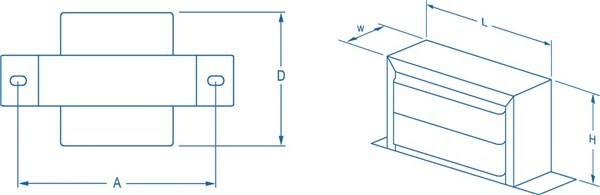

Dimensions(mm) A53 D41 L43 W22 H36
Energy Authority Certificate of Suitability No. CS:7739N
24V, 3.6VA 150mA Centre Tapped - Type 2854 Transformer
Type: 2844
Secondary winding(s): Centre Tapped
Primary voltage: 240VAC
Total VA rating: 3.6VA
Secondary voltages: 24V, 12V (CT)
Secondary current (max): 150mA
Magnetising current:: 40mA
Temp rise above ambient at rated power: 65°C
Regulation: 12%
Weight: 230g
Primary connection 200mm fly Leads
Secondary connection 200mm fly Leads
Conforms to AS/NZ 3108 & AS/NZ 61558.2.6 TBA
Dimensions(mm) A53 D41 L43 W22 H36
Energy Authority Certificate of Suitability No. CS:7739N
(AM-MM2018)
| SKU | AM-MM2018 |
| Model # | MM2018 |
| Barcode # | 9319236862612 |
