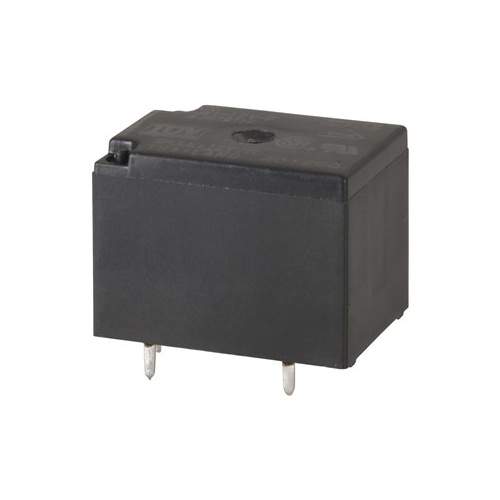

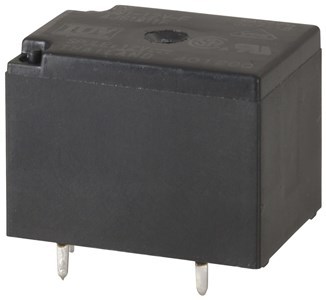

24V SPDT 10A Relay
More info
• Rated voltage: 24VDC
• Coil current: 15mA
• Coil resistance: 1,600 Ohms
• Contact rating: 10A
• Power consumption: 360mW
• Maximum switching current: 10A(AC) and 5A(DC)
• NO/NC contacts
• Dimensions: 22(L) x 16(W) x 16(D)mm
• Coil current: 15mA
• Coil resistance: 1,600 Ohms
• Contact rating: 10A
• Power consumption: 360mW
• Maximum switching current: 10A(AC) and 5A(DC)
• NO/NC contacts
• Dimensions: 22(L) x 16(W) x 16(D)mm
(AM-SY4067)
| SKU | AM-SY4067 |
| Model # | SY4067 |
| Barcode # | 9319236435847 |
