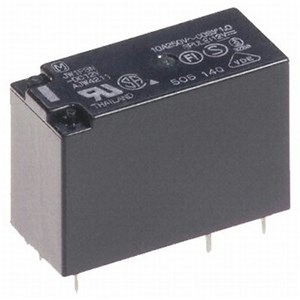

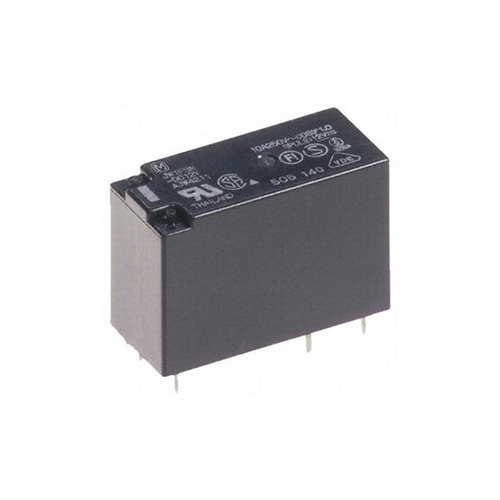

24VDC SPDT PC Mount Relay
More infoIdeal for use in industrial, office and even home applications:
• Industrial: NC machines, robots, temperature, controllers
• Office: Photocopiers, vending machines
cHome: TV sets, VCR, microwave ovens
Features:
• Miniature package with universal terminal footprint
• High dielectric withstanding for transient protection: 10,000V surge in us between coil and contact
• Sealed construction
• Class B coil insulation
Specifications:
• Max switching voltage: 250VAC, 30VDC
• Max switching current: 5A
• Min switching capacity: 100mA, 5VDC
• Max operating speed: 6cpm
• Initial insulation resistance: Min 1000MOhm at 500VDC
• Initial surge voltage between contacts and coil: 10,000V
• Operate time (at nom voltage): Max 15ms
• Release time (without diode): Max 5ms
(AM-SY4051)
| SKU | AM-SY4051 |
| Model # | SY4051 |
| Barcode # | 9319236155196 |
