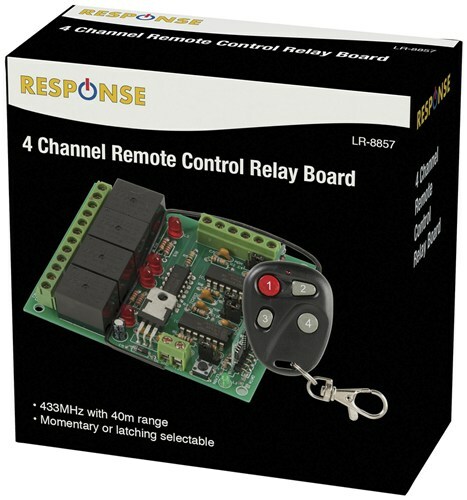

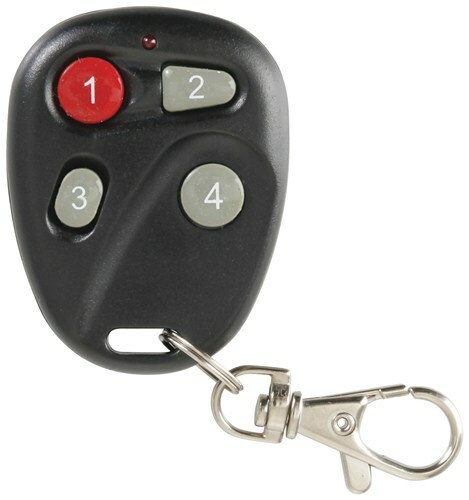

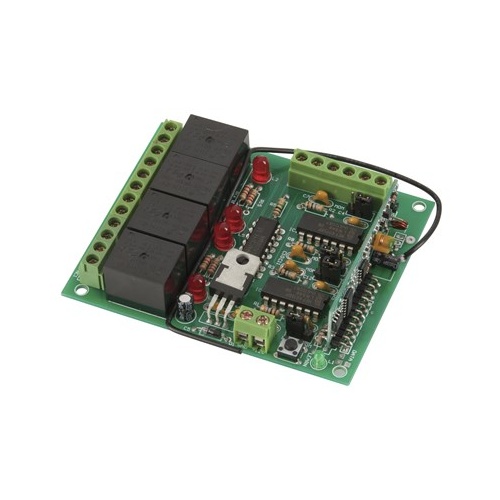

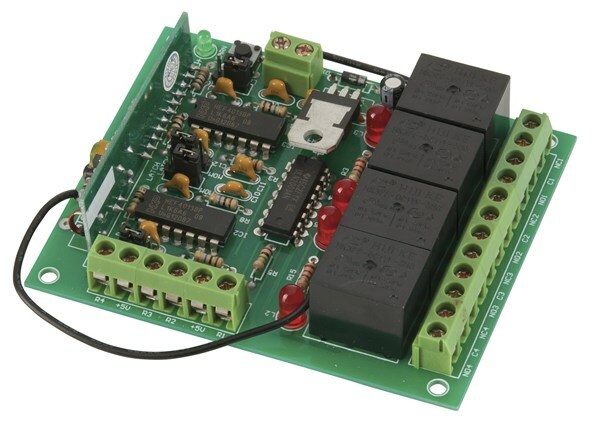

Add remote control functions to a new project or existing installation with these handy remote control relay boards. Each output relay is controlled by a separate button on the key fob controller. Each channel can be set to momentary or latching mode allowing you to customise the setup to suit your application. Operating on the robust 433MHz band the key fob remotes work over distances up to 40m and feature rolling code transmitting for added security.

Specifications:
• Selectable momentary or latching mode for each channel
• Transmission frequency: 433MHz
• Transmission range: 40m max
• Operating Voltage: 12VDC
• Relay contact rating: 30VDC 10A max / 250VAC 10A max
• Current draw: 80mA max
• Board dimensions: 90(L) x 73(W) x 20(H)mm
• Remote dimensions: 50(L) x 39(W) x 12(D)mm

SKU AM-LR8857
Model # LR8857
Barcode # 9319236989180
