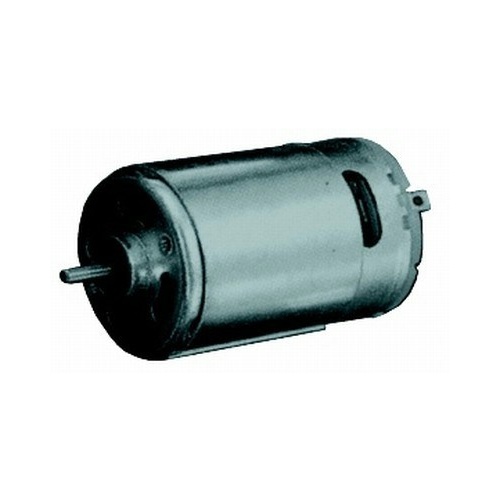

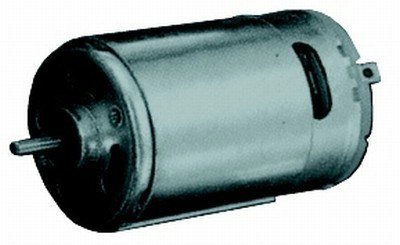

6V 9,000 RPM DC Electric Motor

Each motor briefly described below is a quality product with hardened drive shaft, sintered bearings and quality commutator brushes etc. They are ideal for any application where a compact high torque and reliable motor is required.

• Torque 80g-cm
• 2.3mm driveshaft
• M2.6 threaded mounting
• Generously ventilated
• Solder tag terminals
• Voltage: 6V

NO LOAD
• Speed (RPM): 13500
• Current (AMP): 0.55

AT STALL
• Torque (G.CM): 191
• Current (AMP): 5.6

AT MAX EFFICIENCY
• Efficiency(%): 49.6
• Power (W): 5.96
• Speed (RPM): 9679
• Torque (G.CM):60
• Current (AMP): 2

AT MAX POWER
• Output (W): 6.44
• Speed (RPM): 7845
• Torque (G.CM): 80
• Current (AMP): 2.6

DIMENSIONS
• Diameter: 27.6mm
• Total Length: 51mm
• Shaft Length: 12.5mm
• Shaft dia: 2.3mm
• Mounting thread dia: 2.6mm
