Specifications

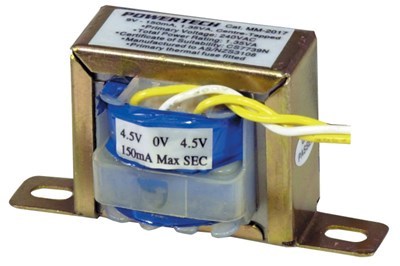

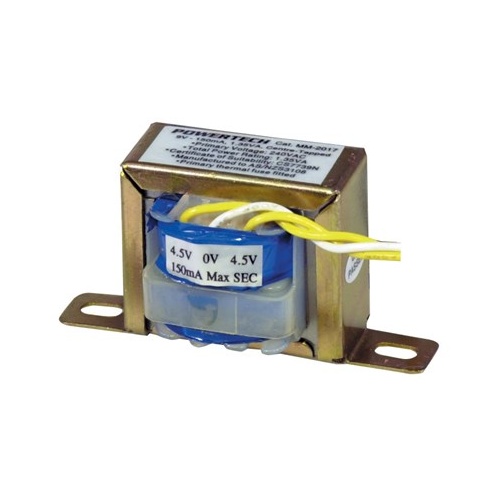

9V 1.35VA 150mA Centre Tap - Type 2840 Transformer
Type: 2840

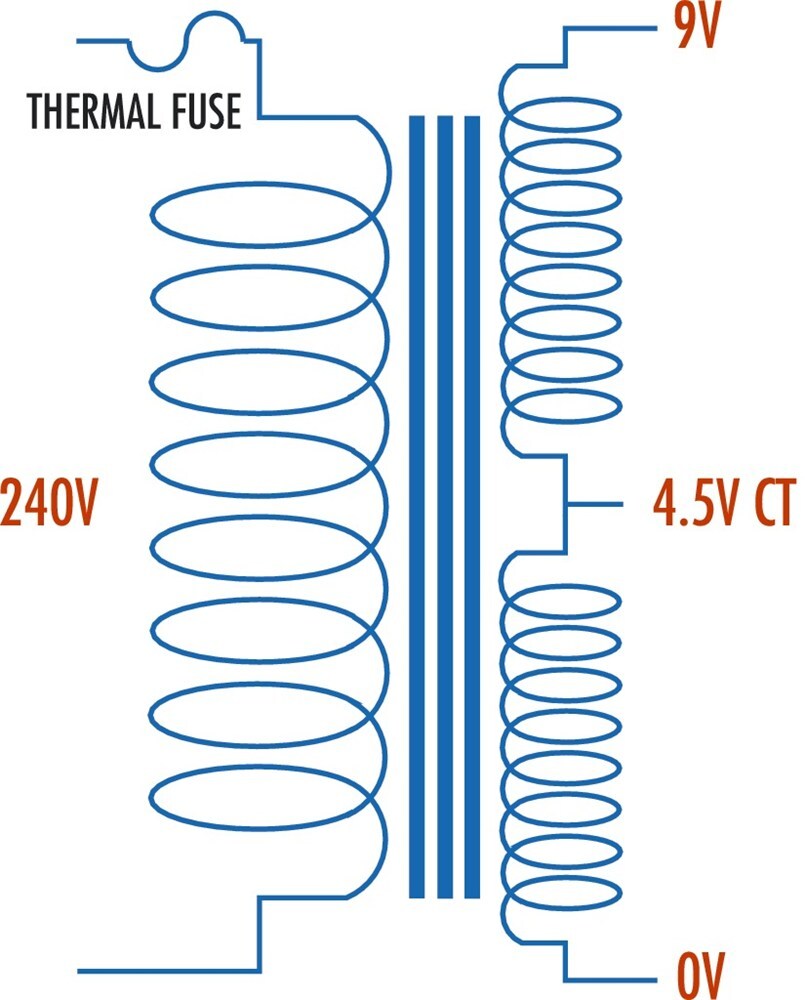

Secondary winding(s): Centre Tapped
Primary voltage: 240VAC
Total VA rating: 1.35VA
Secondary voltages: 9V, 4.5V (CT)
Secondary current (max): 150mA
Magnetising current:: 30mA
Temp rise above ambient at rated power: 60°C
Regulation: 9%
Weight: 120g
Primary connection 200mm fly Leads
Secondary connection 200mm fly Leads
Conforms to AS/NZ 3108 & AS/NZ 61558.2.6 TBA

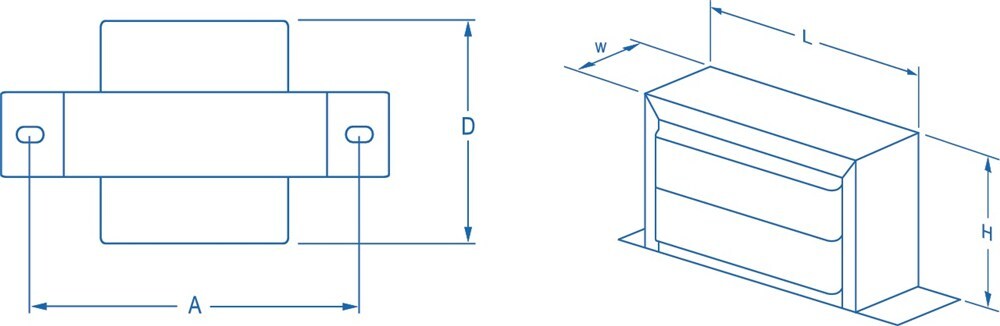

Dimensions(mm) A45 D32 L37 W16 H32



Energy Authority Certificate of Suitability No. CS:7739N

SKU AM-MM2017
Model # MM2017
Barcode # 9319236862629
Brand SOANAR
Shipping Weight 1.0000kg
