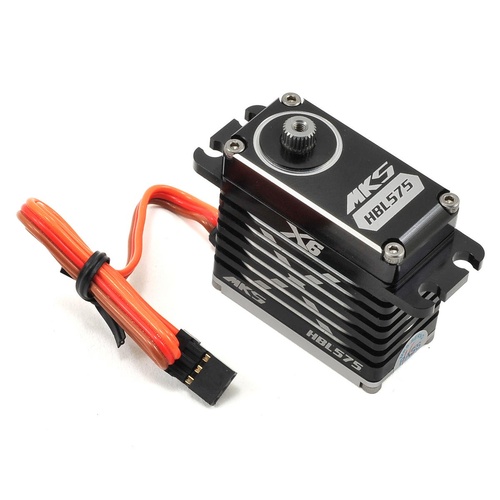

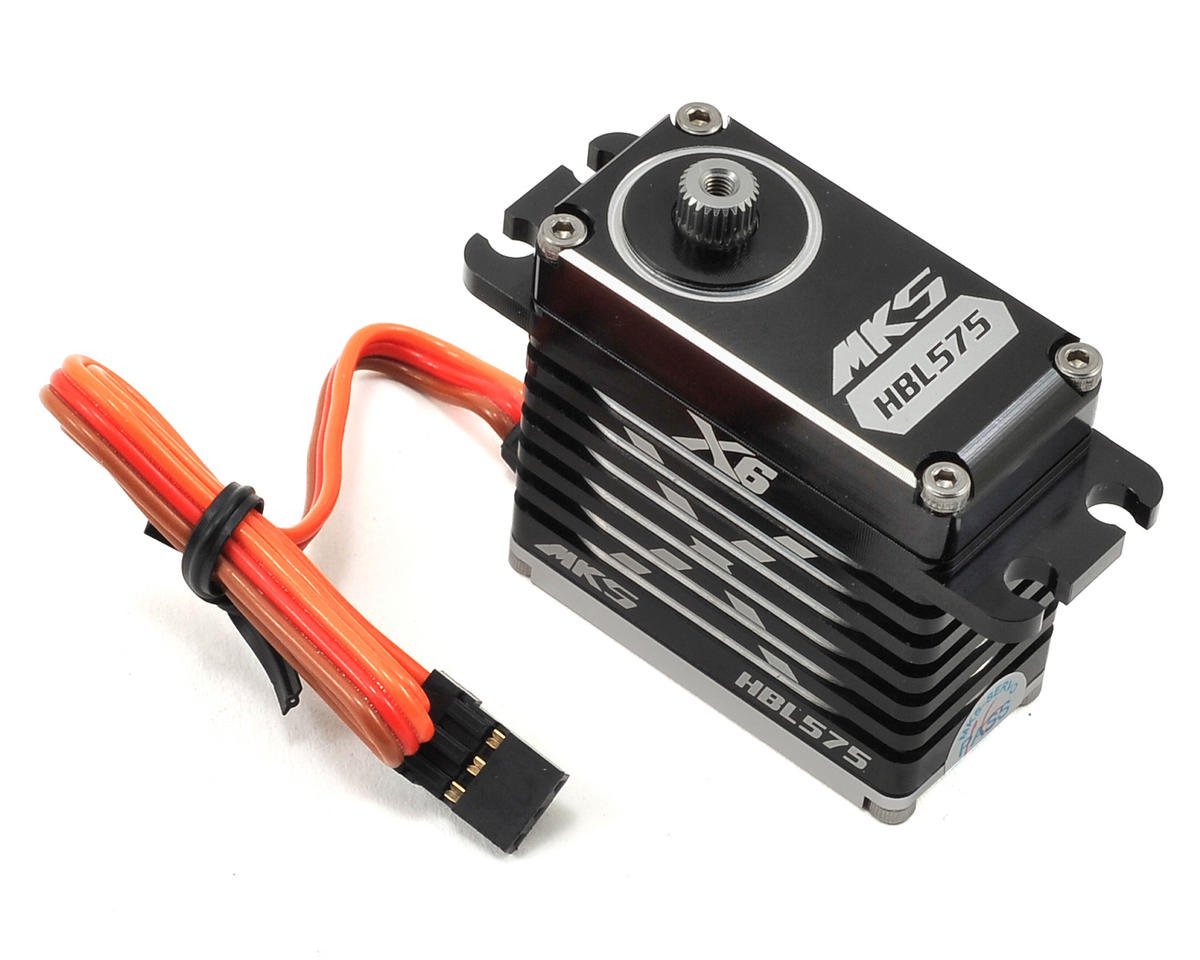

SKU MKS-HBL575
Dead Band 0.0008ms (Default)
Control System +Pulse Width Control
Working Frequence 1520μs / 333hz
Operating Voltage 3.5 ~ 8.4 Volts
Operating Temperature Range -10 to + 60 Degree C
Operating Speed (6V) 0.82 sec/60° degrees at no load
Operating Speed (7.4V) 0.066 sec/60° degrees at no load
Operating Speed (8.4V) 0.06sec/60° degrees at no load
Stall Torque (6V) 249.97 oz/in (18 kg/cm)
Stall Torque (7.4V) 305.52 oz/in (22 kg/cm)
Stall Torque (8.4V) 333.30 oz/in (24kg/cm)
Motor Type Brushless Motor
Potentiometer Drive Indirect Drive
Bearing Type 12x8 mm Double bearings
Gear Type Chrome-Titanium alloy gear
Connector Wire Length 24.0 cm (9.4 in)
Dimensions 40 x 20 x 38.5 mm
Weight 73.12 g
SKU HBL575
Barcode # 20161005001
Shipping Weight 0.2000kg
