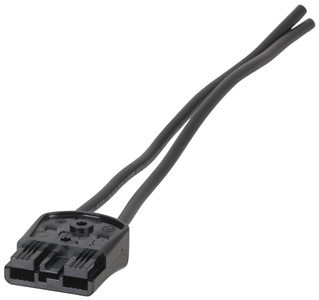

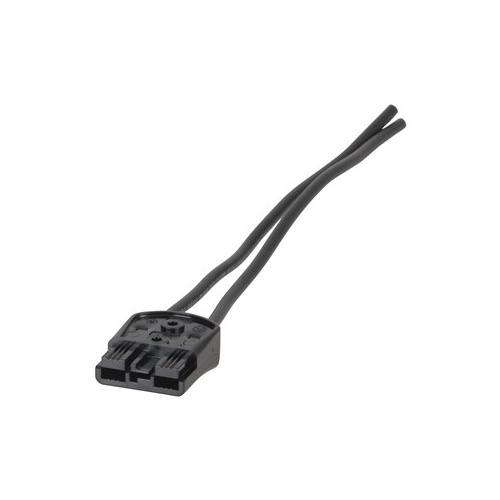

Compact and ergonomic, these high-current connectors protect against accidental contact with dangerous DC circuits. Inline and wire-to-wire configurations allow for one connector to meet multiple needs. The mini connector features touch-safe polycarbonate housing and two finger proof positions. Contact pins fitted in Australia to ensure the highest quality connection. Available in black, red and grey.

Features:
• Anderson’s smallest SBS connector
• Touch-safe housing

Specifications:
Contact Rating: 10AWG 35A
Contact Wire Size: 0.75 to 4.0mm²
Voltage Rating: 600V
Max Wire Outer Diameter: 4.65mm
Contact Retention Force: 9kg (20lbs) minimum
Operating Temperature: -20° to 105°C
Dimensions: 30(L) x 23(W) x 10(H)mm (excluding wire)

SKU AM-PT4480
Model # PT4480
Barcode # 9319236676677
