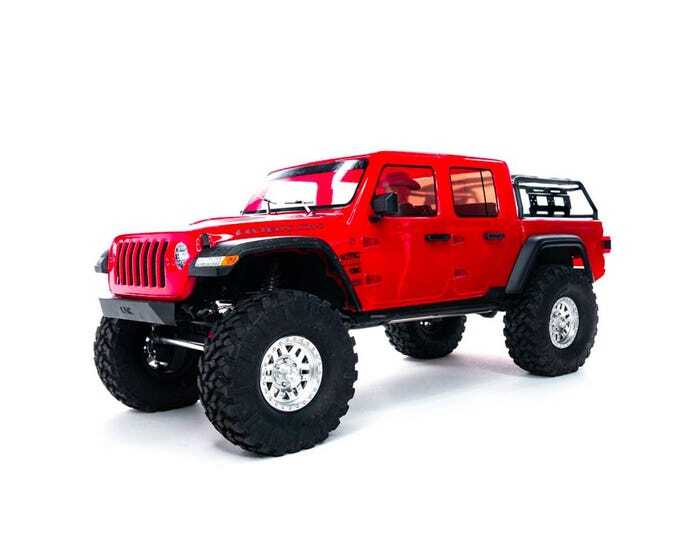

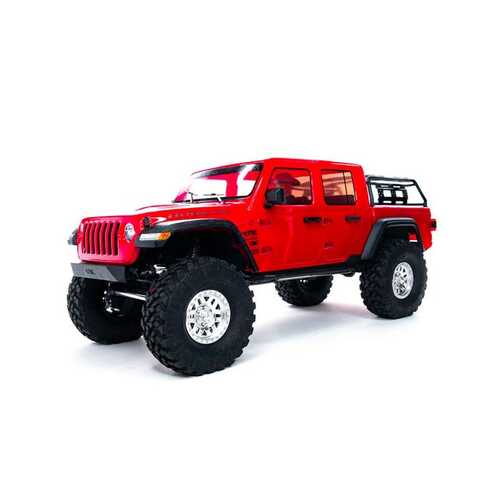

Axial® climbs to the peak of scale rock crawling with the ready-to-run SCX10™ III Jeep® JT Gladiator. The upgraded chassis offers a third-channel DIG function plus 14-inch wheelbase that allows Axial® to include a larger, more realistic 2-piece body.
Features
- Replica V8 engine cover, transmission housing and transfer case cover and protect the motor while improving scale appearance and adding forward-mounted weight.
- DIG function transmission option lets you lock the rear axle from the transmitter for front wheel drive and a tighter turning radius.
- Two-speed transmission option allows you to increase vehicle speed by approximately 40%.
- Drivers can choose between DIG and 2-speed transmission options or run both with a 4-channel receiver and two servos (not included)
- AR45 Portal Axles feature an offset front housing for realistic looks.
- Axle housings also use portal gears for increased ground clearance and a universal that provides 45 degrees of steering.
- Differential locker features Hypoid gears, allowing for smaller size gears, improved gear reduction and reduced torque twist.
- Authentic Jeep® JT Gladiator body includes over 20 injection-molded parts including bed rack, door handles, mirrors, hood vents and more.
- Three-piece body provides a more realistic deep bed.
- New centered battery position improves chassis balance with front-mounted motor.
- Chassis side pods offer mounting locations for smaller LiPo batteries, if desired.
- Oil-filled shocks feature new O-ring material for an improved seal and cap with bleed screw for easier rebuilds.
- All drive train components in the transmission, portals and axle gears are metal for extreme durability — with pinion gear included, the vehicle has 23 metal gears in total.
- Improved materials increase durability and stiffness while holding tighter tolerances to eliminate most “slop”.
- Metal stainless steel pivot balls at all suspension points increase durability and wear life for consistent handling.
- Improved suspension geometry further reduces torque twist while allowing chassis fine-tuning.
- Extended 14-inch wheelbase with longer frame rails and chassis supports a more realistic version of the Jeep® JT Gladiator body.
- Detailed interior with molded driver adds to the vehicle’s realistic scale looks.
- New rear body mounts simplify body removal.
- Injection-molded inner fenders hide internal components usually visible from the side of the chassis.
- Spektrum™ DX3™ DSMR® radio is fully compatible with the Smart telemetry potential of the installed Firma™ Smart 40A ESC/receiver.
- Included Spektrum™ 15kg metal gear servo and all electronics are protected by a waterproof design for confident driving in any weather and trail conditions
What you need
- Vehicle Battery (accepts standard and shorty packs)
- Compatible charger
- Type
- "Scale" 4x4 Crawler
- Completion Level
- Ready-to-Run
- Scale
- 1/10
- Length
- 22.25 in (565 mm)
- Width
- 9.25 in (234 mm)
- Height
- 9.5 in (241 mm)
- Weight
- 7 lb (3.175 kg)
- Ground Clearance
- 3 in (76.2 mm)
- Wheelbase
- 14 in (356 mm)
- Track
- 8.9 in (226 mm)
- Front Track
- 8.9 in (226 mm)
- Rear Track
- 8.9 in (226 mm)
- Chassis
- Adjustable Steel C-channel
- Suspension
- Multi-Link Solid Axle
- Shock Type
- Oil-Filled/Coil-Over Spring
- Drivetrain
- 4WD (locked front and rear)
- Differential
- Locked
- Wheel Type
- Injection Moulded 3-Piece Beadlock
- Wheel Diameter
- 1.9 in (48.3 mm)
- Wheel Width
- 1 in (25.5 mm)
- Tyre Compound
- R35 (sticky)
- Tyre Tread
- Nitto Trail Grappler M/T
- Tyre Diameter
- 4.7 in (119 mm)
- Motor Type
- Brushed
- Motor Size
- 540
- Pinion
- 14T
- Gear Pitch
- 32-Pitch
- Final Drive Ratio
- 45.6:1 Low / 31.3:1 High
- Speed Control Included
- Y
- Radio
- Spektrum
- Servos Included
- Y
- Body
- Polycarbonate
- Ball Bearings
- Complete Vehicle
- Experience Level
- Beginner
- Recommended Environment
- All-Terrain
- Is Assembly Required
- No
| SKU | AXI03006BT2 |
| Barcode # | 605482159972 |
| Brand | AXIAL |
| SCALE | 1:10 |
