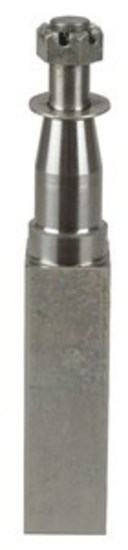

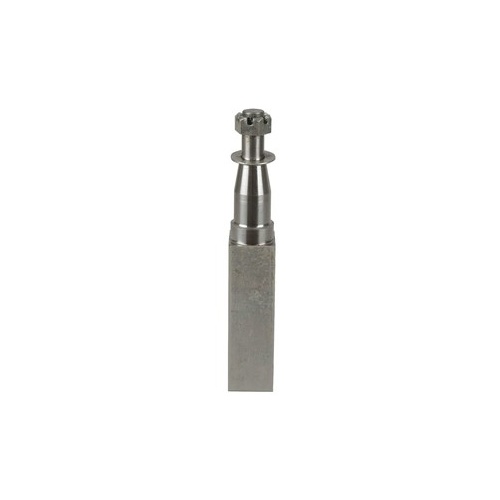

Axle (Solid) 40mm SQR x 77Inch (1955mm)

These axles are made from high strength steel, machined at each end for a tapered wheel bearing set. Simply measure the length of the old axle (accurately) and choose the equivalent length from the products shown below.

• All axles are square section, 40 or 45mm
• 40mm axle taper for LM(Holden) bearings
• 45mm axle taper for SL(Ford) bearings
• Capacity of 40mm square axle, 1000kg recommended wheel no larger than 14"
• Capacity of 45mm square axle, 1450kg recommended wheel no larger than 16"
• All axles made from solid medium tensile steel
• Screw threads of bearing retainer: UNF

40mm x 65” (1651mm)             TTA002
40mm x 77” (1955mm)             TTA004
40mm x 79” (2000mm)             TTA006
40mm x 96” (2438mm)             TTA008
45mm x 65” (1651mm)             TTA010
45mm x 75” (1955mm)             TTA012
45mm x 79” (2000mm)             TTA014
