Overview

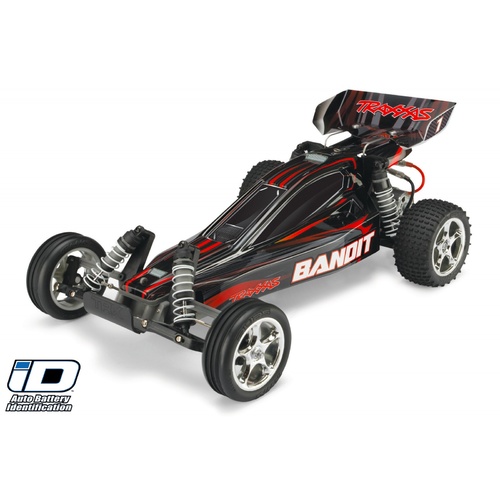

The Traxxas Bandit is the perfect buggy to get you started in the great hobby of RC (Radio Control).

The Titan 12T 550 motor has an inbuilt cooling fan reducing running temperatures and allowing faster speeds and longer run times without having to worry about overheating.

Precise control is easy with the included 2.4 GHz TQ radio system.

Hobbies Direct recommends using Traxxas’ Patented Training mode as it limits the power output of the model to 50% which makes practising much easier and safer and is also a great idea when giving your friends a try.


Hobbies Direct stocks 100% of the spare parts for the Traxxas 1/10 Bandit meaning more fun-time and less down-time.




Training Mode

Traxxas' patented Training Mode is a fantastic way to learn how to drive an RC car, once set to Training Mode the power output of the car gets reduced to 50%.


Traxxas Training Mode
Drive With Confidence

Traxxas' 2.4ghz TQ transmitter has a range of over 300 meters and has no trouble with multiple cars driving around at once. Designed to be very comfortable, lightweight (only uses 4 AA batteries), and easy to use.


Traxxas TQ 2ch Transmitter
40 Minute Charge

Stop waiting around for your batteries and charge on the go with Traxxas' 4 Amp fast charger just plug it into your car's cigarette port and start charging. You can charge your batteries while camping on even at the track!


Traxxas 4 Amp Charger
Traxxas ID Connectors

The best connectors in the industry! Secure, easy to use, high-current, also has a RFID chip that tells the charger what settings to charge it on. Now that's one smart connector.


Traxxas ID Connector
XL5 ESC

The XL5 is designed to be easy to use, handle NiMH and LiPo batteries, and comes with three programmable modes, Training Mode (50% forward with brake and 50% reverse), Sports Mode (100% forward with brake and 100% reverse - default), and Race Mode (100% forward with Brake and no reverse).


Traxxas XL5 ESC
Titan 12T Motor

This RC car's power is delivered by Traxxas' mighty Titan 12T brushed motor. Comes with a built-in fan for cooler running temps to handle long run times. Compared to standard 540 motors, the Titan 12T 550 has a 30% larger armature.


Traxxas Titan 12T Motor
 Features
  • 35Mph straight out of the box*
  • 4-amp NiMH peak charger (Short charge time)
  • 7-cell NiMH battery w/ ID (Great power and run time)
  • Fully waterproof electronics
  • Steel transmission gears
  • Revo spec torque control slipper clutch system
  • Telescoping 'U' joint drive shafts

*with included optional 28-tooth pinion gear.

  Specifications
  • Length: 413mm (16.25”)
  • Width: 250mm (9.84”)
  • Height: 178mm (7”)
  • Weight: 1.36kg (2.99 lbs)
  • Wheelbase: 286mm (11.25”)
  • Ground Clearance: 25.4mm (1”)
  • Drivetrain: 2WD
  Required Items (Not Included)
  • 4 AA Batteries
BANDIT (#24054-1) SPECS
Length:   16.25" (413mm)
Front Track:   9.84" (250mm)
Rear Track:   9.84" (250mm)
Weight:   48oz (1.36 kg)
Height (overall):   7" (178mm)
Wheelbase:   11.25" (286mm)
Front Shock Length:   Long
Rear Shock Length:   XXLong
Front Tires (pre-glued):   Alias™ Ribbed 2.2"
Rear Tires (pre-glued):   Alias™ Step-Pin 2.2"
Front Wheels:   2.2" Mirror-Chome (Tracer™)
Rear Wheels:   2.2" Mirror-Chome (Tracer™)
Electronic Speed Control:   XL-5™ Electronic Speed Control
Motor (electric):   Titan® 12T 550 (12-turn 550)
Steering Servo:   #2056 High Torque Waterproof
Transmitter:   TQ 2.4GHz Radio
Receiver:   #6519 3-Channel Micro
Gear Ratio (internal):   2.72 (final drive: 10.17)
Differential Type:   Planetary Steel Gear
Gear Pitch:   48-Pitch
Transmission:   Magnum 272™
Steering:   Bellcrank
Chassis Type:   Modified Tub
Chassis Material:   Fiber-Composite
Top-Speed:   35+mph**
Skill Level:   1
*Battery Tray Dimensions:   139mm x 47.5mm x 28mm
Included Charger:   4-amp DC Peak Detecting Fast Charger
Included Batteries:   Traxxas 3000mAh, 5.4V, 7-cell NiMH battery with iDTM
Required Batteries:   4 "AA" (transmitter)
XL-5 (WATERPROOF) ESC SPECIFICATIONS
Input voltage:   4-7 Cells NiMH, 2-Cell (2S) LiPo
Case Size:   1.23"W x 2.18"D x 0.61" H
Weight:   2.44 Ounce
Motor Limit:   15-turns** (540 Size)
12-turns** (550 Size)
On Resistance Forward:   0.007 Ohms
On Resistance Reverse:   0.014 Ohms
Peak Current - Forward:   100A
Peak Current - Reverse:   60A
Braking Current:   60A
Continuous Current:   14A
BEC Voltage:   6.0 VDC
BEC Current:   1A
Power Wire:   14 Gauge / 5"
Input Harness Wire:   26 Gauge / 9"
Transistor Type:   MOSFET
PWM Frequency:   1600 Hz
Low Voltage Detection (LVD):   2-Stage indicators, switchable (on or off)
Thermal Protection:   Thermal shutdown
Profile selection:   Sport Mode:
    100% FWD, 100% brakes, 100% REV
Race Mode:
    100% FWD, 100% brakes, no REV
Training Mode:*
    50% FWD, 100% brakes, 50% REV
Single-button setup:   Yes, Traxxas EZ-Set®
SKU 24054-1REDX
Barcode # 020334240910
Brand Traxxas
Shipping Weight 4.0000kg
