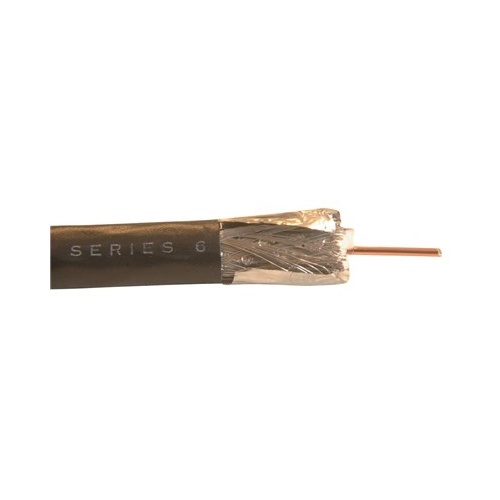

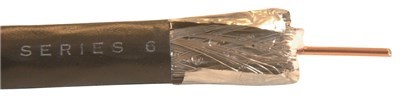

Belden Brand Quad Shield RG-6 75 Ohm Coax

This is the cable used by all Pay- TV installers. Quality U.S made Belden brand. We have repackaged in Australia on 100m reels. Normally this is only available in 1000 feet boxes. It features a solid 18AWG steel centre conductor, copper plated, gas injected polyethylene foam insulation (to keep water out), Black P.V.C jacket, plus 4 layers of screening: a combination of aluminium foils and braiding. 100% sweep tested 5MHz- 1GHz.

Attenuation Details

Freq. MHz Nom. Atten. Nom. Atten.
(dB/100ft) (dB/100m)
5 0.42 1.38
55 1.42 4.66
211 2.79 9.15
216 2.83 9.3
240 2.99 9.8
270 3.17 10.4
300 3.35 11
325 3.49 11.4
350 3.63 11.9
375 3.76 12.3
400 3.89 12.8
450 4.13 13.5


Freq. MHz Nom. Atten. Nom. Atten.
(dB/100ft) (dB/100m)
500 4.36 14.3
550 4.57 15
600 4.78 15.7
650 4.97 16.3
700 5.17 17
750 5.35 17.5
800 5.54 18.2
862 5.75 18.9
870 5.78 19
900 5.89 19.3
950 6.15 20.2
1000 6.22 20.4


Specifications:
Beldon Part No. 1189A
Centre Conductor: 18 AWG, Steel CU Plated 1.016mm dia
Core O.D: 4.572mm
Jacket O.D: 7.569mm
Nom Imp (ohm): 75
Vel. of Prop.: 82%
Nominal Cap.: 16.2pf/ft, 53.1pf/mt

- Roll length 100 Metres
- Sold per metre
