Blackhorse Models L-60 Brigadýr | Item code: BH193

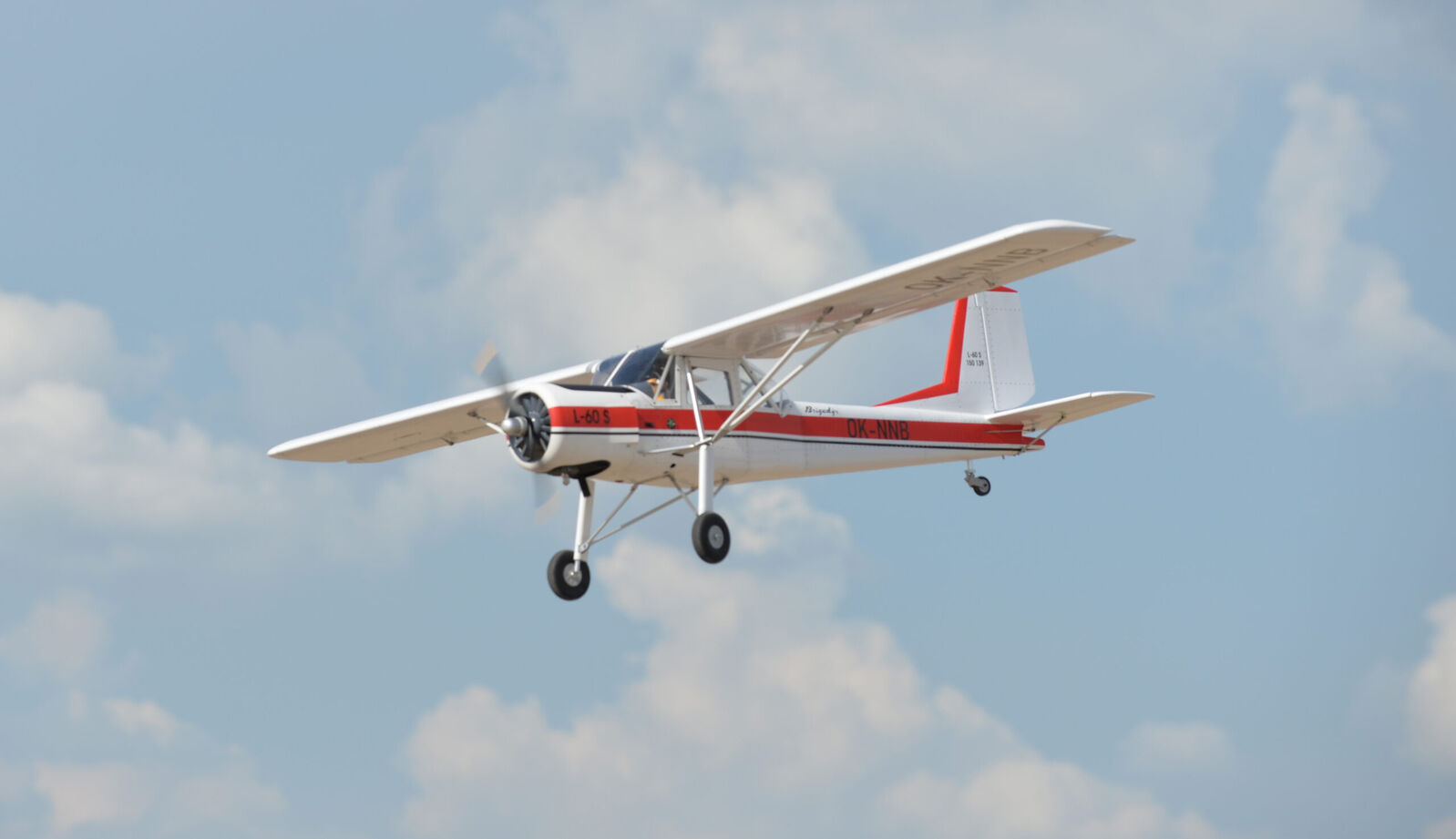

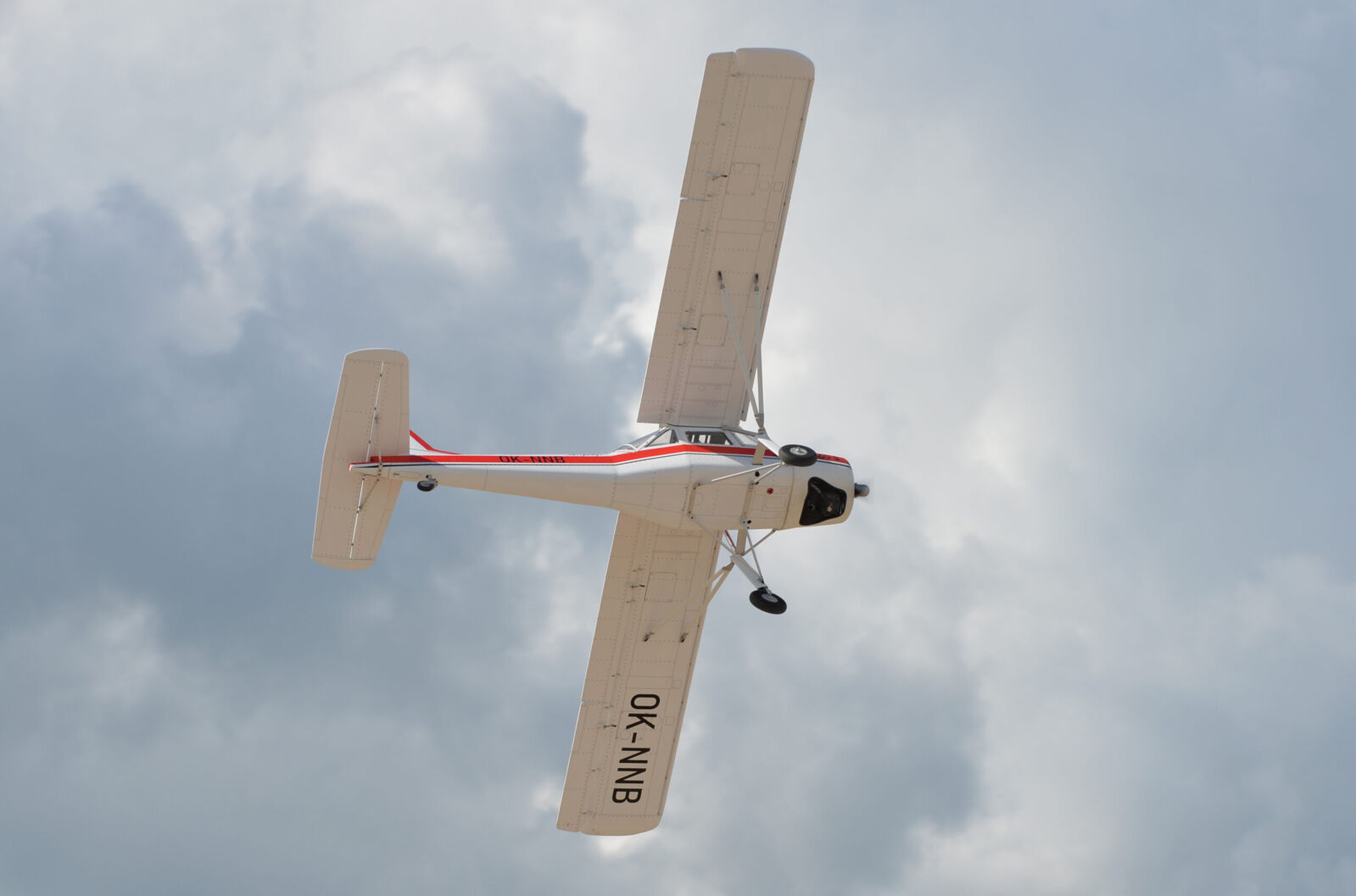

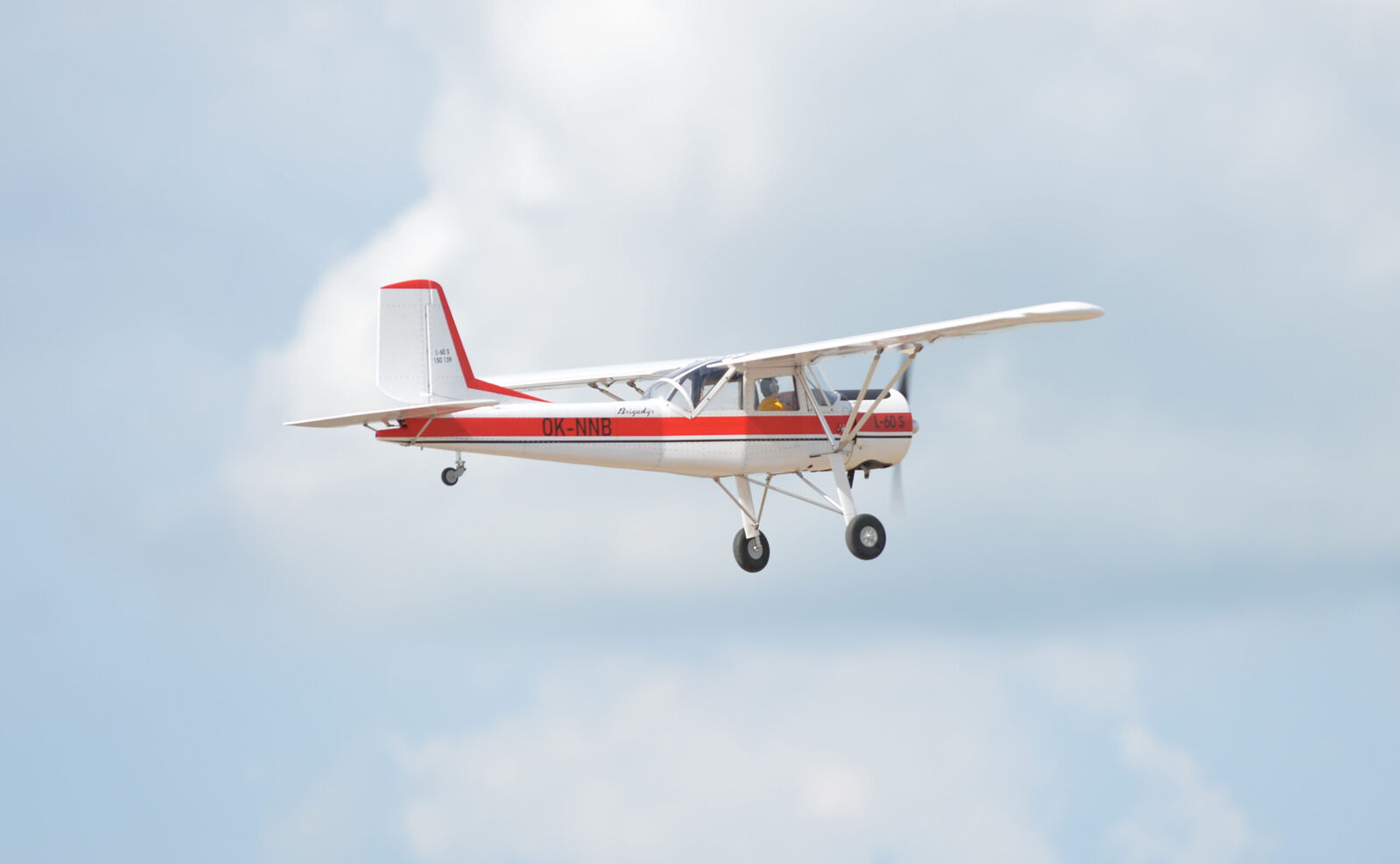

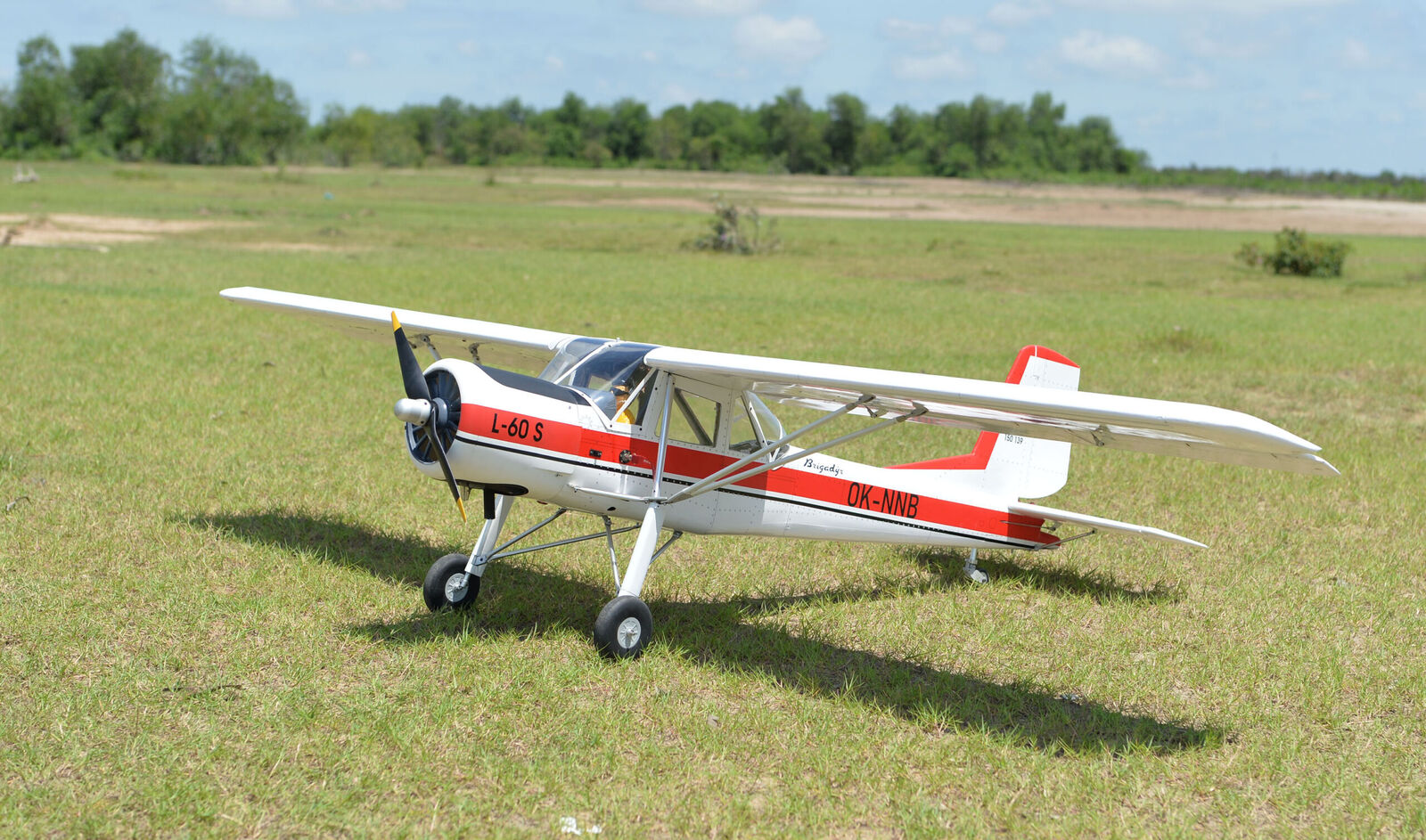

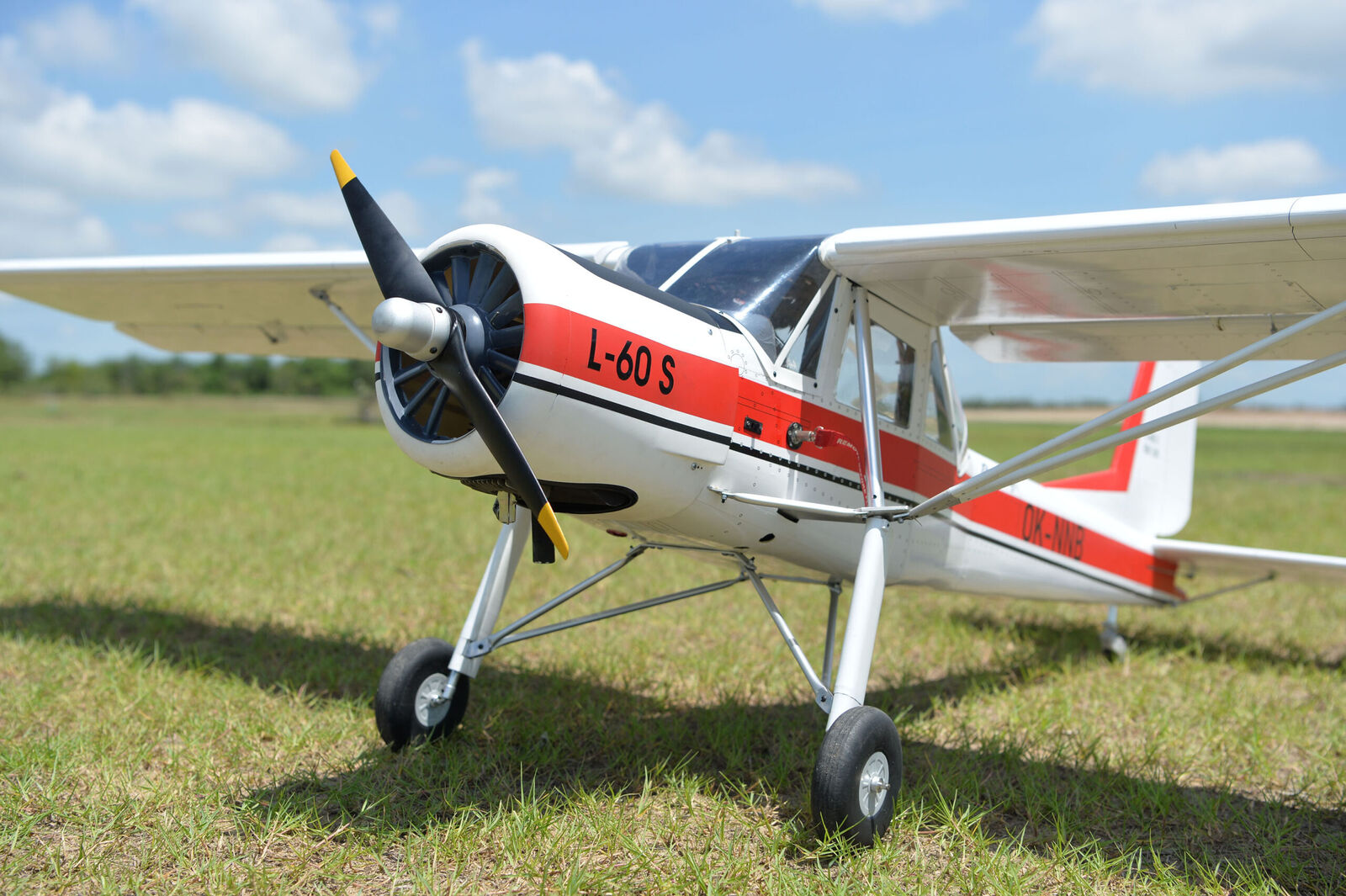

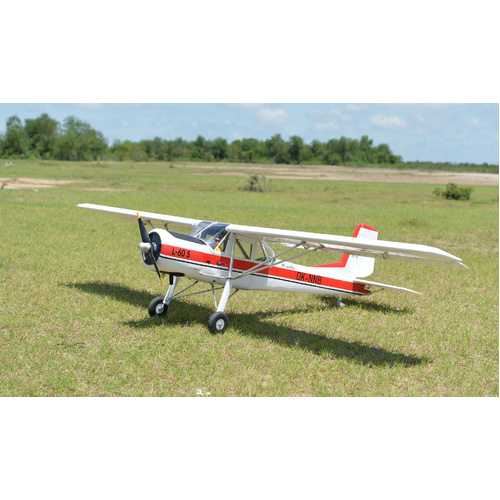

L-60 Brigadýr
Item code: BH193.
Glow and EP

 SPECIFICATION:
– Wingspan: 2,668 mm (105.04 in).
– Length: 1,672 mm (65.83 in).
– Weight: 8 kg (17.64 lbs).
– Wing area: 90.58 dm2.
– Wing loading: 88.31 g/dm2.
– Servo mount: 42mm x 21mm.
– Wing type: Naca Airfoil.
– Spinner: Aluminium 44mm (included).
– Gear type: Oleo struts for main gear (included).
– Tail gear type: Oleo struts for tail gear (included).

 Parts listing required (not included):
– Radio: 06 channels minimum.
– Servo: 07 Standard high torque servos.
– Engine: 30 – 35cc gas
– Motor: Brushless outrunner 2500 – 3200W, 245KV.
– Propeller: Suit with your engine.

Recommended Motor and Battery set up (not included):
– Motor: Admiral GP26 6330-245KV Brushless.
– Lipo cell: 6-10 cells 4000 – 5500 mAh.
– Receiver battery: 6V-7.4V/ 1200 – 2000 mAh.
– ESC: 80 – 100A.

ALL BALSA – PLY WOOD CONSTRUCTION.
COVERED IN A HEAT-SHRINK FILM WITH PRINTED.
