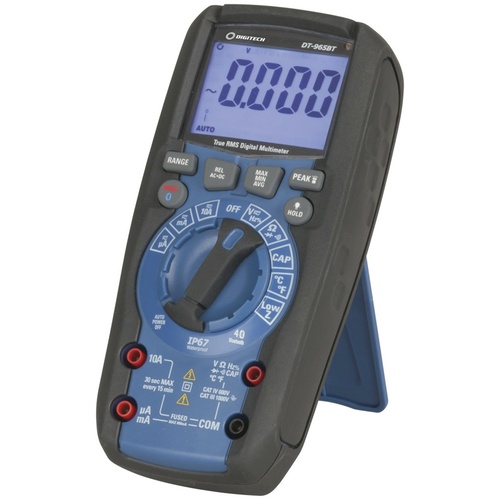

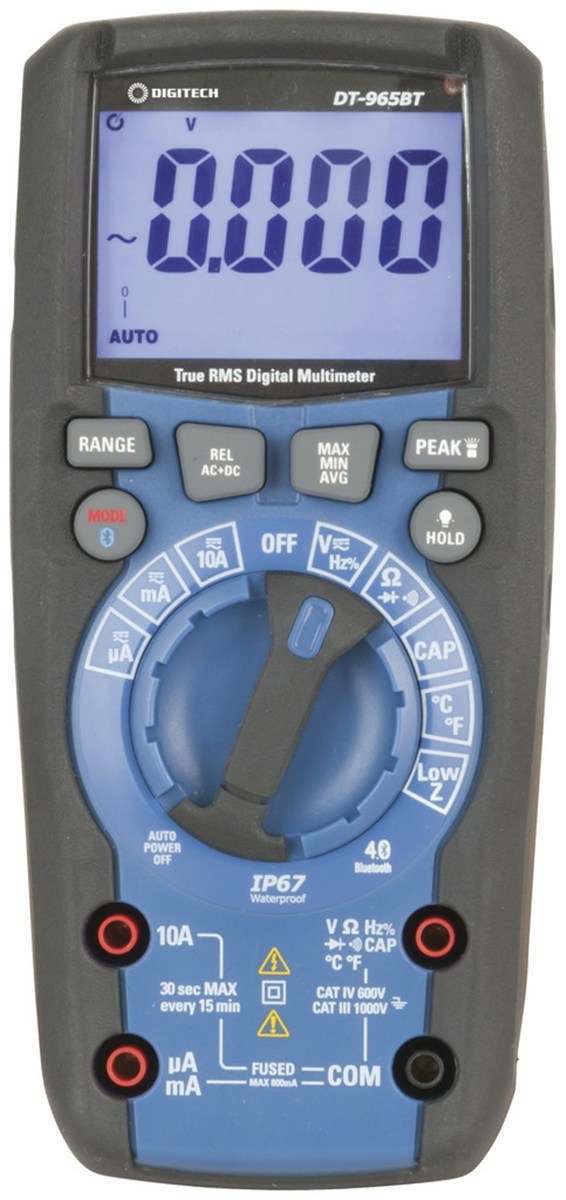

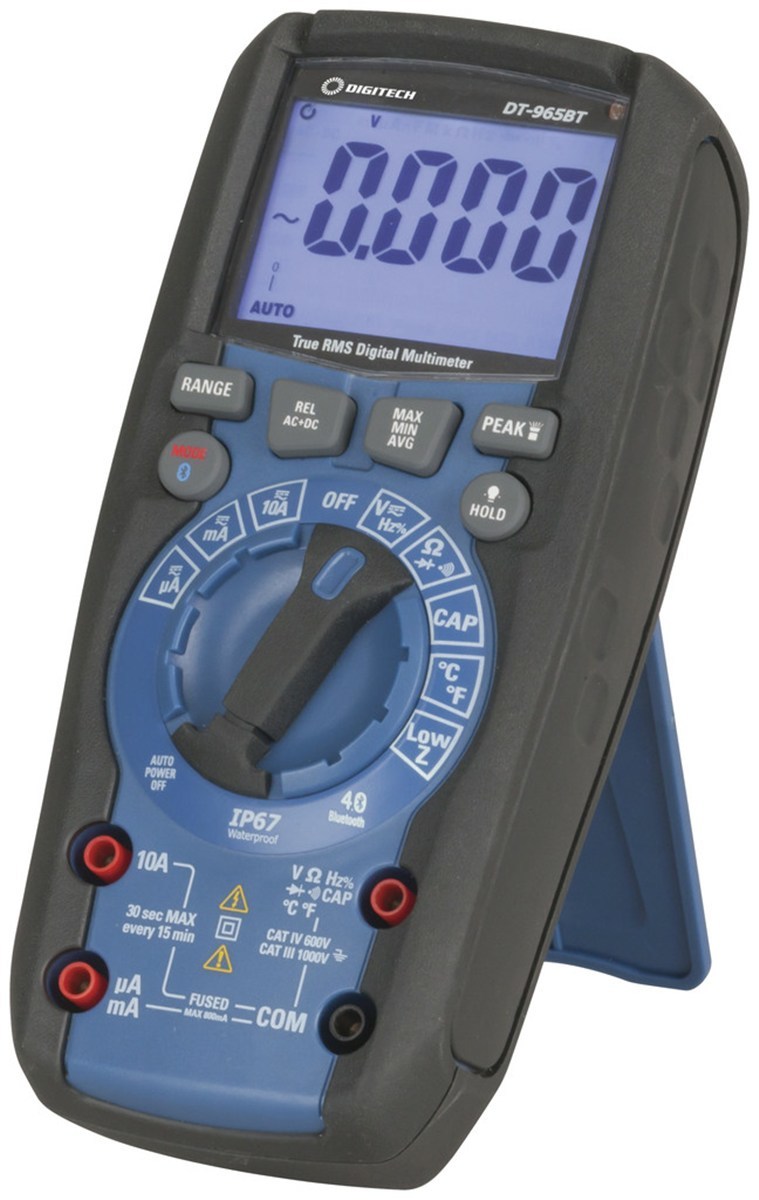

QM1578 A stunning example of multimeter performance, with a rugged waterproof case to boot! Full auto ranging with high accuracy 6000 count display, as well as advanced math functions. All the usual features like data hold, temperature, capacitance, and a few not-so-common features like duty cycle measurement. Bluetooth connectivity provides a host of advanced monitoring and data logging functionality without fuss.Features:• Bluetooth wireless• True RMS• 6000 count• Cat IV 600V• IP67 waterproof case• Large backlit display• Duty cycle measurement• Relative measurement• Min / max / avg functions• Frequency measurement• Capacitance• Full autorangingSpecifications:Display: 6000 countMeasurement Category: Cat IV 600V / Cat III 1000VBasic VDC Accuracy: 0.500%DC Voltage: 600mV, 6V, 60V, 600V, 1000V (± 0.9%)AC Voltage: 6V, 60V, 600V, 1000V (± 1.0%)DC Current: 60μA, 6000μA, 60mA, 600mA, 10A (± 1.0%)AC Current: 600μA, 6000μA, 60mA, 600mA, 10A (± 1.0%)Resistance: 600Ω, 6kΩ, 60kΩ, 600kΩ. 6MΩ, 60MΩ (± 1.5%)Capacitance: 60nF, 600nF, 6μF, 60μF, 600μF, 6000μF (± 5.0%)Frequency: 0.001Hz, 1kHz, 10kHz (± 1.0%)Temperature: -20°C to 760°C / -4°F to 1400°F (± 1.0%)AC Rectification: True RMSInput Impedance: 10MSpecial Features: True RMS, duty cycle, IP67 case, bluetooth connectivityFuse: F10A 1000VDimensions: 170(H) x 75(W) x 48(D)mm
SKU AM-QM1578
Model # QM1578
