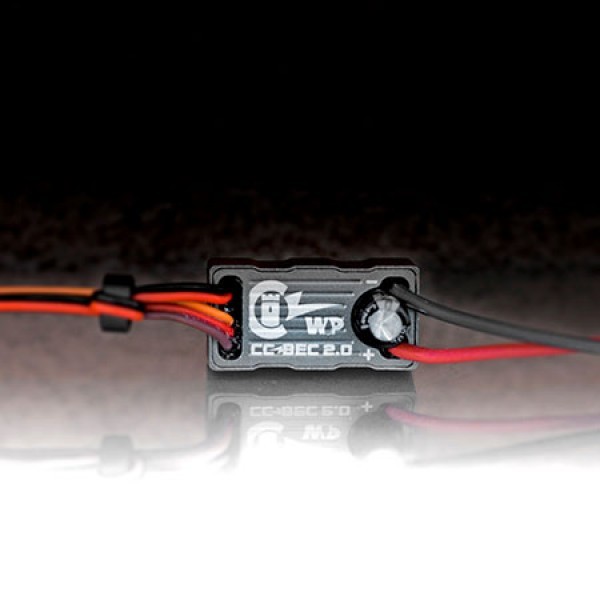

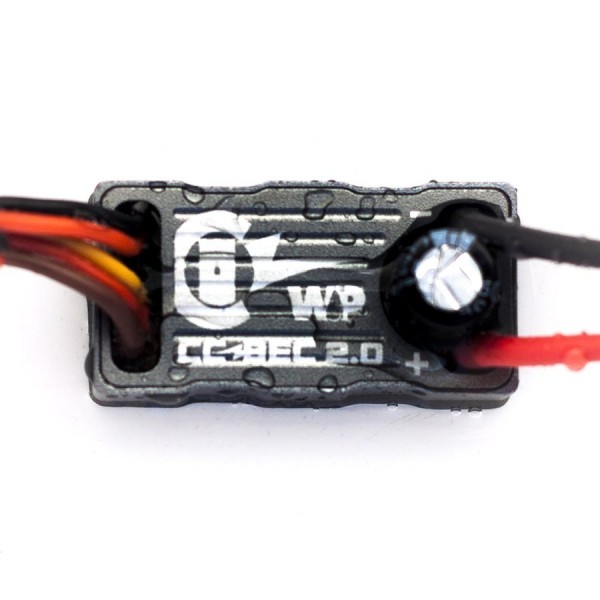

Castle Creations 20A BEC 2.0, 010-0153-00
Make 4 payments of $26.00 over 8 weeks and get it now!
In StockThe CC BEC 2.0 complements our established line of BECs hobbyists have relied on for years. With hundreds of thousands in the field, users can count on this new design to power today’s high-power, digital servos and accessories safely. The CC BEC 2.0 features heavy duty, dual output wires that will provide clean power to sensitive radio equipment. Castle Link2 can be used to set the output from 4.75 to 12 volts and power today’s power hungry servos, cameras, and other accessories. Do it right the first time, invest in the CC BEC 2.0 to protect expensive electronics for the long haul.
Product Information
The CC BEC 2.0 complements our established line of BECs hobbyists have relied on for years. With hundreds of thousands in the field, users can count on this new design to power today’s high-power, digital servos and accessories safely. The CC BEC 2.0 features heavy duty, dual output wires that will provide clean power to sensitive radio equipment. Castle Link2 can be used to set the output from 4.75 to 12 volts and power today’s power hungry servos, cameras, and other accessories. Do it right the first time, invest in the CC BEC 2.0 to protect expensive electronics for the long haul.
Note: CC BEC 2.0 should never be operated in series or parallel with another BEC or backup receiver pack connected to the RX/Servo side of the circuit.
(CSE010015300)
- Common applications:
- Crawlers, Marine, Sea Planes, UAS, Industrial
- Waterproof:
- Yes
- Peak current:
- 15A (dependent upon input and output voltage)
- Continuous current1:
- 4.75- 6.0V output: 10A
6.25-8.5V output: 9A
8.75-10.0V output: 8A
10.25-12.0V output: 7A - Max volts:
- Surface 12S (50.4V)
Air (w/Brake): 12S (50.4V)
Air (No Brake): 14S (58.8V) - Adjustable output voltage2:
- 4.75 to 12V
- Default setting:
- 5.25V
- Length:
- 35mm
- Width:
- 18mm
- Height:
- 19mm
SKU | CSE010015300 |
Barcode # | 819326011207 |
Brand | CASTLE CREATIONS |
Shipping Weight | 0.0200kg |
