Putting the X in Extreme!

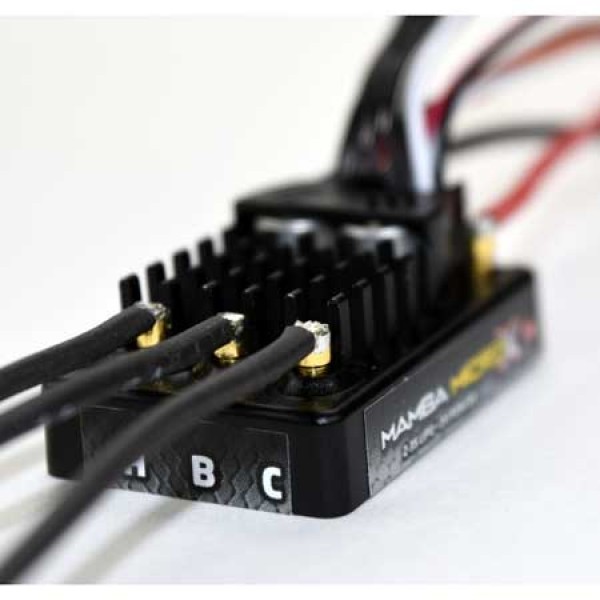

The Mamba Micro X Crawler edition ESC is our latest offering for the crawling crowd. This ESC is ideal for the weight conscious builder or where space is limited, used in low speed crawling or trail running in vehicles weighing up to 8lbs on 2s or 3s; it can also be used in slightly more aggressive setups like rock racing and extended hill climbing on vehicles up to 4lbs. Recommended motors include Castle's "Slate" crawler motors (combos available) and Holmes Hobbies Puller Pro 540 "Stubby" (≤ 2700kv)

If you're looking for a more aggressive setup in a heavier rig, like rock racing and extended hill climbing, we recommend you run the Mamba X ESC. Your ESC will come with our new V2.02 firmware that has been enhanced for rock crawling and sensored operation.

Note: Use of an external BEC is required if running a high power or digital servo.

This SPECIAL EDITION of the Mamba Micro X includes motor solder posts with 16 AWG wire and 4mm female bullets for the motor connection; it also includes the matching 4mm male bullets to attach to your motor.

The Auxiliary Advantage.

Telemetry Capability

The Mamba Micro X is telemetry ready, which means owners of Futaba T4PX or 7PX Transmitters will be able to purchase the Castle Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the “unknown” parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.

  • Castle Link compatible
  • Water resistant
  • Telemetry capable
  • Auxiliary wire
Input Voltage Range:
MIN: 2S LiPo
MAX: 3S LiPo (12.6V)
BEC Specifications:
Adjustable: 5.5V or 7.5V (2A Peak), default 5.5V. Use of external BEC is recommended if using a high torque/speed digital servo; the CC BEC or CC BEC 2.0 Waterproof are recommended
Operating Environment:
Waterproof* design allows for use in nearly any environment.
Brake:
Proportional
Reversible:
Yes, but can be disabled for racing
On/Off Switch:
Yes, waterproof*
Cooling Fan:
No
Size:
Length: 1.6" (41mm)
Width: 0.75" (19mm)
Height: 1.1" (28mm)
Weight (without wires):
34g
SKU CSE010016200
Brand CASTLE CREATIONS
