CASTLE CREATIONS

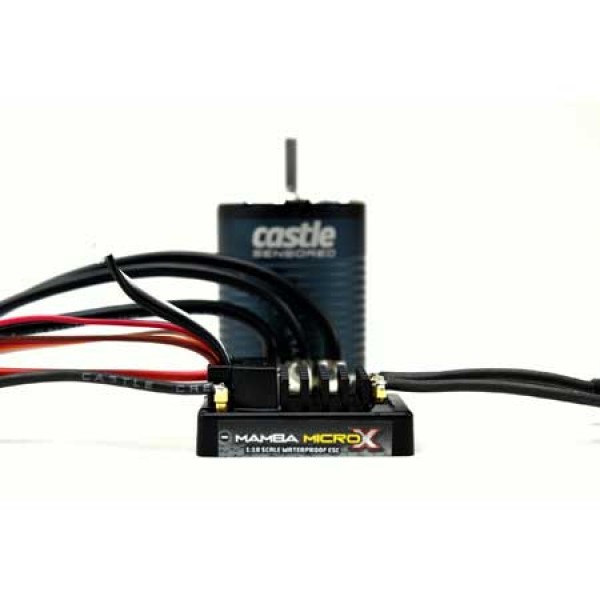

Castle Creations Mamba Micro X ESC w/ 2280kv Motor Combo
Putting the X in Extreme!
The Mamba Micro X Crawler edition is our latest offering for the crawling crowd. We have taken our new 1406 low kV crawler motors and paired it with the lightweight, small footprint Mamba Micro X ESC. This combo is ideal for low-speed crawling or trail running in vehicles weighing up to 3.6kg on 2s or 3s; it can also be used in slightly more aggressive setups like rock racing and extended hill climbing on vehicles up to 1.8kg. If you're looking for a more aggressive setup in a heavier rig, like rock racing and extended hill climbing, we recommend you run the Mamba X ESC with the same motor. Your ESC will come with our new V2.02 firmware that has been enhanced for rock crawling and sensored operation. Use of an external BEC is recommended if running a high power or digital servo.
This SPECIAL EDITION of the Mamba Micro X includes solder posts with 16 AWG wire for the motor connection; it also includes the matching 4mm female bullets to pair with the included 1406-2280kv sensored brushless motor.
The Auxiliary Advantage.
Mamba Micro X features the addition of a new, programmable Auxiliary Wire that allows you to make “on-the-go” adjustments to several settings such as torque control, and max throttle, and fine-tune the performance of your ESC right from the transmitter using an auxiliary channel on the receiver. The AUX wire function is disabled by default but is programmable via Castle Link. Once you have programmed the functionality of the AUX wire, that setting can then be adjusted on-the-go from a compatible transmitter. Try out the brand new Crawler Mode for incredible versatility!
Telemetry Capability
The Mamba Micro X is telemetry ready, which means owners of FutabaT4PX or 7PX Transmitters will be able to purchase the Castle Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the “unknown” parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.
- Castle Link compatible
- Waterproof
- Telemetry capable
- Auxiliary wire
- Sensored capable
- Electronic Speed Control (ESC)
- Input Voltage Range:
- MIN: 2S LiPo
MAX: 3S LiPo (12.6V) - BEC Specifications:
- Adjustable: 5.5V or 7.5V (2A Peak), default 5.5V. Use of external BEC is recommended if using a high torque/speed digital servo; the CC BEC or CC BEC 2.0 Waterproof are recommended
- Operating Environment:
- Waterproof* design allows for use in nearly any environment.
- Brake:
- Proportional
- Reversible:
- Yes, but can be disabled for racing
- On/Off Switch:
- Yes, waterproof*
- Cooling Fan:
- No
- Size:
- Length: 1.6" (41mm)
Width: 0.75" (19mm)
Height: 1.1" (28mm) - Weight (without wires):
- 1.20 oz. (34g)
- Connectors:
- 4mm male Castle Bullet Connectors attached to replaceable 16 gauge wire; includes Castle sensor harness.
- Motor Technical Specifications
- Input Voltage Range:
- 2S-3S LiPo
- Kv:
- 2280
- Max. RPM:
- 100000
- Size:
- Length: 49.5mm
Diameter: 36mm - Weight (w/wires):
- 197 g / 6.9oz
- Shaft Size:
- Length: 15mm
Diameter: 1/8" (3.17mm) - Mounting Hole Specifications:
- M3 @ 25mm
- Connectors:
- 4mm male Castle Bullet Connectors attached to replaceable 13 gauge wire; includes 210mm length sensored wire.
SKU | CSE010016202 |
Brand | CASTLE CREATIONS |
