Chaservo HV150 Series

  • Extreme Torque: Packs up to 33kg-cm holding force in a tiny profile.
  • Ultra-Slim 15mm Design: Replaces bulky standard servos to save immense weight.
  • High-Voltage Capable: Seamless performance ranging from 4.8V to 8.4V setups.
  • 4-Pole Brushless Motor: Unmatched response times and cooler operating temperatures.
  • Fully Programmable: Fine-tune parameter settings for personalized control layouts.

The Chaservo HV150 Series delivers a refined standard of performance, combining high torque output with a lightweight and compact design.
With a holding torque of up to 33 kg·cm and an operating torque of 24 kg·cm, this high-voltage servo is capable of replacing many larger standard servos while offering superior efficiency and precision.

Its slim housing, low weight and brushless motor technology make the HV150 an excellent choice for demanding applications where responsiveness, durability and installation flexibility are essential.

The HV150 Series is available in two versions to meet a wide range of model requirements.

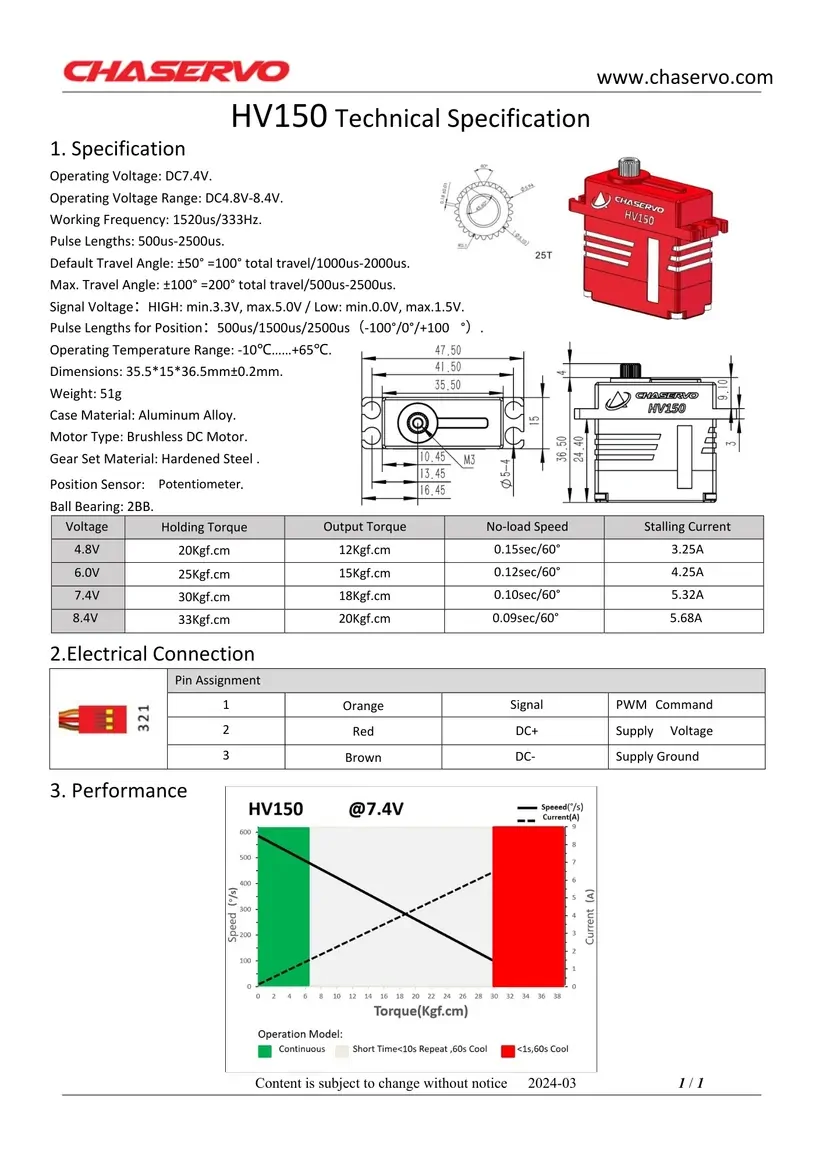

Technical Specifications

Servo Data

Parameter Specification
Model HV150H, HV150
Dimensions 35.5 × 15 × 35.5 mm
Weight 51 g
Rated Voltage DC 7.4 V
Operating Voltage DC 4.8 – 8.4 V
Spline 25T, 6 mm
Position Sensor Potentiometer
Motor Type 4-pole brushless
Operating Frequency 1520 μs / 333 Hz
Pulse Width 500 μs – 2500 μs
Programmable Yes

Materials

Component Specification
Case Material Aluminium
Gear Material Metal gear train

Holding Torque

Voltage Holding Torque
4.8 V 20.0 kg·cm
6.0 V 25.0 kg·cm
7.4 V 30.0 kg·cm
8.4 V 33.0 kg·cm

Output Torque

Voltage Output Torque
4.8 V 12.0 kg·cm
6.0 V 15.0 kg·cm
7.4 V 18.0 kg·cm
8.4 V 20.0 kg·cm

No-Load Speed

Voltage Speed
4.8 V 0.15 s / 60°
6.0 V 0.12 s / 60°
7.4 V 0.10 s / 60°
8.4 V 0.09 s / 60°

A Compact High-Voltage Solution

With its aluminium casing, durable metal gears and high-efficiency brushless motor, the Chaservo HV150 Series combines strength, speed and lightweight construction in an impressively compact format.
It is the ideal choice for pilots and builders who require high performance without compromising on size or installation options.




SKU CHA-HV150
Barcode # 4897073542768
Brand CHASERVO
