SPECIFICATIONS

  • Torque @ 4.8v - 20.0kg/278.0oz-in
  • Torque @ 6v - 25.0kg/347.0oz-in
  • Speed @ 4.8v - 0.19 sec/60 deg
  • Speed @ 6v - 0.16 sec/60 deg
  • Dimensions L x W x H (mm): 40.7 x 20.0 x 42.4
  • Weight: 69.0g

TECHNICAL DETAILS

Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 300mA @4.8V, 350mA @6.0V
Stall Current (at locked): 8000mA @4.8V, 10,000mA @6.0V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 300 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 120° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 164° (800 → 2200 µ second)
Refresh Rate: 333 Hz
Motor Type: Coreless

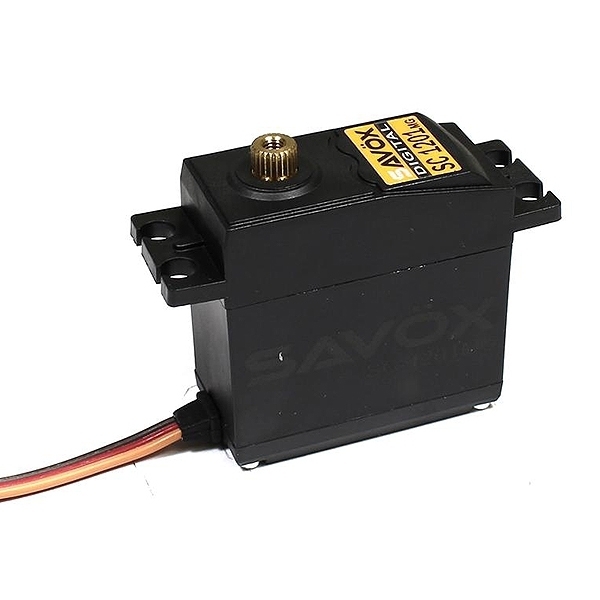

(SAV-SC1201MG)

SKU SAV-SC1201MG
Brand SAVOX
Shipping Weight 0.1000kg
