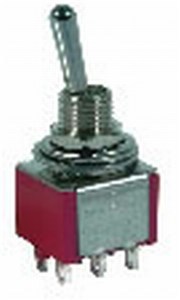

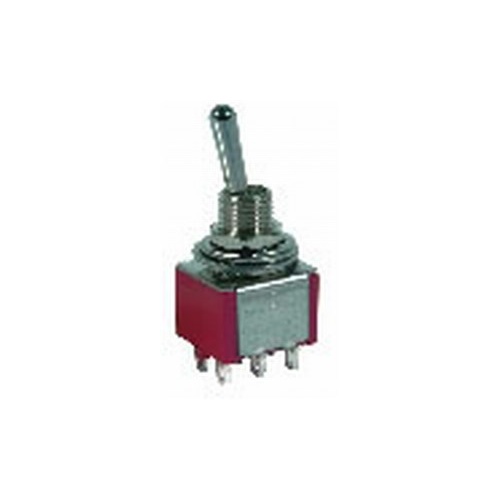

DPDT Miniature Toggle Switch - Solder Tag Centre Off(on - off - on)
More info
SOLDER TAG WITH THREADED BUSH
Brackets indicate switch position Centre Off (on - off - on)
ELECTRICAL LIFE:30,000 make-and-break cycles at full load
CONTACT RESISTANCE:20m ohm max. initial at 2-4VDC@100mA for both silver and gold plated contacts. This generally falls as switch contacts bed in.
INSULATION RESISTANCE:1,000Mohm min, any contact to body
DIELECTRIC STRENGTH:1,000V RMS @ sea level
OPERATING TEMPERATURE:-30 degrees - +85 degrees Celsius
CONTACT RATING (with resistive load) Subminiature: 1 Amp @ 250VAC Miniature: 2 Amps @ 250VAC
CONTACT RATING (with resistive load) Subminiature: 3 Amps @ 28VDC Miniature: 5 Amps @ 28VDC
SWITCH MATERIALS CASE:Diallyl Phthalate (DAP) (UL94V-0)
TOGGLE HANDLE:Brass, chrome plated
BUSHING:Brass, nickel-plated
HOUSING:Stainless Steel
TERMINALS:Switch support components: Brass, electro-tin plated (for solderability)
CONTACTS:Fixed and moving, Silver-plated over copper alloy (standard);Fixed and moving, gold plated over nickel-plated alloy.
Brackets indicate switch position Centre Off (on - off - on)
ELECTRICAL LIFE:30,000 make-and-break cycles at full load
CONTACT RESISTANCE:20m ohm max. initial at 2-4VDC@100mA for both silver and gold plated contacts. This generally falls as switch contacts bed in.
INSULATION RESISTANCE:1,000Mohm min, any contact to body
DIELECTRIC STRENGTH:1,000V RMS @ sea level
OPERATING TEMPERATURE:-30 degrees - +85 degrees Celsius
CONTACT RATING (with resistive load) Subminiature: 1 Amp @ 250VAC Miniature: 2 Amps @ 250VAC
CONTACT RATING (with resistive load) Subminiature: 3 Amps @ 28VDC Miniature: 5 Amps @ 28VDC
SWITCH MATERIALS CASE:Diallyl Phthalate (DAP) (UL94V-0)
TOGGLE HANDLE:Brass, chrome plated
BUSHING:Brass, nickel-plated
HOUSING:Stainless Steel
TERMINALS:Switch support components: Brass, electro-tin plated (for solderability)
CONTACTS:Fixed and moving, Silver-plated over copper alloy (standard);Fixed and moving, gold plated over nickel-plated alloy.
(AM-ST0356)
| SKU | AM-ST0356 |
| Model # | ST0356 |
| Barcode # | 9319236873038 |
