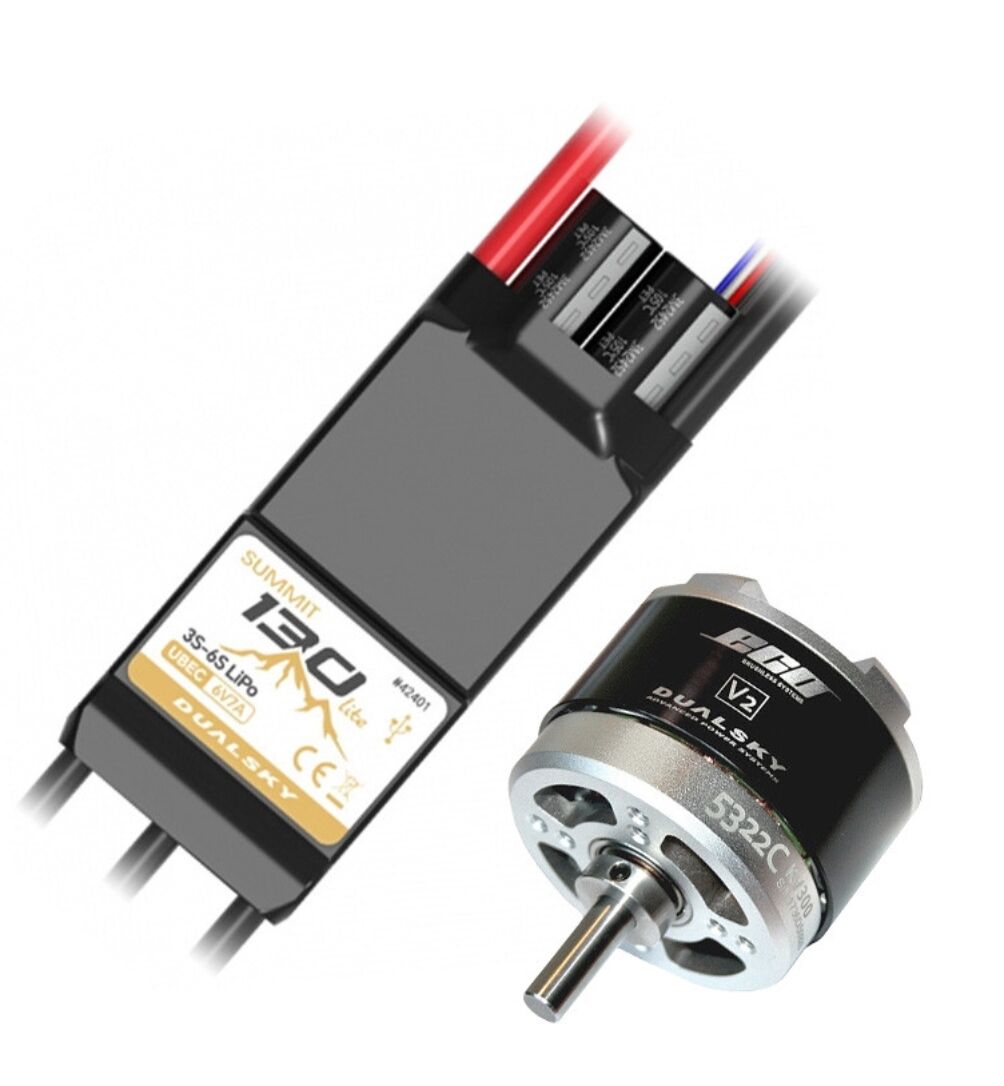

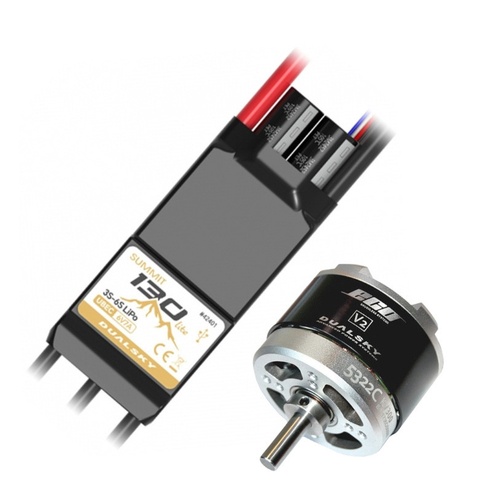

• Includes new generation Summit Lite ESC
  • Selectable rotation direction
  • Program the ESC using the Dualsky USB Link Multi Purpose (DSB22382, sold separately)
  • Integrated high-current UBEC with excellent peak performance
  • Low voltage, overheat, throttle, current, and low RPM protection.

Motor Specs

KV
380
Turns
8
Weight
510
Dimensions
63.1 x 51.5
Slots & Poles
12N14P
Ri (mOhm)
15
Io @ 10V (A)
1.6
No. of cells (LiPo)
6
Max. Efficiency Current
54
Max. Burst Current (15S) [A]
90
Max Power (15S) [W]
2160
Max. Torque
2.72
Shaft Diameter
8mm
Mounting Holes Pitch
32/44
Input Connectors
GV4.0
Recommended ESC
XC10036HV
Propeller
6S: 19x12E or 20x10E
Class
1.20 - 1.40 4-stroke e.g. Sebart Mythos 125E

ESC Specs

Dimensions (LxWxH)
84 x 36 x 14.2mm (w/o wire)
Weight (w/ wire)
105.5g
Number of Cells
3S-6S LiPo, 11.1V-22.2V
Continuous Current
130A
Burst Current
160A
Resistance (Ri) (mOhm)
~1.2 milliohms
Battery eliminate circuit BEC
6.0V, Switching mode, 7A const./10A peaks
Signal & Frequency
Default = PWM(upto 333Hz), THR calibration Enabled
Timing System
Programmable (Default=18°)
Motor Direction
Normal - Reversed - Bidirectional (4D flight & EDF Braking)
Programming
USBLINK MP (BLHeli32_Suite)
Start Power
50% (Programmable)
Work Frequency
LOW = 24KHZ, High = 24KHz (Programmable)
Telemetry
ON (Auto telemetry enabled, protocol=KISS)
Energy Recovery
YES (Default-Disable, freewheel)
Brake On Stop
Default=OFF (Adjustable)
Maximum Speeds
PWM at 8KHz: 510k erpm, Multishot at 16kHz: 450k erpm / Dshot at 8kHz: 470k erpm / Dshot at 16kHz with sine: 280k erpm
Low Voltage Protection
Programmable (Default=3.00V/cell)
Acceleration
Default =125ms (Programmable)
Overheat Protection
YES(Default=140 C)
Water & Dust Proof
IP43
Beacon Beeps
YES, 20 Mins
Input Wires
10AWG, 200mm
Wires to Motor
12AWG, 100mm w/ DB4F
Signal Wires
JR, 350mm + 1pin telemetry
Tested Motors
Dualsky EG, EA V3 series, Dualsky EVO V2 line, Dualsky GA line. * Please follow the parameter compatibility requirements of the motor
Applications
Middle class electric powered gliders, 3D/ sports aircraft, F3As and Fixed wing UAVs/ eVOLs
SKU DSB59316
Barcode # 6941047193161
Brand DUALSKY
