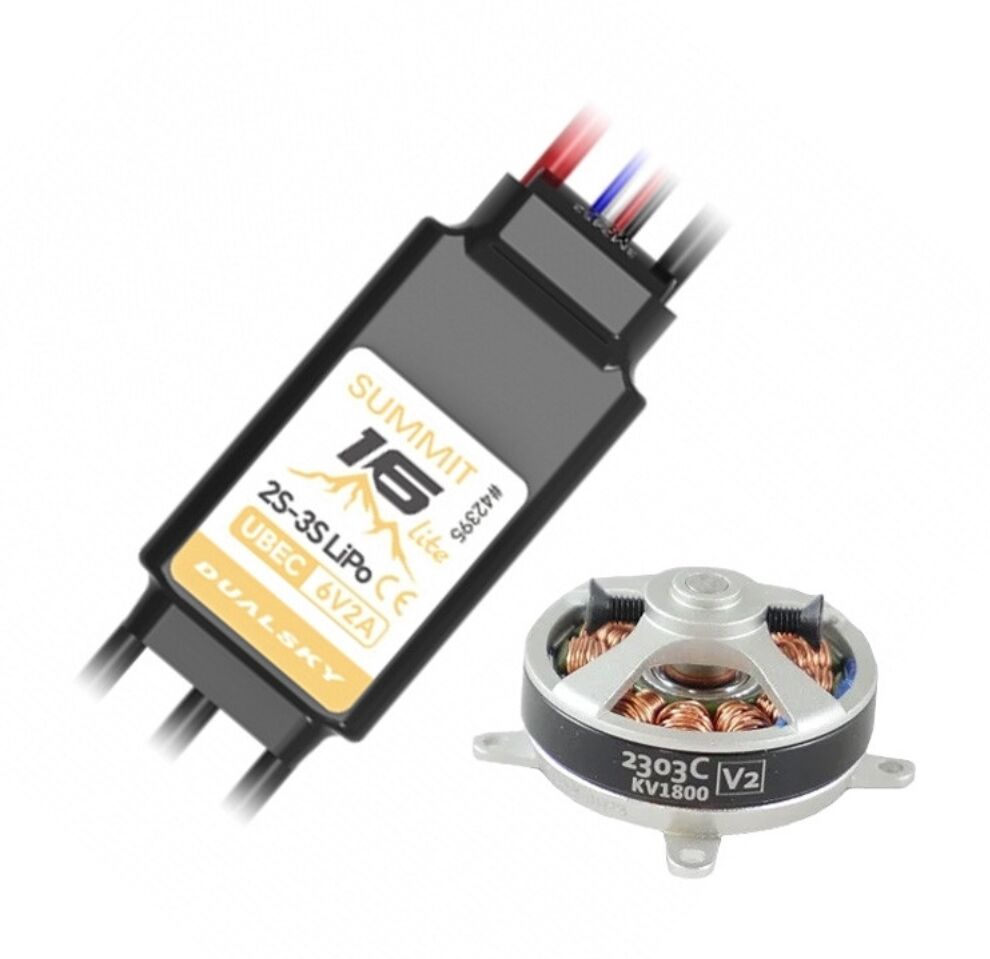

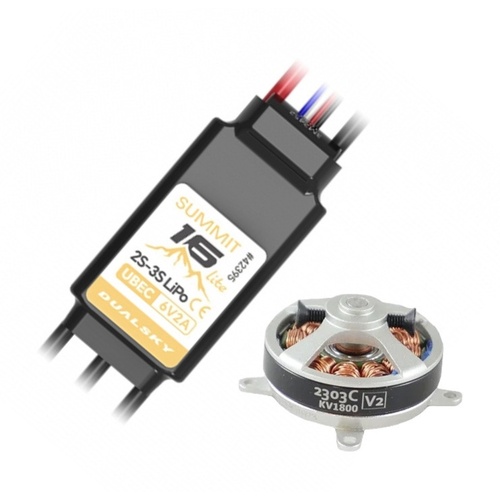

• Includes new generation Summit Lite ESC
  • Selectable rotation direction
  • Program the ESC using the Dualsky USB Link Multi Purpose (DSB22382, sold separately)
  • Integrated high-current UBEC with excellent peak performance
  • Low voltage, overheat, throttle, current, and low RPM protection.

Motor Specs

KV
1800
Turns
25
Weight
19g
Dimensions
28.5 x 15.7mm
Slots & Poles
12N14P
Ri (mOhm)
276
Io @ 10V (A)
0.4
No. of Cells (LiPo)
2..3
Max. Efficiency Current [A]
6
Max Burst Current (15S) [A]
10
Max. Power (15S) [W]
80
Max Torque [N*M]
0.064
Shaft Diameter (mm)
3.175
Mounting Holes Pitch
32
Input Connectors
GC2.0
Recommended ESC
XC-12-LITE or XC1010BA
Propeller
2S: PT 9x3E, 8x4.7SF
3S: 5x3E, 5.1x4.5E
Class
100-150g airplanes e.g. F3P or indoor freestyle

ESC Specs

Dimensions (LxWxH)
32 x 15 x 5.5mm (w/o wire)
Weight (w/ wire)
10.2g
Number of Cells
2S-3S LiPo, 7.4V-11.1V
Continuous Current
16A
Burst Current
30A
Resistance (Ri) (mOhm)
~4.8 milliohms
Battery eliminate circuit BEC
6.0V, Switching mode, 2A const./4A peaks
Signal & Frequency
Default = PWM(upto 333Hz), THR calibration Enabled
Timing System
Programmable (Default=16°)
Motor Direction
Normal - Reversed - Bidirectional (4D flight & EDF Braking)
Programming
USBLINK MP (BLHeli32_Suite)
Start Power
100% (Programmable)
Work Frequency
LOW = 24KHZ, High = 24KHz (Programmable)
Telemetry
ON (Auto telemetry enabled, protocol=KISS)
Energy Recovery
YES (Default-Disable, freewheel)
Brake On Stop
Default=OFF (Adjustable)
Maximum Speeds
PWM at 8KHz: 510k erpm, Multishot at 16kHz: 450k erpm / Dshot at 8kHz: 470k erpm / Dshot at 16kHz with sine: 280k erpm
Low Voltage Protection
Programmable (Default=3.00V/cell)
Acceleration
Default = Maximum (Programmable)
Overheat Protection
YES(Default=140 C)
Water & Dust Proof
IP43
Beacon Beeps
YES, 20 Mins
Input Wires
20AWG, 100mm w/ JST
Wires to Motor
20AWG, 50mm w/ DB2F
Signal Wires
JR, 150mm + 1pin telemetry
Tested Motors
Dualsky EG, EA V3 series, Dualsky EVO V2 line, Dualsky GA line. * Please follow the parameter compatibility requirements of the motor
Applications
Middle class electric powered gliders, 3D/ sports aircraft, F3As and Fixed wing UAVs/ eVOLs
SKU DSB59303
Barcode # 6941047193031
Brand DUALSKY
