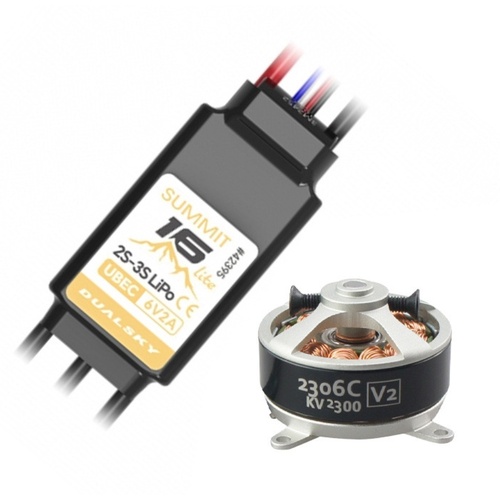

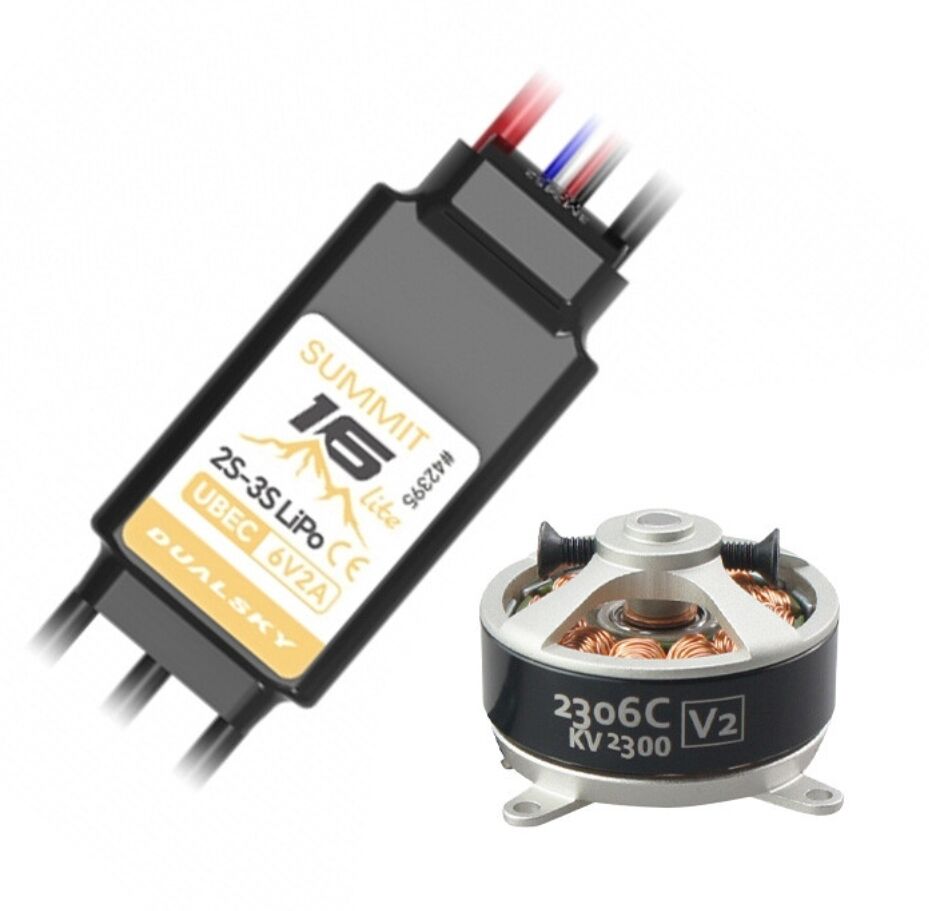

• Includes new generation Summit Lite ESC
  • Selectable rotation direction
  • Program the ESC using the Dualsky USB Link Multi Purpose (DSB22382, sold separately)
  • Integrated high-current UBEC with excellent peak performance
  • Low voltage, overheat, throttle, current, and low RPM protection.

Motor Specs

Kv
2300
Turns
9.5
Weight
30 g
Dimensions
28.8 x 20.9 mm
Slots & Poles
12N14P
Ri (mOhm)
61.2
Io @ 10V
1.1 A
No. of Cells
2 - 3
Max. Efficiency Current
13.5 A
Max. Burst Current (15S)
22.5 A
Max. Power
180 W
Max. Torque
0.112
Shaft Diameter
3.175 mm
Mounting Holes
32
Input Connectors
GC2.0
Recommended ESC
XC-22-LITE or XC1812BA
Propeller
2S: 8x4E, PT10x30i
3S: 5.1x4.5E, 6x3E
Class
200-300g aiplanes e.g. Popular EPP profile planes

ESC Specs

Dimensions (LxWxH)
32 x 15 x 5.5mm (w/o wire)
Weight (w/ wire)
10.2g
Number of Cells
2S-3S LiPo, 7.4V-11.1V
Continuous Current
16A
Burst Current
30A
Resistance (Ri) (mOhm)
~4.8 milliohms
Battery eliminate circuit BEC
6.0V, Switching mode, 2A const./4A peaks
Signal & Frequency
Default = PWM(upto 333Hz), THR calibration Enabled
Timing System
Programmable (Default=16°)
Motor Direction
Normal - Reversed - Bidirectional (4D flight & EDF Braking)
Programming
USBLINK MP (BLHeli32_Suite)
Start Power
100% (Programmable)
Work Frequency
LOW = 24KHZ, High = 24KHz (Programmable)
Telemetry
ON (Auto telemetry enabled, protocol=KISS)
Energy Recovery
YES (Default-Disable, freewheel)
Brake On Stop
Default=OFF (Adjustable)
Maximum Speeds
PWM at 8KHz: 510k erpm, Multishot at 16kHz: 450k erpm / Dshot at 8kHz: 470k erpm / Dshot at 16kHz with sine: 280k erpm
Low Voltage Protection
Programmable (Default=3.00V/cell)
Acceleration
Default = Maximum (Programmable)
Overheat Protection
YES(Default=140 C)
Water & Dust Proof
IP43
Beacon Beeps
YES, 20 Mins
Input Wires
20AWG, 100mm w/ JST
Wires to Motor
20AWG, 50mm w/ DB2F
Signal Wires
JR, 150mm + 1pin telemetry
Tested Motors
Dualsky EG, EA V3 series, Dualsky EVO V2 line, Dualsky GA line. * Please follow the parameter compatibility requirements of the motor
Applications
Middle class electric powered gliders, 3D/ sports aircraft, F3As and Fixed wing UAVs/ eVOLs
SKU DSB59304
Barcode # 6941047193048
Brand DUALSKY
