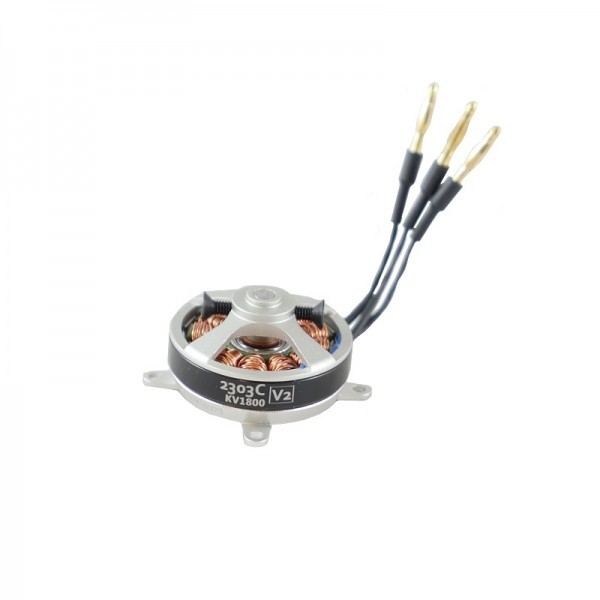

Dualsky 2303C 1800kv Brushless Motor

  • Traditional Dualsky colour matching, anodised and matte finishing
  • Motor structure increased by 25%
  • High strength
  • High temperature resistant
  • 1800 kV
  • Highly efficient
KV
1800
Turns
25
Weight
19g
Dimensions
28.5 x 15.7mm
Slots & Poles
12N14P
Ri (mOhm)
276
Io @ 10V (A)
0.4
No. of Cells (LiPo)
2..3
Max. Efficiency Current [A]
6
Max Burst Current (15S) [A]
10
Max. Power (15S) [W]
80
Max Torque [N*M]
0.064
Shaft Diameter (mm)
3.175
Mounting Holes Pitch
32
Input Connectors
GC2.0
Recommended ESC
XC-12-LITE or XC1010BA
Propeller
2S: PT 9x3E, 8x4.7SF
3S: 5x3E, 5.1x4.5E
Class
100-150g airplanes e.g. F3P or indoor freestyle
SKU DSXM51636
Barcode # 6941047116368
Brand DUALSKY
Shipping Weight 0.0500kg
