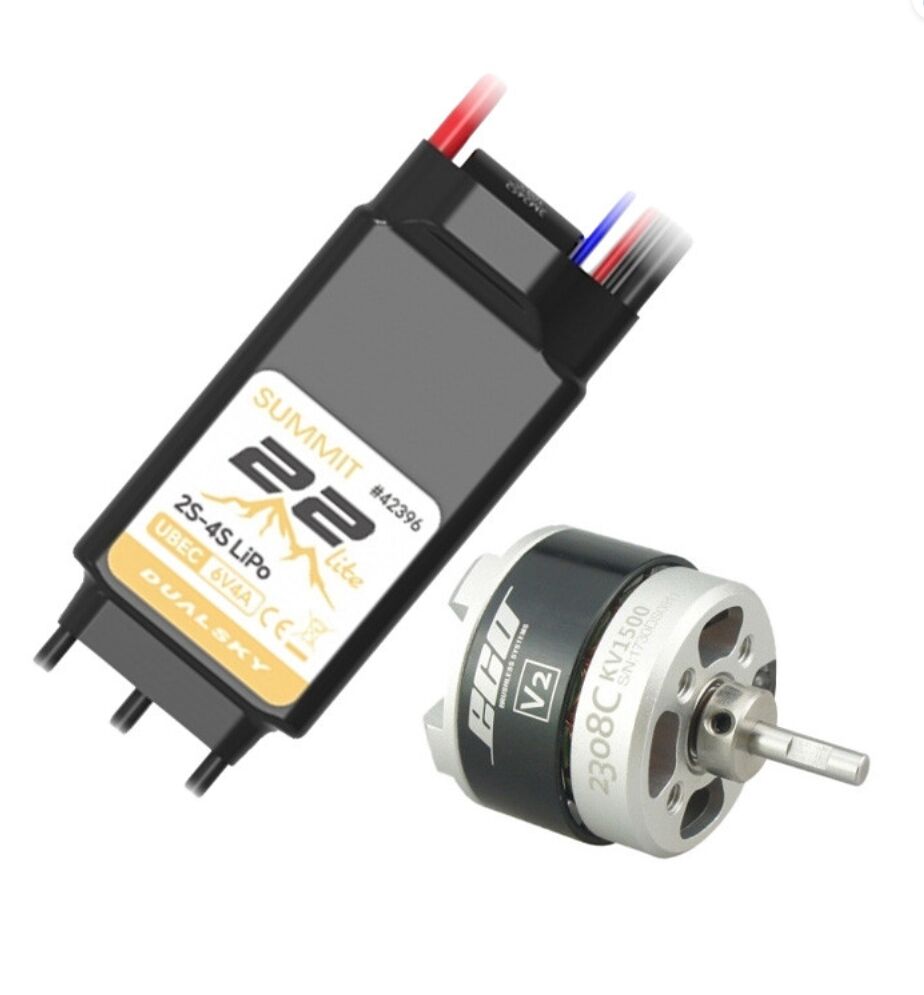

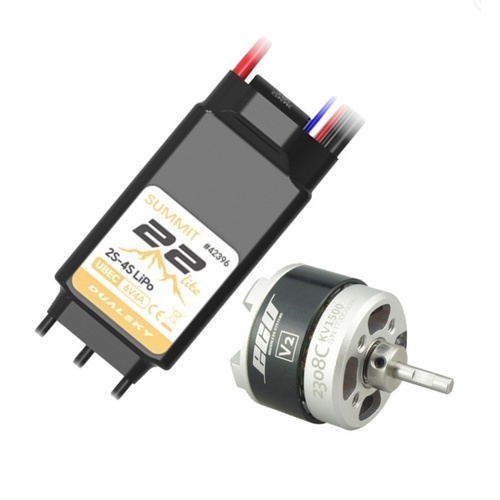

• Includes new generation Summit Lite ESC
  • Selectable rotation direction
  • Program the ESC using the Dualsky USB Link Multi Purpose (DSB22382, sold separately)
  • Integrated high-current UBEC with excellent peak performance
  • Low voltage, overheat, throttle, current, and low RPM protection.

Motor Specs

KV
1180
Slots & Poles
12N14P
Ri (mOhm)
128.5
Io@10V (A)
0.5
Efficiency Current (A)
12
Burst Current (15S) [W]
20
Peak Power (15S) [A]
240
Peak Torque [N*M]
0.194
Battery
2S or 3S LiPo
Weight
47
Dimensions (DxL)
28.8x24.9mm
Shaft diameter
3.175
Mounting holes
16/16mm
Input connectors
GC3.5
Reccomended propellers (2S)
11x6E, 10x8E
Reccomended propellers (3S)
9x4.7SF, 9x6E
Recommended ESC
XC-22-LITE or XC2512BA
Application
400-600g, 300E class

ESC Specs

Dimensions (LxWxH)
44 x 23 x 7.2mm (w/o wire)
Weight (w/ wire)
18.2g
Number of Cells
2S-4S LiPo, 7.4V-14.8V
Continuous Current
22A
Burst Current
40A
Resistance (Ri) (mOhm)
~6.0 milliohms
Battery eliminate circuit BEC
6.0V, Switching mode, 4A const./8A peaks
Signal & Frequency
Default = PWM(upto 333Hz), THR calibration Enabled
Timing System
Programmable (Default=16°)
Motor Direction
Normal - Reversed - Bidirectional (4D flight & EDF Braking)
Programming
USBLINK MP (BLHeli32_Suite)
Start Power
100% (Programmable)
Work Frequency
LOW = 24KHZ, High = 24KHz (Programmable)
Telemetry
ON (Auto telemetry enabled, protocol=KISS)
Energy Recovery
YES (Default-Disable, freewheel)
Brake On Stop
Default=OFF (Adjustable)
Maximum Speeds
PWM at 8KHz: 510k erpm, Multishot at 16kHz: 450k erpm / Dshot at 8kHz: 470k erpm / Dshot at 16kHz with sine: 280k erpm
Low Voltage Protection
Programmable (Default=3.00V/cell)
Acceleration
Default = Maximum (Programmable)
Overheat Protection
YES(Default=140 C)
Water & Dust Proof
IP43
Beacon Beeps
YES, 20 Mins
Input Wires
18AWG, 120mm
Wires to Motor
20AWG, 70mm w/ DB2F
Signal Wires
JR, 200mm + 1pin telemetry
Tested Motors
Dualsky EG, EA V3 series, Dualsky EVO V2 line, Dualsky GA line. * Please follow the parameter compatibility requirements of the motor
Applications
Middle class electric powered gliders, 3D/ sports aircraft, F3As and Fixed wing UAVs/ eVOLs
SKU DSB59305
Barcode # 6941047193055
Brand DUALSKY
