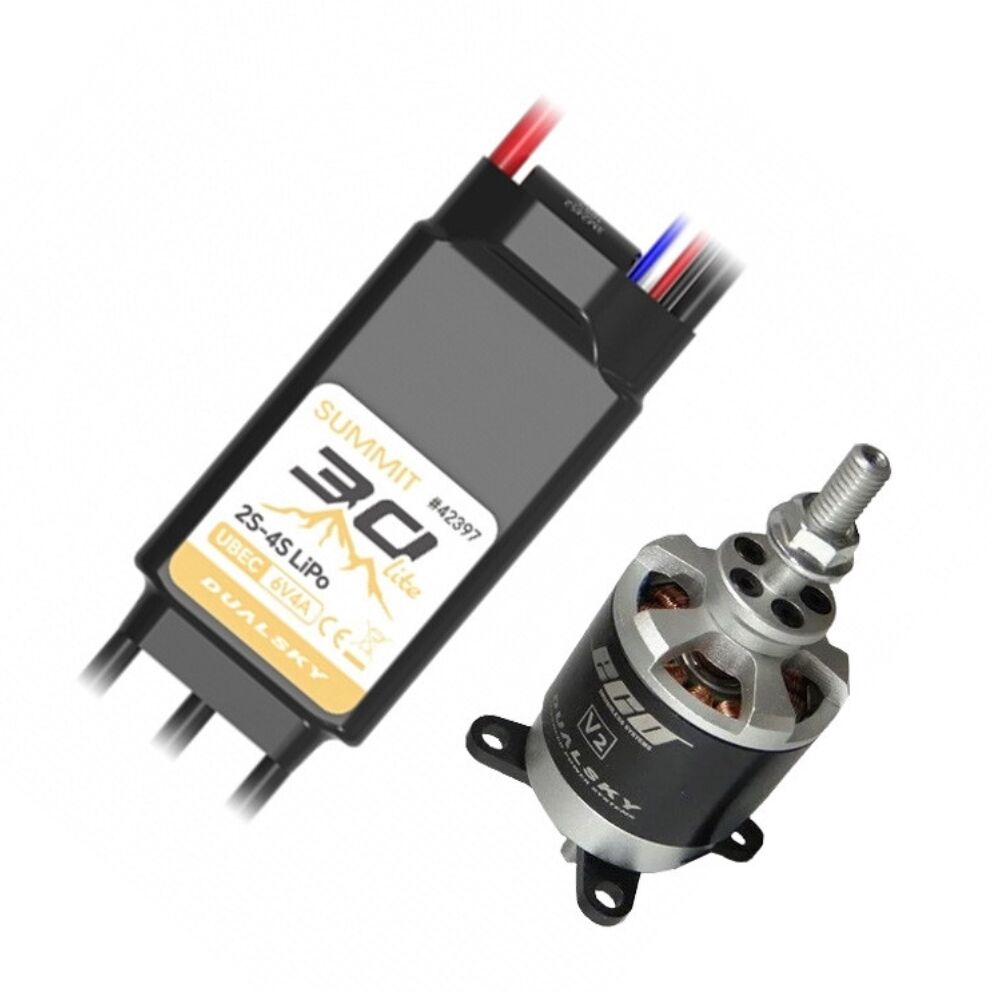

• Includes new generation Summit Lite ESC
  • Selectable rotation direction
  • Program the ESC using the Dualsky USB Link Multi Purpose (DSB22382, sold separately)
  • Integrated high-current UBEC with excellent peak performance
  • Low voltage, overheat, throttle, current, and low RPM protection.

Motor Specs

KV
1250
Turns
6.5
Weight
72g
Dimensions (D x L)
28.8 x 32.9mm
Slots & Poles
12N14P
Ri (mOhm)
52.2
Io @10V (A)
1
No. of Cells
2 - 3
Max. Efficiency Current (15S) [A]
18
Max. Burst Current (15S) [A]
30
Max. Power (15S)[W]
360
Max Torque [NxM]
0.28
Shaft Diameter (mm)
3.175
Mounting holes pitch
16/16
Input Connectors
GC3.5
Recommended ESC
XC-45-LITE or XC3012BA
Propeller
2S: 12x6E, 13x6.5E
3S: 9x6E, 10x7E
Class
600-1400g airplanes

ESC Specs

Dimensions (LxWxH)
44 x 23 x 7.2mm (w/o wire)
Weight (w/ wire)
19.7g
Number of Cells
2S-4S LiPo, 7.4V-14.8V
Continuous Current
30A
Burst Current
50A
Resistance (Ri) (mOhm)
~2.8 milliohms
Battery eliminate circuit BEC
6.0V, Switching mode, 4A const./8A peaks
Signal & Frequency
Default = PWM(upto 333Hz), THR calibration Enabled
Timing System
Programmable (Default=16°)
Motor Direction
Normal - Reversed - Bidirectional (4D flight & EDF Braking)
Programming
USBLINK MP (BLHeli32_Suite)
Start Power
100% (Programmable)
Work Frequency
LOW = 24KHZ, High = 24KHz (Programmable)
Telemetry
ON (Auto telemetry enabled, protocol=KISS)
Energy Recovery
YES (Default-Disable, freewheel)
Brake On Stop
Default=OFF (Adjustable)
Maximum Speeds
PWM at 8KHz: 510k erpm, Multishot at 16kHz: 450k erpm / Dshot at 8kHz: 470k erpm / Dshot at 16kHz with sine: 280k erpm
Low Voltage Protection
Programmable (Default=3.00V/cell)
Acceleration
Default = Maximum (Programmable)
Overheat Protection
YES(Default=140 C)
Water & Dust Proof
IP43
Beacon Beeps
YES, 20 Mins
Input Wires
18AWG, 120mm
Wires to Motor
18AWG, 70mm w/ DB3F
Signal Wires
JR, 200mm + 1pin telemetry
Tested Motors
Dualsky EG, EA V3 series, Dualsky EVO V2 line, Dualsky GA line. * Please follow the parameter compatibility requirements of the motor
Applications
Middle class electric powered gliders, 3D/ sports aircraft, F3As and Fixed wing UAVs/ eVOLs
SKU DSB59309
Barcode # 6941047193093
Brand DUALSKY
