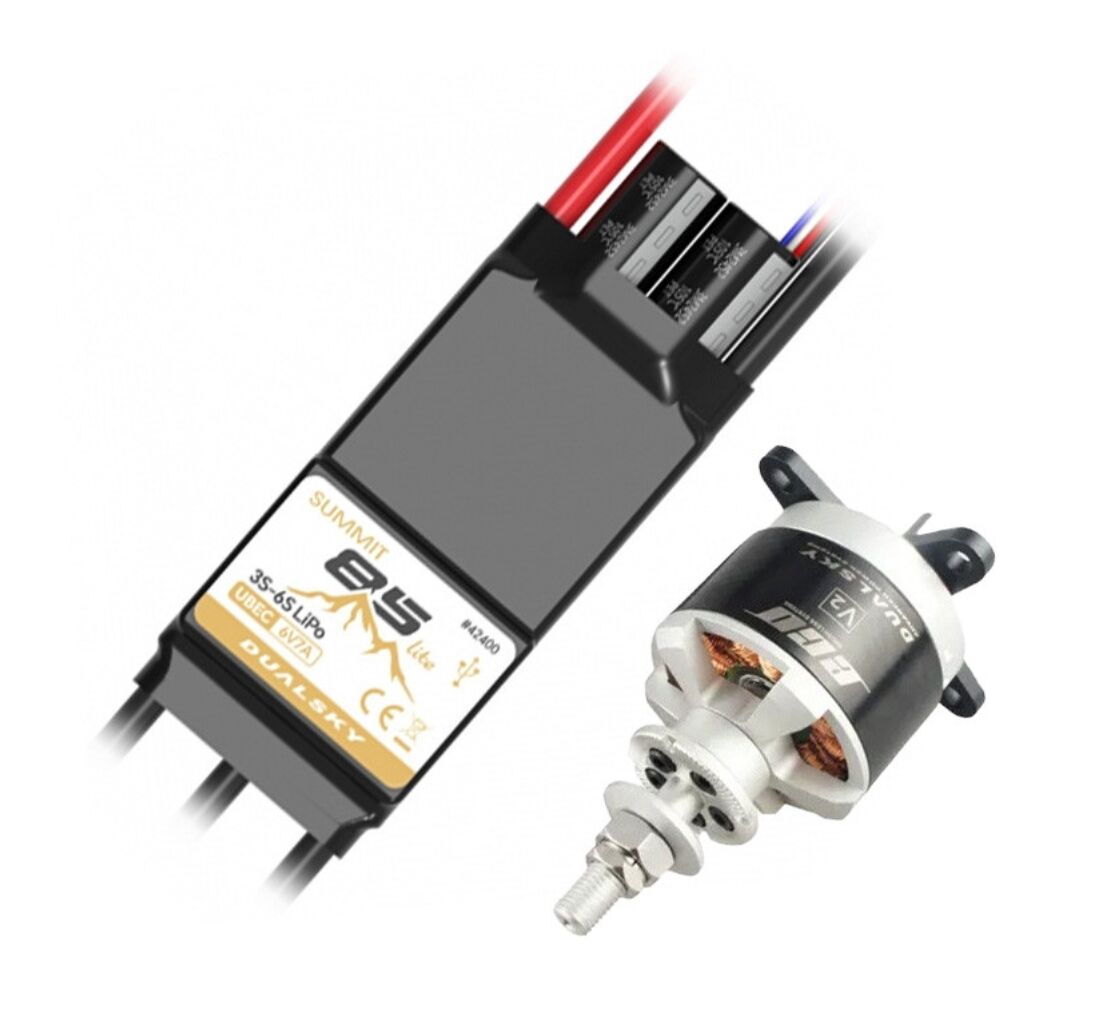

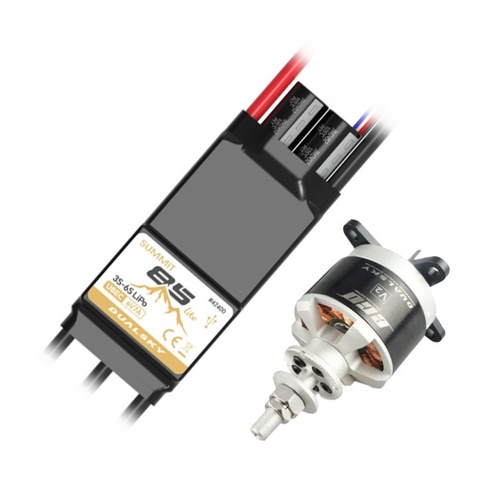

• Includes new generation Summit Lite ESC
  • Selectable rotation direction
  • Program the ESC using the Dualsky USB Link Multi Purpose (DSB22382, sold separately)
  • Integrated high-current UBEC with excellent peak performance
  • Low voltage, overheat, throttle, current, and low RPM protection.

Motor Specs

KV
560
Turns
7
Weight
280 g
Dimensions (D x L)
49.5 x 45.2 mm
Slots & Poles
12N14P
Ri (mOhm)
22
Io @ 10V
1.3 A
No. of Cells
5 - 6
Max. Efficiency Current
42 A
Max. Burst Current (15S)
70 A
Max. Power (15S)
1400 W
Max. Torque (N*M)
1.43
Shaft Diameter
6 mm
Mounting Holes Pitch
30/30
Input Connectors
GC4.0
Recommended ESC
XC8018BA
Propeller
5S: 16x9E, 15x8E
6S: 14x6E, 13x8E
Class
.65-.70 4-Stroke

ESC Specs

Dimensions (LxWxH)
84 x 36 x 9.5mm (w/o wire)
Weight (w/ wire)
84g
Number of Cells
3S-6S LiPo, 11.1V-22.2V
Continuous Current
85A
Burst Current
110A
Resistance (Ri) (mOhm)
~2.4 milliohm
Battery eliminate circuit BEC
6.0V, Switching mode, 7A const./10A peaks
Signal & Frequency
Default = PWM(upto 333Hz), THR calibration Enabled
Timing System
Programmable (Default=18°)
Motor Direction
Normal - Reversed - Bidirectional (4D flight & EDF Braking)
Programming
USBLINK MP (BLHeli32_Suite)
Start Power
50% (Programmable)
Work Frequency
LOW = 24KHZ, High = 24KHz (Programmable)
Telemetry
ON (Auto telemetry enabled, protocol=KISS)
Energy Recovery
YES (Default-Disable, freewheel)
Brake On Stop
Default=OFF (Adjustable)
Maximum Speeds
PWM at 8KHz: 510k erpm, Multishot at 16kHz: 450k erpm / Dshot at 8kHz: 470k erpm / Dshot at 16kHz with sine: 280k erpm
Low Voltage Protection
Programmable (Default=3.00V/cell)
Acceleration
Default =125ms (Programmable)
Overheat Protection
YES(Default=140 C)
Water & Dust Proof
IP43
Beacon Beeps
YES, 20 Mins
Input Wires
12AWG, 200mm
Wires to Motor
12AWG, 100mm w/ DB4F
Signal Wires
JR, 350mm + 1pin telemetry
Tested Motors
Dualsky EG, EA V3 series, Dualsky EVO V2 line, Dualsky GA line. * Please follow the parameter compatibility requirements of the motor
Applications
Middle class electric powered gliders, 3D/ sports aircraft, F3As and Fixed wing UAVs/ eVOLs
SKU DSB59313
Barcode # 6941047193130
Brand DUALSKY
