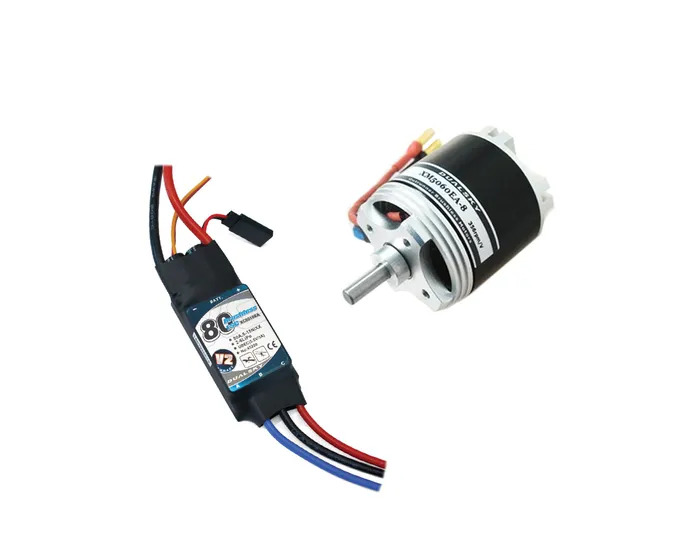

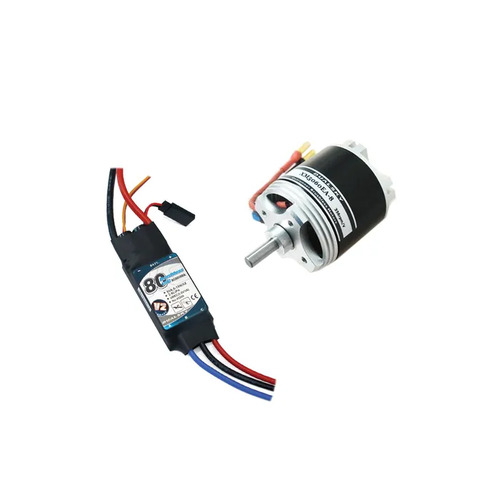

This Dualsky 70E Tuning Combo features the ECO 4120 V2 500kv motor and 80A ESC. It is suitable for the Sebart 50E series.

Specs

Motor Specs

KV
500
Turns
8
Weight
280g
Size (D x L)
49.5 x 45.2
Slots & Poles
12N14P
Ri (mOhm)
25
Io @ 10V (A)
1.1
No. of Cells (LiPo)
5S, 6S
Max. Efficiency Current (15S) [A]
36
Max. Burst Current (15S) [A]
60
Max. Power (15S) [W]
1440
Max. Torque
1.38
Shaft Diameter
6
Mounting Holes Pitch
30/30
Input Connectors
GC4.0
Recommended ESC
XC-65-LITE or XC6018BA
Propeller
5S: 16x8E, 15x8E or 6S: 14x7E, 15x8E
Class
.46-.55 2-stroke

ESC Specs

Dimensions (L x W x D)
75 x 30 x 14 mm
Weight
71 g
Number of Cells
NiXX 6-18, 7.2-21.6V
LiPo 2-6, 7.4-22.2V
Resistance (Ri) mOhm
0.0016
Max Cont. Current
80 A
Max Cont. Output
1680 W
Max. Burst Current
100 A
Max Burst Output
2040 W
BEC / Dissipative Power
5.5V/3A (Switching)
Programmable
Throttle + ProgCARD + USB LINK
Input Wires
150 mm 12AWG, DC3
Output Wires
90 mm, 14AWG, DB4
Signal Wire
300 mm JR
Applications
.70 Class Aerobatic
SKU DSTC.6A.70E
Barcode # 6941047191563
Brand DUALSKY
