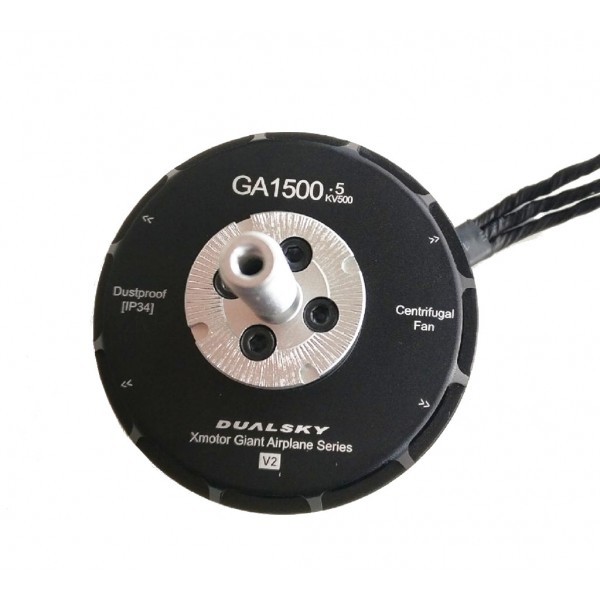

DUALSKY BL motors are precision mechanical masterpieces, are precisely manufactured and have an excellent efficiency. A wide range of motor types offers a drive for almost every application. Series "GA" is specifically designed for large-scale models and offers outstanding performance and a robust stainless steel motor shaft.
  • Desgined for 70E class 3D airplanes
  • High strength stainless steel shaft
  • Weights only 280g
RPM/KV
500 RPM/V
Weight w/o accessories
280g
Outer diameter
69mm
Length w/ mounts
57mm
Length (Overall)
89mm
Diameter of shaft
8mm (internal)
8mm (output)
Mounting holes pitch
55 - 58mm
Idle current @ 10V
2A
Nominal Voltage
18.5V - 22.2V, 5S-6S LiPo
Peak Power (15s)
1500W
Bursts current (15s)
70A
Propeller
15x8 for best efficiency
16x8 for pilots performance
17x8 for extreme thrust
Weight of sports airplane
Up to 4.5kg
Weight of 3D airplane
Up to 3.0kg
Slots, Poles
24, 28
SKU DSXM51548
Brand Dualsky
