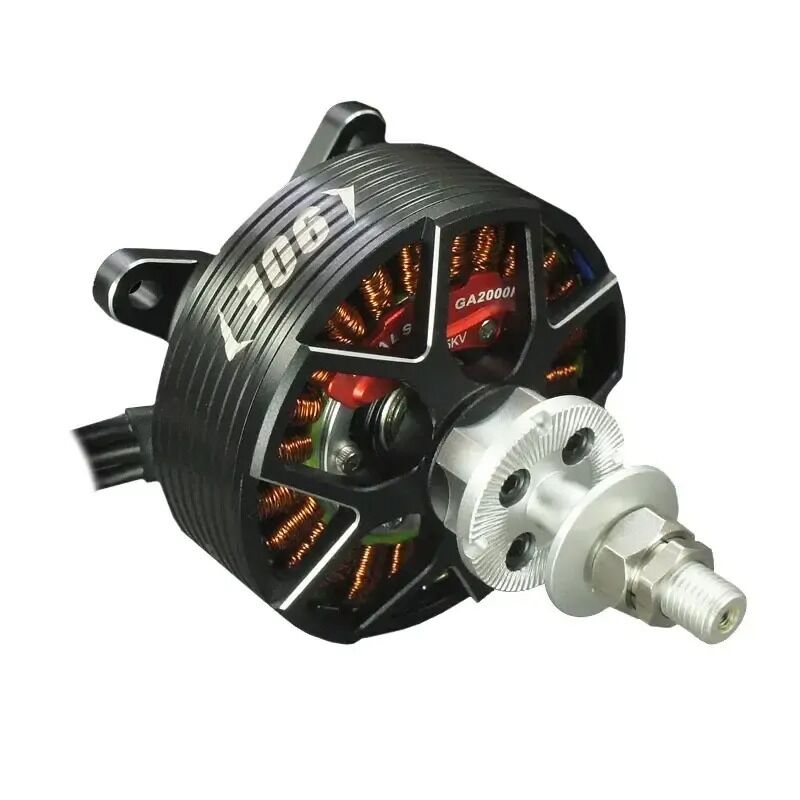

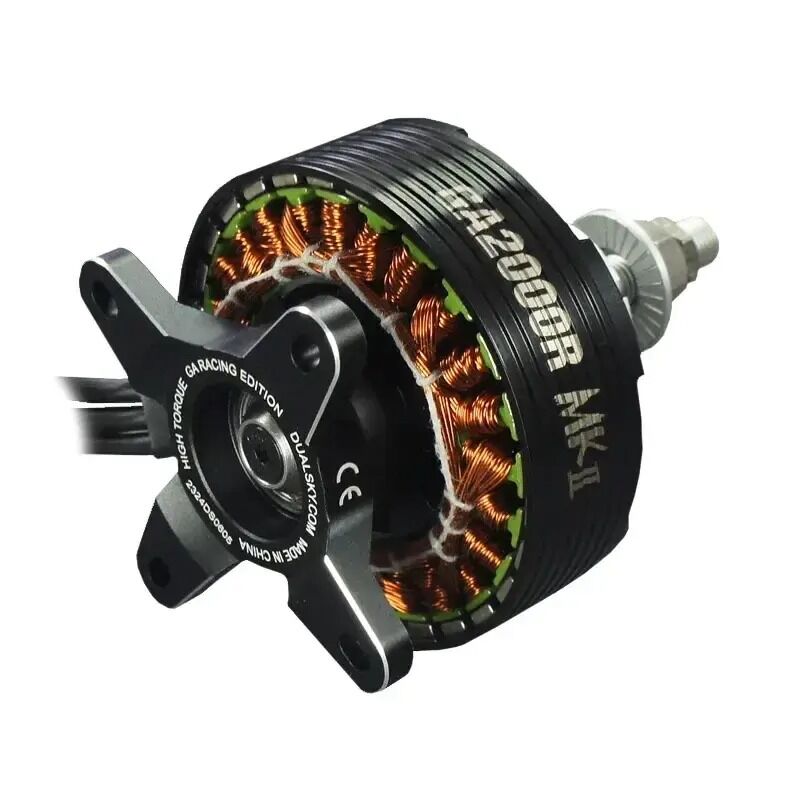

Dualsky GA2000R.7 V2 465kv 20cc Brushless Motor

The Dualsky GA2000R.7 V2 465kv 20cc Brushless Motor is part of the Dualsky Giant Airplane series and is suited for 25cc class aircraft.



Features

  • Suitable for 25cc class (equivalent to .125E) 3D airplane up to 67"-69" wingspan
  • Integrated motor mount
  • Four sets of locking bolts included for forward mounting



Product Specifications

  • KV: 465
  • Weight: 375 g
  • Dimensions (D x L): 69 x 63 mm
  • Length (Overall): 95 mm
  • Diameter of Shaft: 8 mm (internal), 8 mm (output)
  • Spec of Mounting Holes: 55 - 58
  • Slots & Poles: 24, 28
  • Io@10V: 2.52 A
  • Ri (mOhm): 12
  • No Of Cells: 22.2V, 6S LiPo
  • Peak Power (15S): 2880 W
  • Burst Current (15S) & Peak Torque: 120A, 3.08N*M
  • Cruising Power (8 mins): 1200 W
  • Recommended ESC: Summit 100L / Summit 120
  • Recommended Propeller: 6S: 17x8E, 18x8E, 18x10E
  • Weight of sports airplane: Up to 9kg
  • Weight of 3D airplane: Up to 4.1 kg
  • Application: For 25cc class (equivalent to .125E), 3D airplane (up to 67"-69" wingspan)
SKU DSXM52249
Barcode # 6941047122499
Brand DUALSKY
