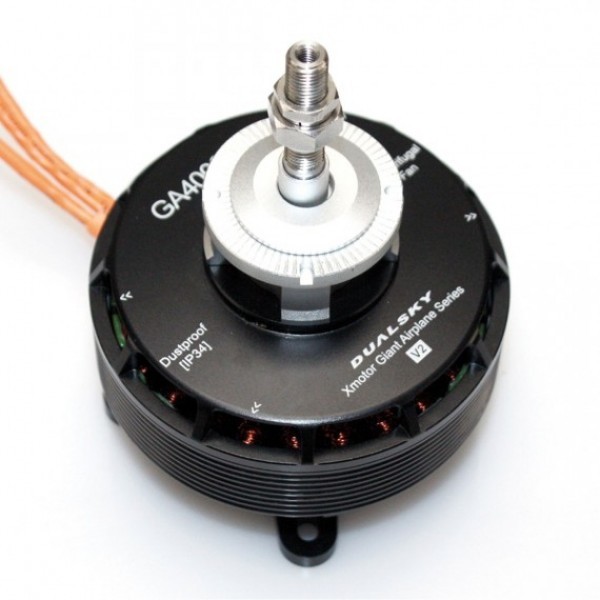

Dualsky GA4000.7 Brushless Aircraft Motor, 40cc, 180kv
More infoDUALSKY BL motors are precision mechanical masterpieces, are precisely manufactured and have an excellent efficiency. A wide range of motor types offers a drive for almost every application. Series "GA" is specifically designed for large-scale models and offers outstanding performance, a robust stainless steel motor shaft, and in some types a pre-flanged motor bracket. Corresponding small material is included in the delivery.
(DSXM51553)
- Designed for 3D airplanes or UAV systems
- Can serve as an alternative for 35-40cc class gas engine
- Brushless
- Weighs only 700g
- RPM/KV
- 180 RPM/V @7T
- Weight w/o accessories
- 700g
- Outer diameter
- 89mm
- Length w/ mounts
- 80.2mm
- Length (Overall)
- 123mm
- Diameter of shaft
- 12mm (internal)
8mm (output) - Mounting holes pitch
- 71 - 75mm
- Idle current @ 10V
- 1.3A
- Nominal Voltage
- 30 - 51V, 10 - 12S LiPo
- Peak Power (15s)
- 4300W (5.8HP) @ 8000RPM
- Bursts current (15s)
- 100A
- Recommended ESC
- 2100 W(2.8HP)
- Propeller
- 20x10, 20x12, 21x12, 22x10
XOAR 22x10 Wooden, 87A@44.4V
APC 21x12WE, 13kg 95A @44.4V - Weight of sports airplane
- Up to 10.5kg
- Weight of 3D airplane
- Up to 6.8kg
- Slots, Poles
- 24, 28
| SKU | DSXM51553 |
| Barcode # | 6941047115538 |
| Brand | Dualsky |
| Shipping Weight | 3.0000kg |
