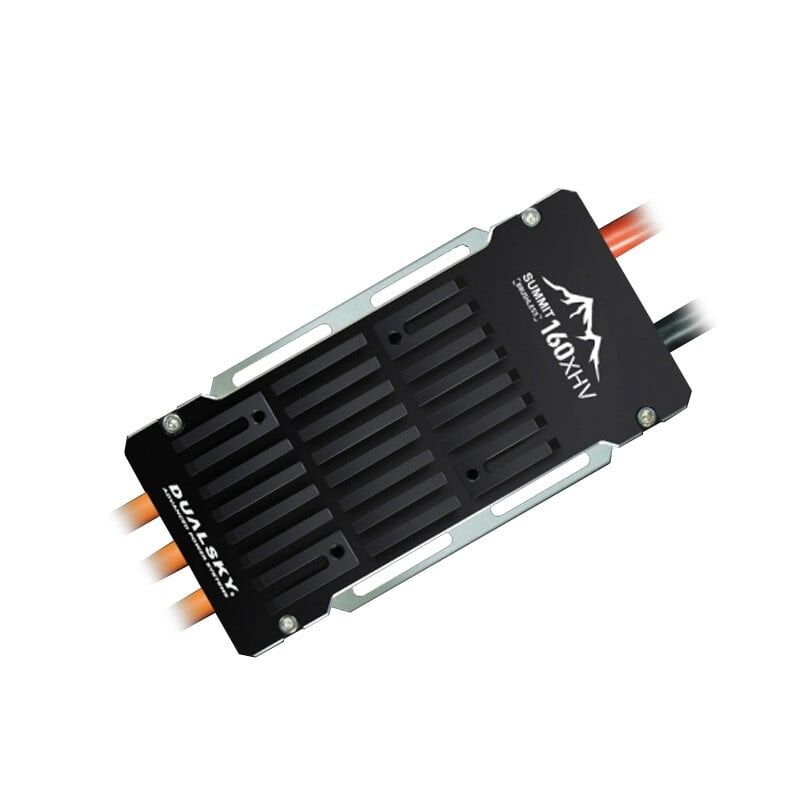

This Dualsky SUMMIT 160XHV Brushless ESC is designed for 3D aircraft or fixed-wing UAVs.

  • Designed for 3D airplanes and fixed-wing UAVs
  • New generation 32-bit ARM electric drive system
  • High performance TOLL package MOSFETs for excellent stability
  • Excellent motor drive capability, supporting GA series 28-pole motors
  • All metal CNC housing with built-in fan, also designed with an external fan fixed interface
  • Compact design with built-in capacitors
  • Multiple protection measures are implemented, throttle, voltage, current, temperature, and low RPM
  • 100% load test passed
  • Efficient driving core, abundant torque
  • Effictivley avoid sync-loss conditions
  • Supports efficient SINE wave working mode
  • Regenerative braking supported
  • Rorational direction can be set. Bidirectional operation is also supported
  • Supports a variety of telemetry protocols (SBus2, EXBus, SRXL2)
  • Flight modes can be switched by the Mode button
  • Type-C USB port for firmare updating and programming
  • Supports fixed wing govenor mode (in Beta, with subsequent firmware update)
Dimensions (L x W x D)
91.3 x 43.2 x 23.1 mm
Weight w/ wire(g)
210g
Number of Cell
5S-14S LiPo, 18.5V - 51.8V
Continuous Current(A)
160
Bursts Current(A)
210
Resistance (Ri)(mOhm)
1.2 mOhm (Ta = 25 degrees celcius)
Maximum speeds
Upto 510K RPM
Signal & frequency
PWM, upto 450Hz
Battery eliminate circuit
N/A
Motor Direction
Normal - Reversed - Bidirectional
Programming
Built-in Type-C to PC (Software: X-GOV APP & BLHeli32_Rev.Dualsky)
FC Telemetry
YES (Automatic protocol identification, protocol: SBus2, EXBus, SRXL2)
Energy Recovery
YES (Default = enable)
Brake On Stop
YES & Adjustable (Default= OFF)
Timing System
Programmable (Default=22°)
Low voltage protection
Programmable (Default=3.00V/cell)
Acceleration
Programmable (Default flight mode = Freestyle)
Overheat protection
YES(Default=140 C)
Water & dust proof
IP3X
Cooling Fan
YES, built-in a 25mm fan, external fans can be installed
Full CNC Alu. Case
YES
LED indicator
YES, flight mode and USB mode
Input Wires
10AWG, 300mm, XT90 anti-spark plug
Output Wires
10AWG, 100mm, DB6F
Signal Wire
THR: JR, 500mm TEL: JR, 500mm
Tested motors
Dualsky EA3 SE, HD3, GA MKII and DA V4series, CRS3000 MKII, CRS4000. Good compatibility with the 3rd party motors
Applications
Up to 5.8KW & 8.0KW input power, equal to 40cc to 70cc class gasoline engines. For 3D airplanes and fixed wing UAVs
SKU DSXM42281
Barcode # 6941047122819
Brand DUALSKY
