Dynamite Fuze 130A BL ESC 4WD SCT 1/8 WP

$169.99
In Stock


Calculate Shipping



Courier - Small Items - $9.50 (ETA: 5 days)
Items ship in 1-3 business days after payment confirmation.
Express - Small Items - $14.50 (ETA: 5 days)
Items ship in 1-3 business days after payment confirmation.
Pickup in store - $0.00 (ETA: 4 days)
Items ready for pickup 1-3 business days after payment confirmation.

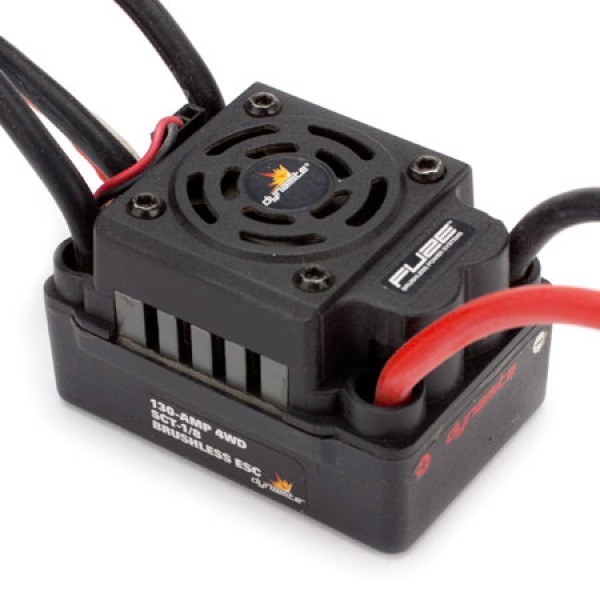

The Fuze 130A ESC from Dynamite offers a continuous current of 130A and BEC voltage of 6A.

The Fuze 130A ESC from Dynamite has a continuous current of 130A and BEC voltage of 6V. It has forward and reverse drive type and full-on resistance of 0.0004ohm. This brushless and sensorless ESC can work with 2S LiPos (up to 6000Kv), 3S LiPos (up to 4000Kv) and 4S LiPos (up to 3000Kv). The Fuze 130A is programmable and comes with a 10AWG wire guage. It has a maximum burst current of 760A. Its input voltage is 6-9 cells for NiMH and 2-4S for LiPo and LiFe batteries. It has a EC3 input connector.

(DYN4955)

  • BEC Voltage of 6V
  • 130A Continuous Current
  • Forward/Reverse Drive Type
  • Full-on Resistance of 0.0004ohm
  • EC3 Input Connector
  • Maximum Burst Current of 760A
  • Programmable
  • 10AWG Wire Guage
Forward
Yes
Reverse
Yes
Brake
Yes
Time Delay Brake
Yes
Continuous Maximum Current
130A
Input Voltage
6-12 cells NiMH - NiCd, 2-4 cells LiPo - LiFe
Motor Limit
2S LiPo - up to 6000KV, 3S LiPo - up to 4000KV, 4S - up to 3000KV
Momentary Peak Current
760A
Length
53.5mm
Width
36mm
Height
36mm
Weight
79g
BEC Voltage
6V
PWM Frequency
8kHz
Overload Protection
Yes
Full On Resistance
0.0004 ohm
SKU DYN4955
Brand DYNAMITE
