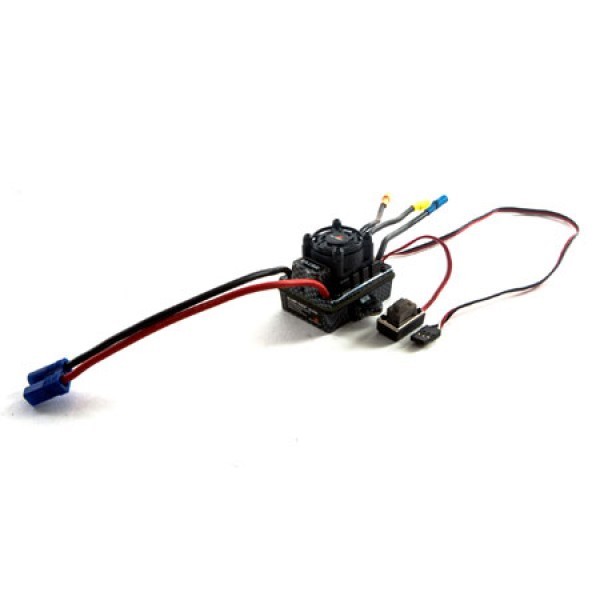

The ESC is available by itself and as a combo with a 6-pole brushless motor.

  • Easier than ever to toggle between battery chemistries
  • Easy to program via your transmitter or compact program card. No need to haul around a PC
  • Improved operation under heavy loads
  • Allows a hard mount, with servo tape and/or velcro
  • Waterproof
Forward
Yes
Reverse
Yes
Brake
Yes
Time Delay Brake
Yes
Continuous Maximum Current
45A
Input Voltage
2-3S LiPo/LiFe, 4-9 cells NiMh/HiCd
Input Connector Types
EC3
Output Connector Types
3.5mm Bullet
Motor Limit
2S LiPo - up to 6000KV, 3S LiPo - up to 4000KV
Length
1.89 in (48mm)
Width
2.2 in (56.1mm) with mounting tabs, 1.46 in (37mm) without mounting tabs
Height
1.46 in (37mm)
Weight
2.82 oz (80 g)
BEC Voltage
6V
Overload Protection
Yes
Full On Resistance
.0012 ohm
Wire Gauge
Battery 14AWG, 6 in/Motor 16 AWG, 4 in
Auto Cutoff
Yes
SKU DYNS2400
Brand DYNAMITE
