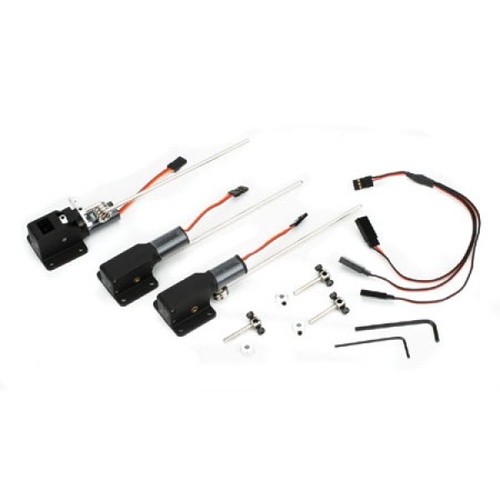

E-FLITE 15-25 TRICYCLE ELECTRIC RETRACTS EFLG230
More infoAdd the realism of functioning retracts to your 15- to 25-sized airplanes. E-flite's completely self-contained retract systems require no air tanks, complex linkages, or even extra servos. They simply need to be bolted into place and plugged into the receiver. A specially designed Y-harness is also included, allowing pilots to use a single receiver channel to control all retract units.
(EFLG230)
- Robust landing gear strut and mounting bracket
- Integrated electric motor with a micro PCB
- Built-in overcurrent protection
- Strut Diameter: 0.137 in (3.5mm)
- Aircraft Weight: 4.00 - 7.00 lb (1.80 - 3.10kg)
- Application
- Aircraft 15-25 size
- Speed
- 1.25 sec @4.8V; 1.00 sec @ 6.0V; 0.75 sec @ 7.4V
- Weight
- Main gear: 1.4 oz (39.5g) each; Nose gear: 1.7 oz (48.0g)
- Motor Type
- Electric brushed can
- Connector Type
- JR, universal
- Gear Type
- Metal
- Current Draw Idle
- 5mA
- Current Draw Stall
- 200mA
- Voltage
- 4.8V-7.4V
| SKU | EFLG230 |
| Barcode # | 605482776520 |
| Brand | E-Flite |
| Shipping Weight | 3.0000kg |
