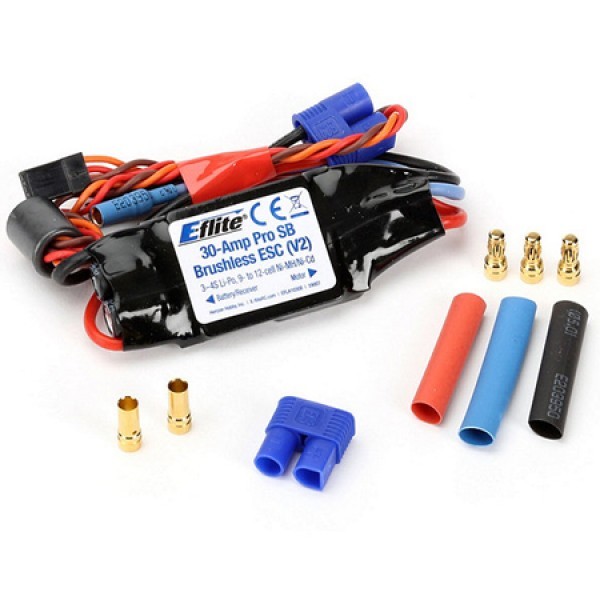

The E-flite® 30-Amp Pro Switch-mode BEC Brushless ESC (V2). This is a high-quality sensorless brushless electronic speed control with an integrated switch-mode BEC that is very lightweight and efficient. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication.

  • Up to 30 amps continuous current with proper air flow and 35 amps burst current (15 seconds)
  • 3.5A continuous current, 5V Switch-Mode BEC Circuit
  • Stronger BEC for support of most 3-axis stabilization systems
  • Drive up to 7 analog or 6 digital standard-size servos with the BEC
  • 3- to 4-cell Li-Po, 9- to 12-cell Ni-MH/Ni-Cd input voltage
  • Programmable motor braking
  • Safe power-arm mode prevents accidental starts
  • Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V) or 74% of battery starting voltage
  • Programmable throttle input range (1.1ms–1.9ms or 1.2ms–1.8ms)
  • Programmable soft start for helis and airplanes
  • Auto motor shut down if signal is lost or there is interference
  • Programmable timing—5 user-selectable ranges for use with a large variety of brushless motors
  • Pre-wired connectors—E-flite EC3™ connector on battery input and 3.5mm gold bullet connectors on motor output leads
Continuous Maximum Current
30A
Input Voltage
3–4S Li-Po or 9–12 Ni-MH/Ni-Cd
Input Connector Types
16 AWG leads with E-flite EC3 Connector
Output Connector Types
16 AWG leads with 3.5mm Gold Bullet Connectors
Momentary Peak Current
35A (15 sec)
Length
51.0mm (2.00 in)
Width
28.0mm (1.10 in)
Height
8.70mm (0.35 in)
Weight
31.0 g (1.10 oz)
Wire Gauge
16 AWG
SKU EFLA1030B
Barcode # 605482079164
Brand E-flite
Shipping Weight 0.5000kg
