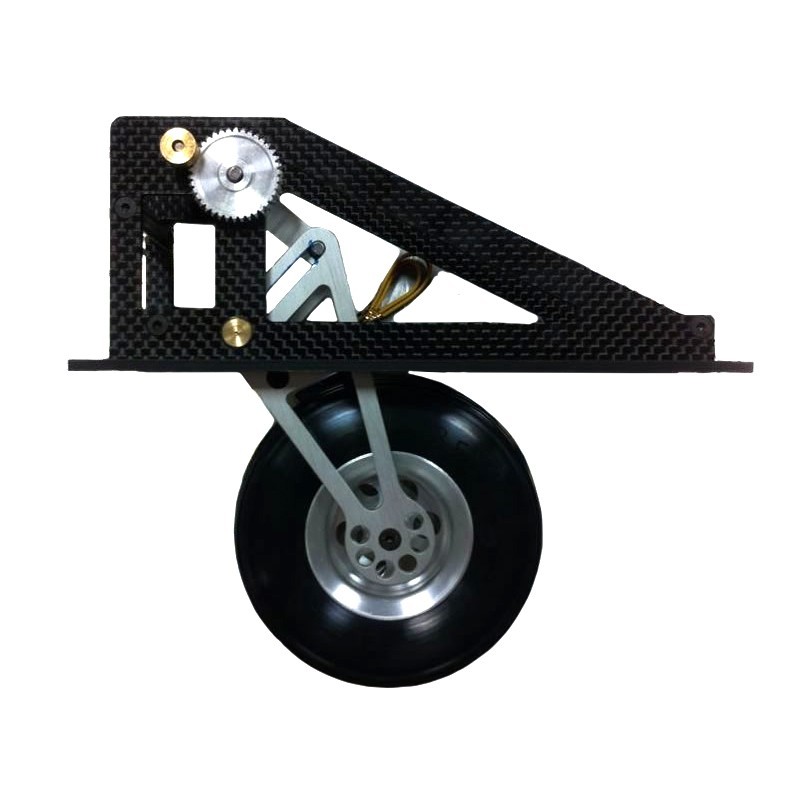

This retract system is designed for the Hangar 9 ASW 20.

Current Draw - Idle
5mA
Current Draw - Operating
150mA (maximum)
Operating Voltage Range
4.8–6.0V
Aircraft Weight
2.0–9.1 kg (4.4–20 lb)
Unit Weight
Main gear 278 g (9.75 oz) each
Wheel Diameter
88.9mm (3.50 in)
Pulse Width Trigger Points - Down
1.331ms
Pulse Width Trigger Points - Up
1.690ms
Operation with FM
22ms frame rate, 5V signal
Operation with DSM
20ms frame rate, 3.3V signal
Sequence Time @ 4.8V
1.25sec
Sequence Time @ 6.0V
1sec
SKU EFLG530S
Barcode # 605482563106
Brand E-flite
Shipping Weight 1.0000kg
